01/2007 9 www.U-LineService.com
2175BEV/2175BEVOL Beverage Center

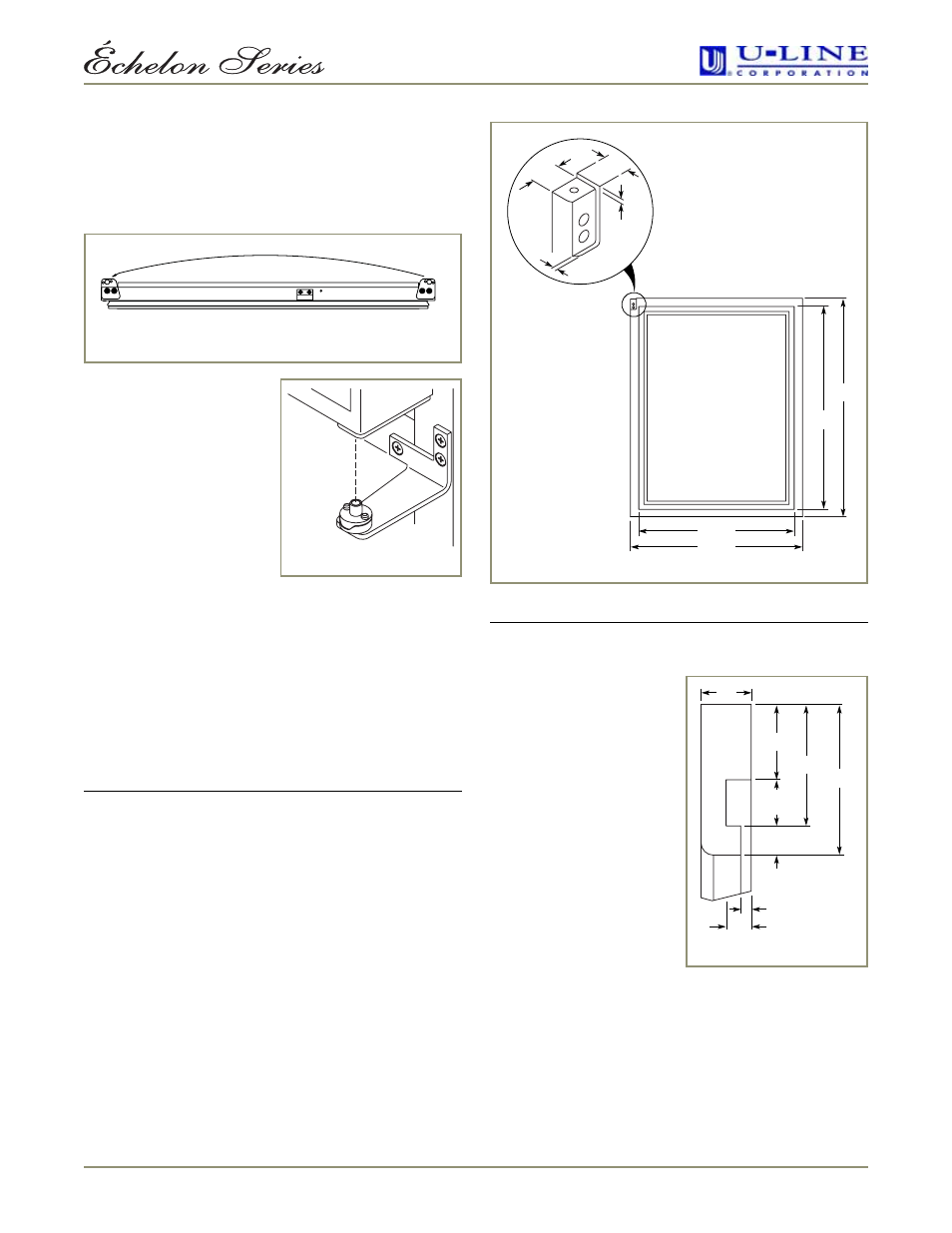

5. If door has not been removed from cardboard
packaging, carefully cut tape and remove from
cardboard first. With bottom of door facing up, remove
pivot plate (2 screws), flip over, and remount on
opposite side of door (see Figure 11). Be sure angled
side of plate faces center.
6. Holding door upright with
top of door tilted forward,
place hole of door pivot
plate on bottom hinge
screw pin (see Figure 12).
7. Tilt top of door into
position in top hinge and
install top hinge screw pin.
8. Install plastic screw plugs
removed in Step 2 in old
hinge holes (3 each, top
and bottom).
Overlay Frame
(2175BEVOL Units Only)
Frame Preparation
An overlay frame covers the door frame to give a built-in
appearance. Appropriate hardware and a copy of these
instructions will be included in the unit.
IMPORTANT
The thickness of the wood overlay frame must be 3/4".
The door frame must not weigh more than 20 lbs.
1. Create an overlay frame to the dimensions shown in
Figure 13.
IMPORTANT
Rear View of wood frame for right-hand hinge shown.
Use mirror image for left-hand hinges.
2. Typical routing dimensions
are shown in Figure 14.
Figure 11
ULIN_0822_A
Figure 12
27-3/4"
30"
21-1/2"
23-3/4"
Rear View
of
Wood Frame
1/8"
13/16"
1/8"
Relief Notch for Pivot Plate
(Right Hand Hinge Shown)
3/4"
Figure 13
2-1/4"
1-13/16"
1-1/8"
11/16"
(Ref.)
7/16"
(Ref.)
5/32"
3/4"
3/8"
Figure 14
