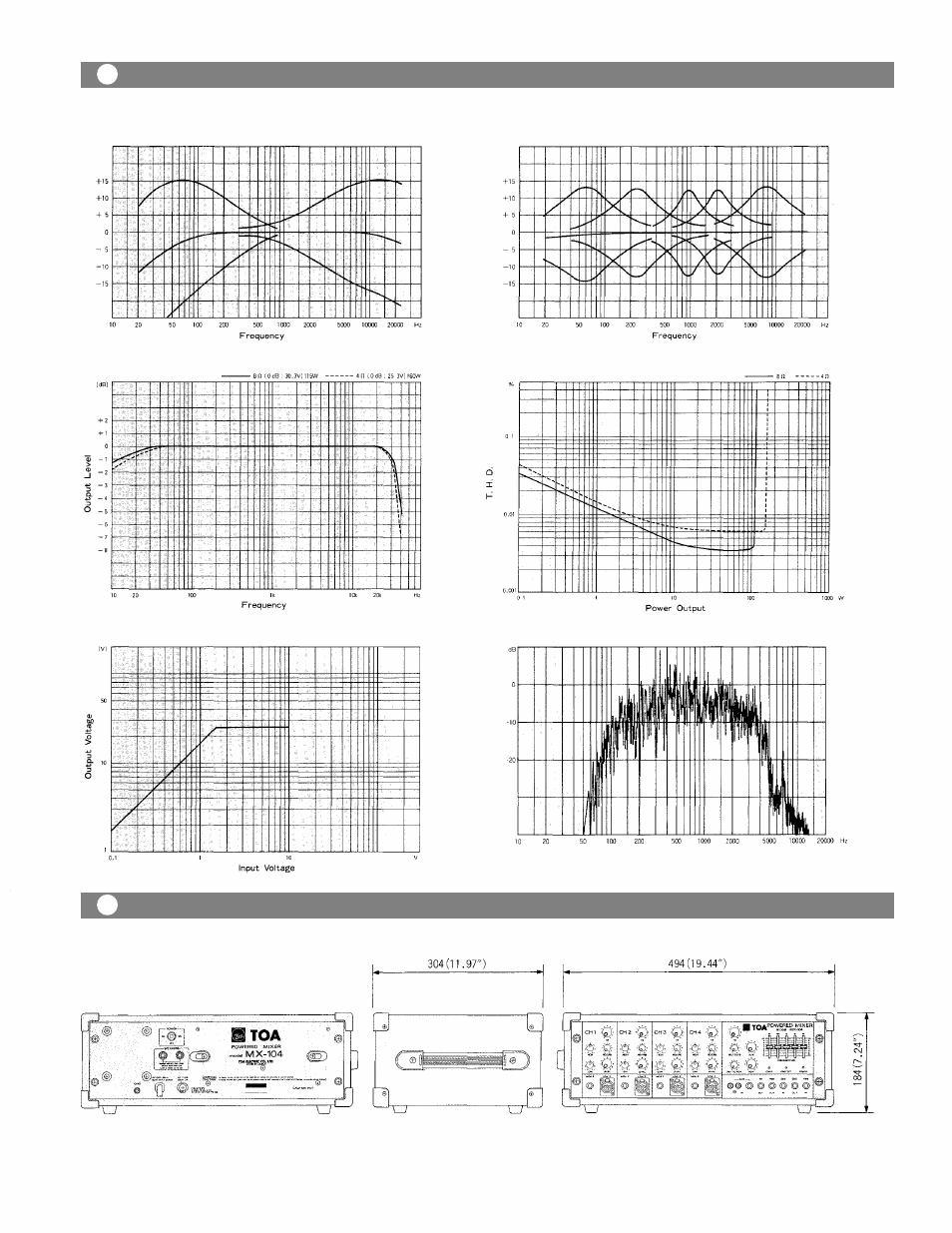

LOW Z HIGH Z IN & INPUT EQ (LEVEL Control)

HIGH Z IN. & INPUT EQ (se t at "5")

GEQ

POWER AMP POWER BAND WIDTH

POWER AM P T.H.D. vs POWER OUTPUT

POWER AM P COMPRESSOR

REVERBERATION FREQUENCY RESPONSE

— 9 —

Characteristics Diagrams

Appearance
