Connections and initial set up, The front of your player recorder – Technicolor - Thomson DTH8640 User Manual
Page 6
6
Connections and initial set up

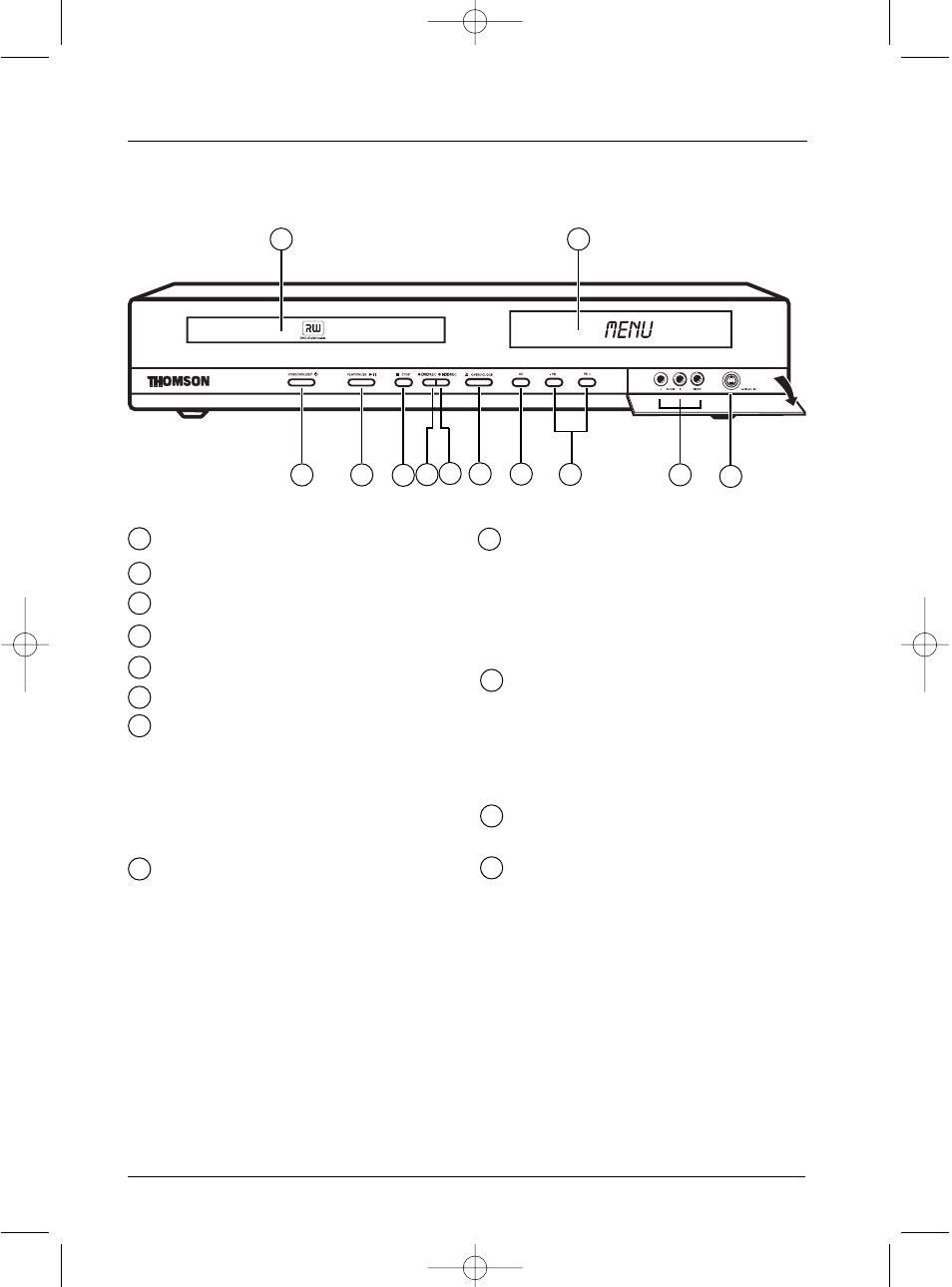

The front of your player recorder
7
8
10
9
4
3
5
1
12
11
On / Off
Playback or freeze frame.
Stops the playback or recording.
DVD REC
- To record to a
DVD R/RW.
HDD REC
- To record to the hard disc.
Open and close the drawer.
To select the audiovisual sources
(appliances connected to the AV sockets):
AV 2
- Appliance connected to
SCART IN
(satellite received, decoder, etc.).
AV 3
- AUDIO/VIDEO sockets on the
front panel.
Change channel or skip chapter.
The AUDIO-VIDEO sockets (inputs)
allow the viewing or copying of your video
sequences from a camcorder or any other
AV device that provides a composite video
signal and analogue stereo sound.
Note:View the images using the
AV
key.
S-Video socket (input) to connect a
camcorder or any other S-Video device.
Note: do not forget to connect the audio cables
since the S-Video socket handles only images
and not sound. View the images using the
AV
key.
Displays your DVD recorder’s modes of
operation.
Disc tray.
