SECTION 4: KNOW YOUR GARDEN TRACTOR

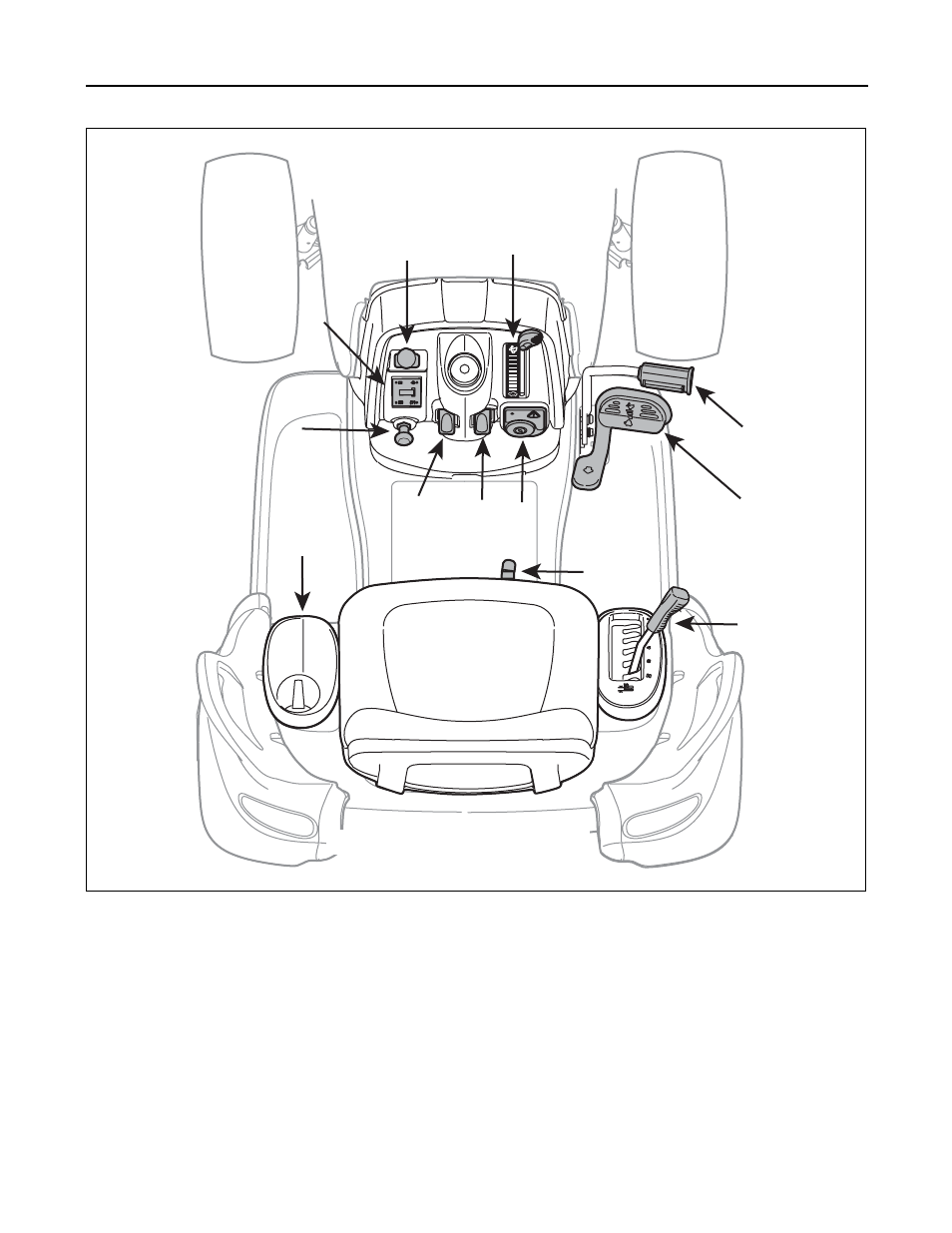

Figure 3

NOTE:

Any reference in this manual to the RIGHT or LEFT side of the tractor is observed from operator’s position.

A

Systems Indicator/Hour Meter

H

Ignition Switch

B

PTO (Power Take-off) Knob

I

Brake Pedal

C

Choke Control

J

Drive Pedal

D

Cup Holder

K

Deck Lift Lever

E

Throttle Control Lever

L

Seat Adjustment Lever

F

Parking Brake Button

G

Cruise Control Button

A

B

E

I

J

K

C

F

G H

L

D

NOTE:

Steering Wheel not shown for clarity.
