TL-R460 Cable/DSL Router User Guide

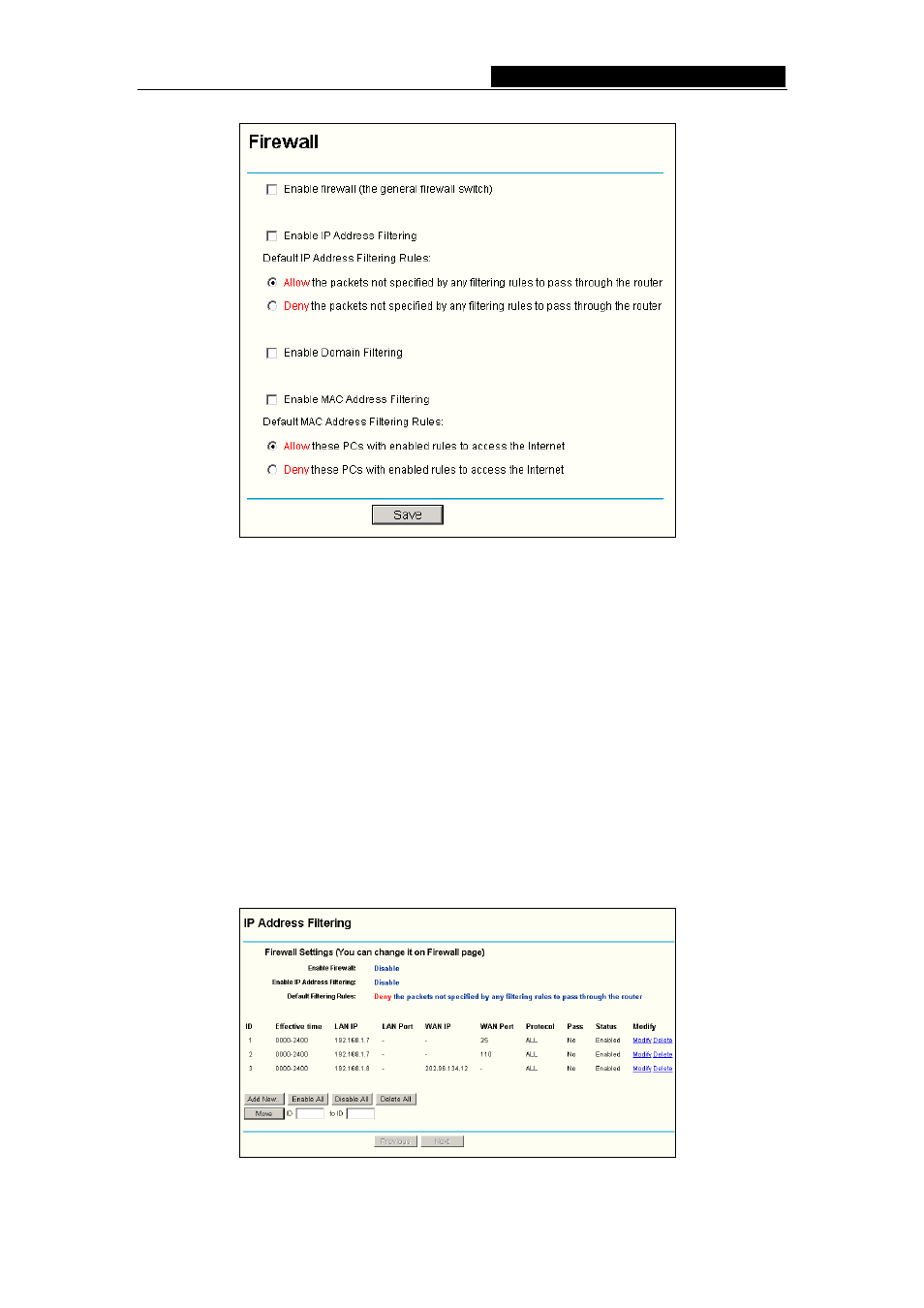

Figure 5-19 Firewall Settings
Enable Firewall - The general firewall switch is on or off.
Enable IP Address Filtering - Set IP Address Filtering is enabled or disabled.
There are two default filtering rules of IP Address Filtering, either Allow or Reny
passing through the router.
Enable Domain Filtering - Set Domain Filtering as enabled or disabled.
Enable MAC Filtering - Set MAC Address Filtering is enabled or disabled. You can
select the default filtering rules of MAC Address Filtering, either Allow or Reny
accessing the router.
5.7.2 IP Address Filtering
The IP Address Filtering feature allows you to control Internet Access by specific users
on your LAN based on their IP addresses. The IP Address Filtering are set on this page,
figure 5-20:
Figure 5-20 IP Address Filtering
- 27 -
