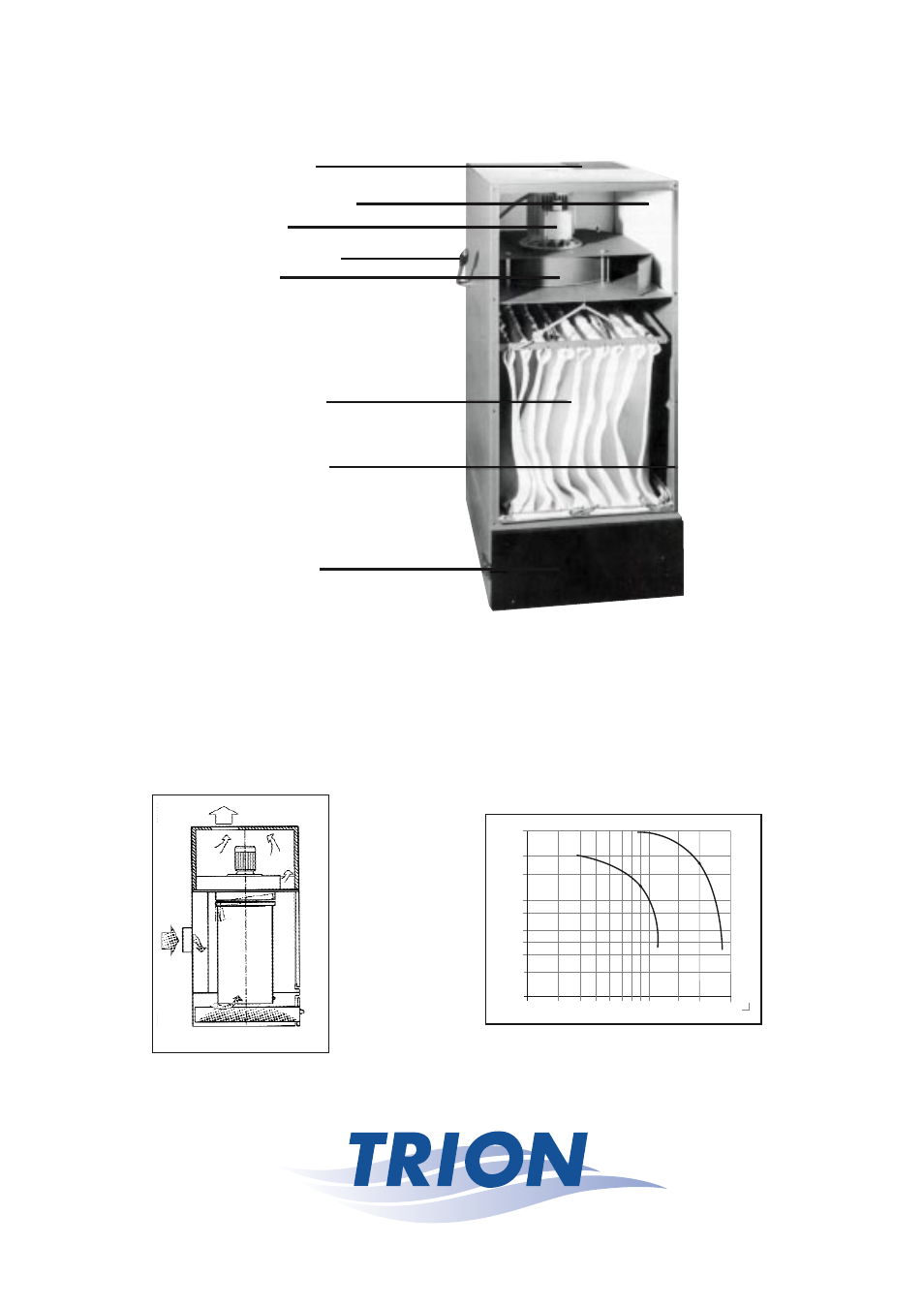

Model: MV 9 / MV20

Sound Insulation
Motor

Hand Shaker
Fan

Bag Filter

Filter Inlet

Filter Box

HOW IT WORKS

The air enters at the rear of the unit and hits a metal plate where large particulate drop into the filter

box. The air is turned through 180º before it encounters the bag filter. This system with inertial

eperation means only the fine particulate impinges onto the bag. The dust is removed from the bag by

periodically hand shaking the bag where the collected dirt again falls into the filter box. The clean

air is then exhausted out through the outlet grill at the top of the unit.

4 5 6 7 8 910

15 20

30x

3000

2000
1500

1000

800
600
500
400
300

200

100m

MV 20

MV 9

Airflow against Resistance Chart

Outlet Grill
