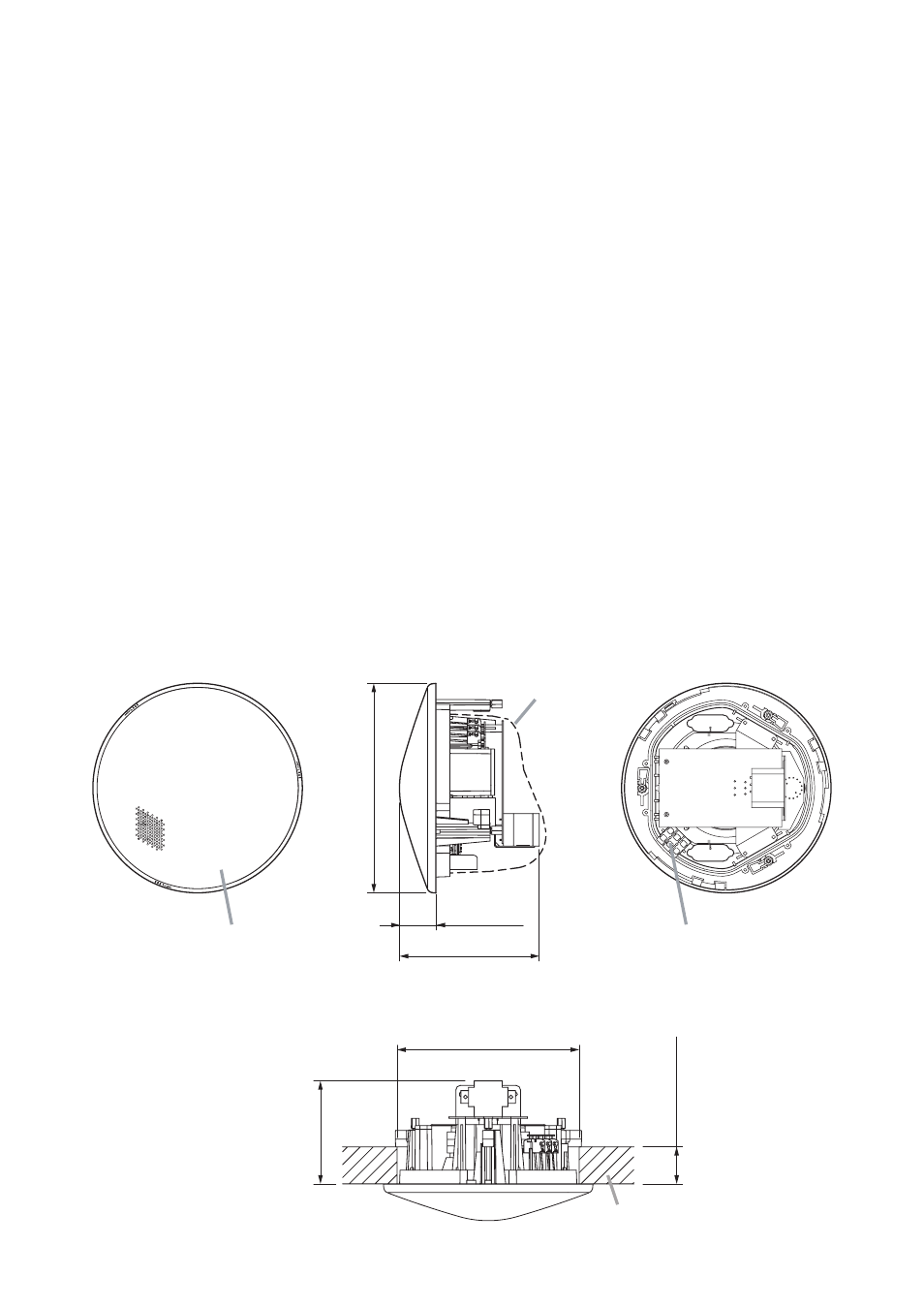

4. NOMENCLATURE AND DIMENSIONS
Max.
37 (1
29
/ 64
)
Ceiling panel
Mounting hole: ø200 (7 7 / 8 )
Max. 113 (4
29
/ 64
)
ø
230 (9
1
/ 16
)
41 (1 39 / 64 )
154 (6 1 /
16
)
Push-in terminal Front grille (accessory)
Dust cover
[Front]
[Ceiling mounting]
[Side] [Rear]
Unit: mm (inches)
2. GENERAL DESCRIPTION
The F-2352SC is a 2-way, flush-mounted ceiling speaker that offers a wide frequency range and high-quality
sound output. Use of optional mounting hardware permits versatile mounting to match a wide range of
applications and installation locations.
3. FEATURES
• A rear-open type 2-way speaker system employing a speaker element designed to provide a wide frequency
range.
• Wide-dispersion flush-mount ceiling speaker design employs unique acoustic construction to realize a wide
area of coverage. Uniform sound output levels are achievable not only directly under the speaker, but also
over a wide radius.
• Because the speaker is provided with both low- and high-impedance operating capability, it can be used in
many different applications. Front panel-mounted input selector switch permits easy verification and change
of current impedance settings, even after installation.
• Easy installation. Can be quickly and accurately mounted to ceilings and walls.
• Rotating front grille can be installed quickly and conveniently.
• Attractive exterior design specially created by an interior designer blends naturally with any architectural
space, enhancing the immediate area's sense of harmony.
• Use of the optional HY-BC1 permits exposed speaker installation.
