30

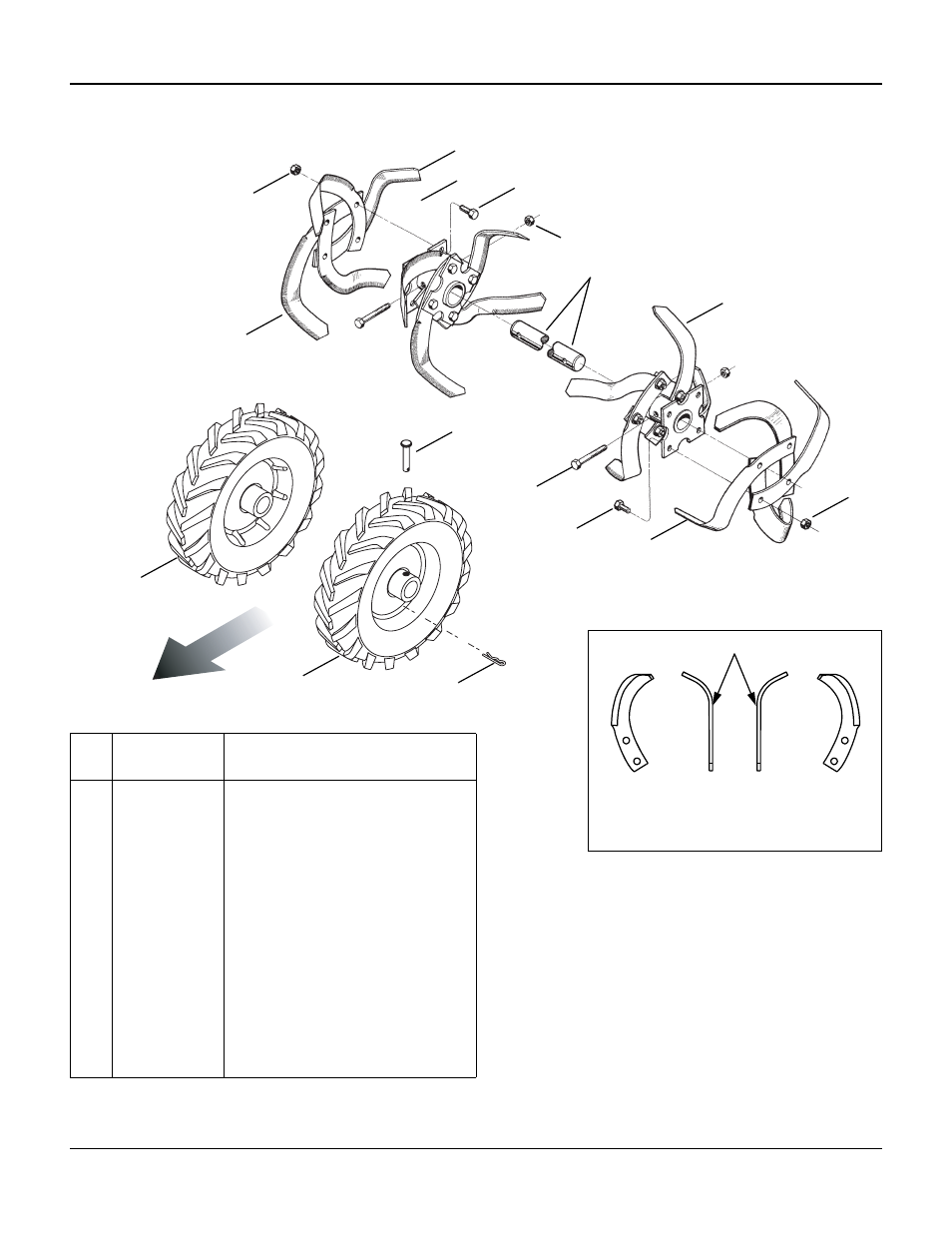

FORWARD
MODELS 640C & 644A
REF
NO.
PART NO. DESCRIPTION
1 710-0514 Hex Hd. Screw, 3/8-16 x 1, Grade 5
2 GW-50049-02 Single Bolo Tine - Left Hand
3 712-3000 Hex Lock Nut, 3/8-16
4 710-0347 Hex Hd. Screw, 3/8-16 x 1-3/4
5 GW-50049-01 Single Bolo Tine - Right Hand
6 1915075 Tine Holder (A)
1916747 Tine Holder (B)
7 1917486 Wheel & Tire Ass’y — Left/Right Side(B)
734-04162 Wheel & Tire Ass’y — Left Side Only (A)
8 734-04161 Wheel & Tire Ass’y — Right Side Only (A)
9 GW-9380 Clevis Pin, .312" x 1-3/4"
10 GW-9338 Hair Pin Cotter
— GW-1901 Bolo Tine Replacement Set (Incl. eight
right-hand tines, eight left-hand tines and
required hardware. (A) (B)
9
9
10
7, 8
3
2
TINE SHAFT
1
4
5
1
3
3
5
7
2
(A) For Model 640C
(B) For Model 644A
Hold Tines With Blunt End Toward You
RIGHT-HAND TINE LEFT-HAND TINE
NOTE: Identify Left and Right sides of tiller by standing in
operator position and facing direction of forward travel.
