16 UV-SVN03D-EN
A
B
C
D
E F
C
B
Installation

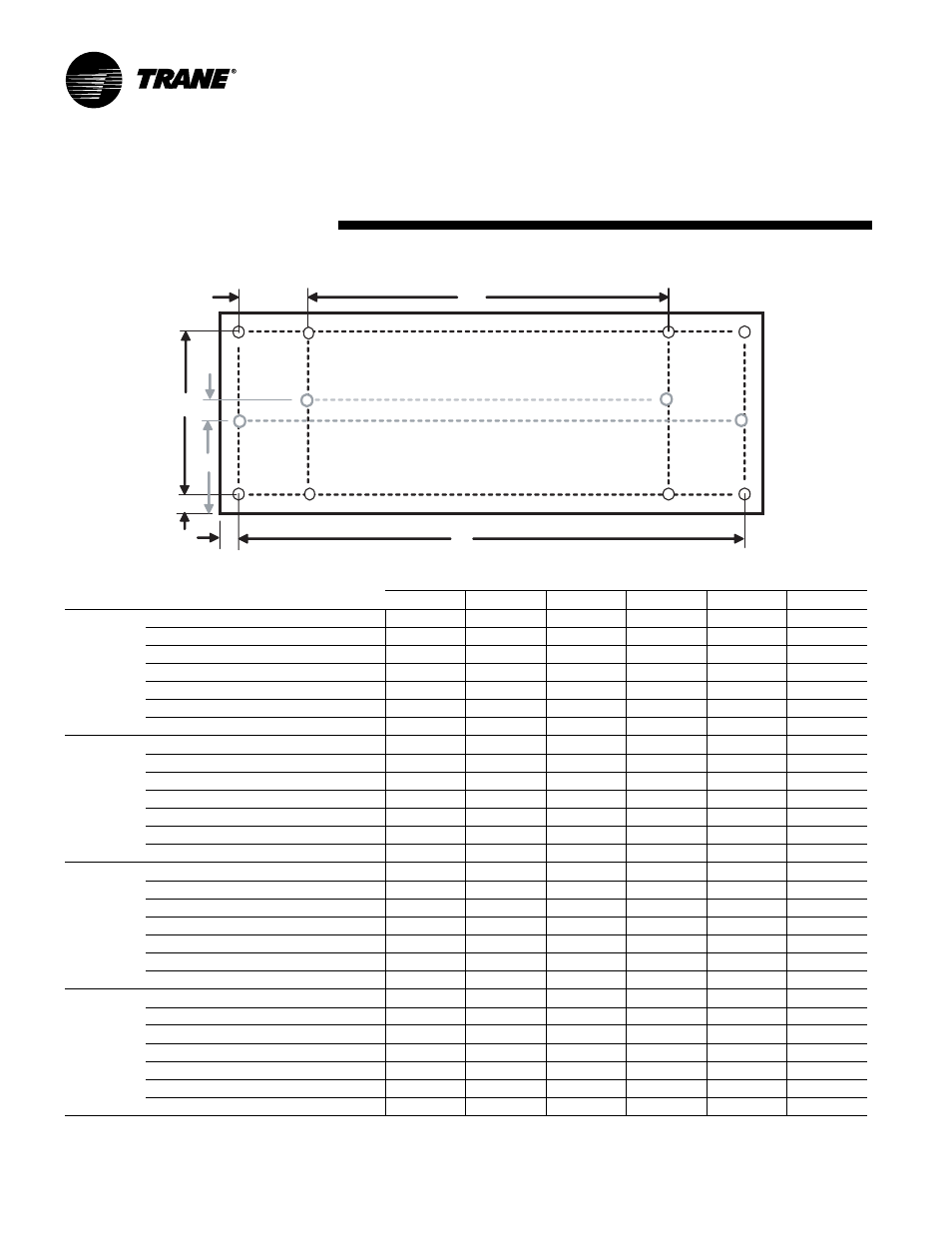

Figure 3: Mounting hole location
A B C D E F
075 Standard Unit (no Falseback) 1.31 13.50 2.75 66.39 10.38 45.64
Standard falseback 1.00 2.13 26.00 67.00 10.00 47.00
29" stepdown falseback 1.00 2.13 24.44 67.00 10.00 47.00
28" stepdown falseback 1.00 2.13 23.44 67.00 10.00 47.00
27" stepdown falseback 1.00 2.13 22.44 67.00 10.00 47.00
26" stepdown falseback 1.00 2.13 21.44 67.00 10.00 47.00
25" stepdown falseback 1.00 2.13 20.44 67.00 10.00 47.00
100 Standard Unit (no Falseback) 1.31 13.50 2.75 78.39 10.38 57.64
Standard falseback 1.00 2.13 26.00 79.00 10.00 59.00
29" stepdown falseback 1.00 2.13 24.44 79.00 10.00 59.00
28" stepdown falseback 1.00 2.13 23.44 79.00 10.00 59.00
27" stepdown falseback 1.00 2.13 22.44 79.00 10.00 59.00
26" stepdown falseback 1.00 2.13 21.44 79.00 10.00 59.00
25" stepdown falseback 1.00 2.13 20.44 79.00 10.00 59.00
125 Standard Unit (no Falseback) 1.31 13.50 2.75 90.39 10.38 69.64
Standard falseback 1.00 2.13 26.00 91.00 10.00 71.00
29" stepdown falseback 1.00 2.13 24.44 91.00 10.00 71.00
28" stepdown falseback 1.00 2.13 23.44 91.00 10.00 71.00
27" stepdown falseback 1.00 2.13 22.44 91.00 10.00 71.00
26" stepdown falseback 1.00 2.13 21.44 91.00 10.00 71.00
25" stepdown falseback 1.00 2.13 20.44 91.00 10.00 71.00
150 Standard Unit (no Falseback) 1.31 13.50 2.75 102.39 10.38 81.64
Standard falseback 1.00 2.13 26.00 103.00 10.00 83.00
29" stepdown falseback 1.00 2.13 24.44 103.00 10.00 83.00
28" stepdown falseback 1.00 2.13 23.44 103.00 10.00 83.00
27" stepdown falseback 1.00 2.13 22.44 103.00 10.00 83.00
26" stepdown falseback 1.00 2.13 21.44 103.00 10.00 83.00
25" stepdown falseback 1.00 2.13 20.44 103.00 10.00 83.00
