Texas Instruments TPA6204A1 User Manual
Page 15
TPA6204A1EVM PCB Layers
3-3
Schematic, Parts List, and PCB Layers
3.3
TPA6204A1EVM PCB Layers
The following illustrations depict the TPA6204A1EVM PCB layers and
silkscreen. These drawings are not to scale. Gerber plots can be obtained from
the product folder on www.ti.com under Related Products − Development
Tools.

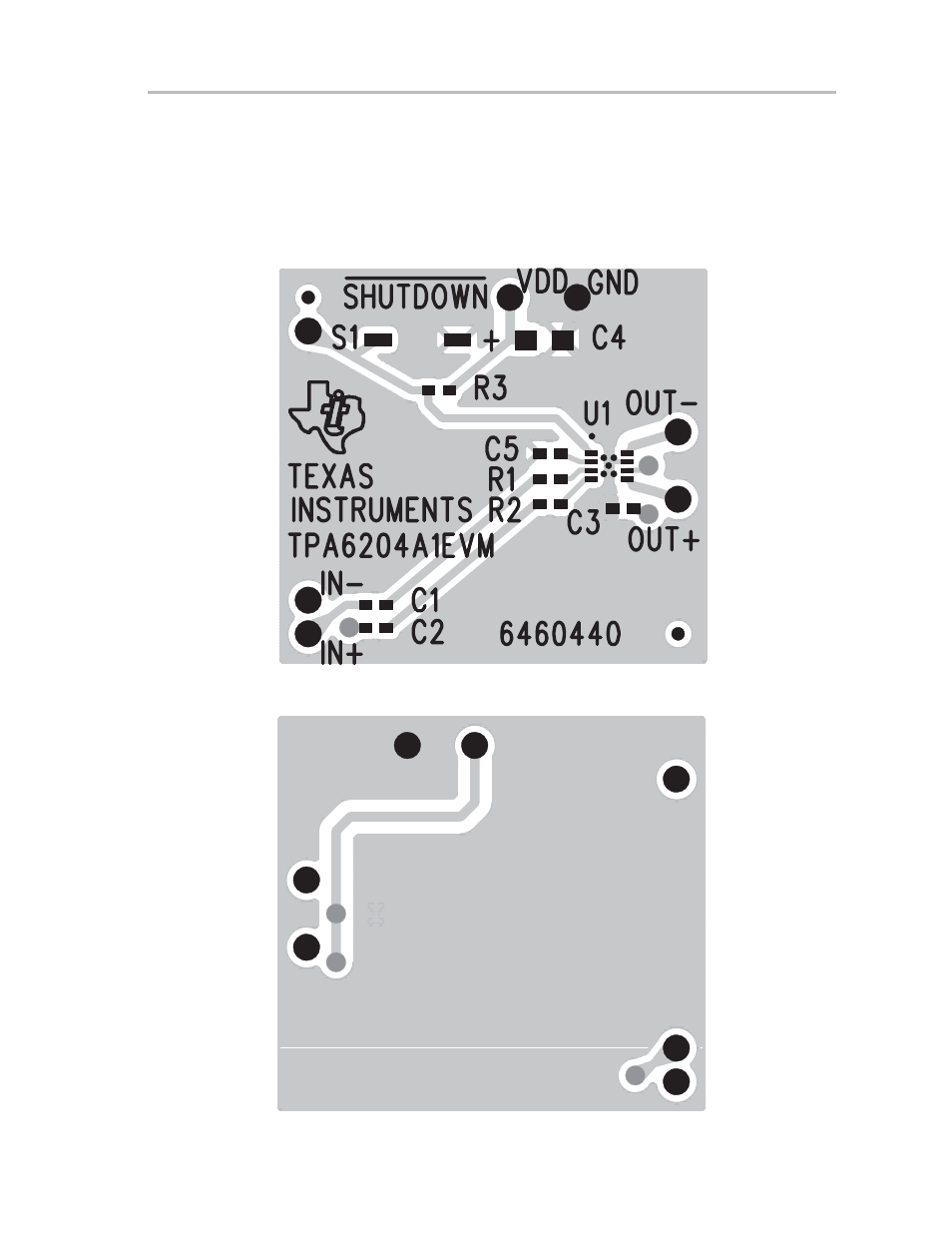

Figure 3−2. TPA6204A1 EVM Top Layer
Figure 3−3. TPA6204A1 EVM Bottom Layer
