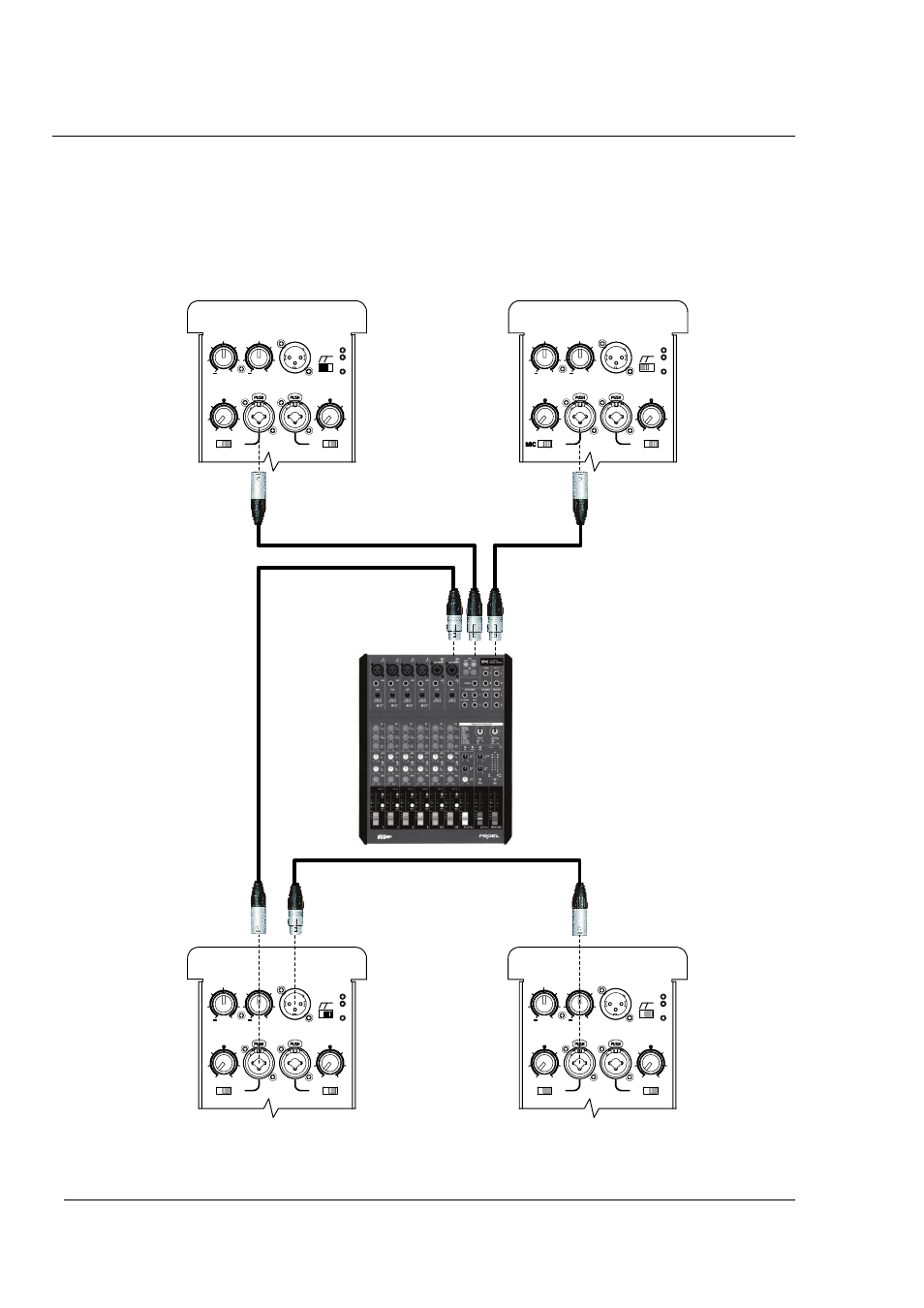

Stereo PA with powered wedge monitors
On larger gigs a separate monitor system provides good quality foldback for individual performers
and helps to keep the PA sound less cluttered. Select the BASS MODE ‘A’ or ‘B’ position as
required on the Milan monitors.
