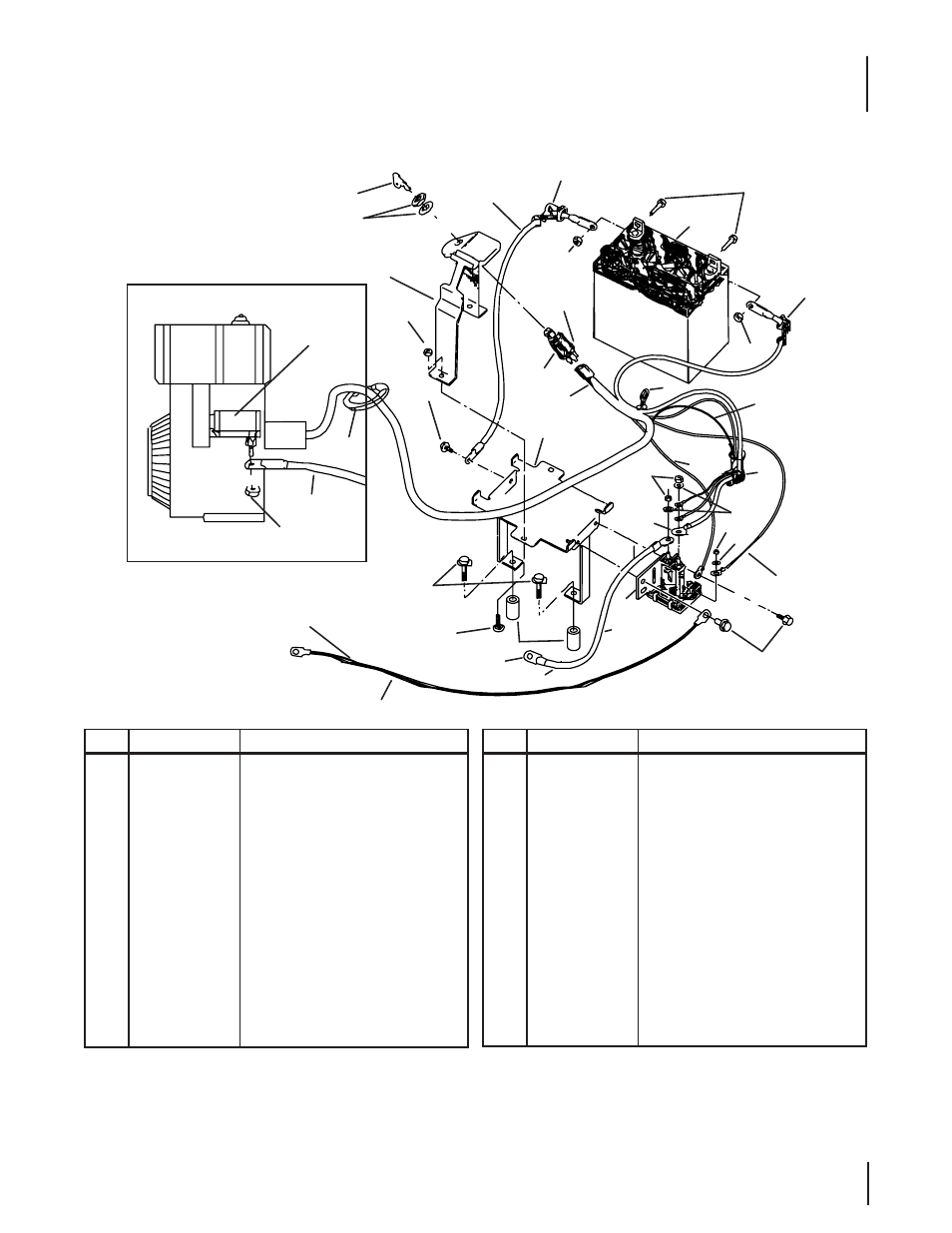

680 Series Electric Start System
6
7
5
22
Starter
Motor
20
16
22
3
18
8
24
23
Ground Cable to
Engine Base
16
To Starter Motor
Starter Cable
11
1
3
Starter
Selenoid
Active
Wire (Red)
14
15
12
13
2
Ground
Wire
19
21
6
Ground
Terminal
Negative
Battery
Cable
2
9
4
10
2
9
17
Starter Switch
Wire (Red)
Ref. Part Number
Description
1.
GW-96515
Battery Cable
2.
GW-97020
Terminal Insulating Boot
3.
710-0599
TT-Screw, 1⁄4-2 x 1⁄2"
4.
1186309
Hex Bolt, 1⁄4-20 x 5⁄8"
5.
GW-2614
Battery Hold-down Clamp
w/ Att. Key Switch Plate
6.
725-0267B
Key Switch (Incl. 2 Keys, Ref. 7)
7.
725-0201
Ignition Key
8.
1186073
Carriage Bolt, 1⁄4-20 x 1-1⁄4"
9.
712-3006
Hex Nut, 1⁄4"-20
10.
725-1706A
12-Volt Battery
11.
GW-96514
Starter Solenoid
12.
736-0119
Lockwasher, 5⁄16"
Ref. Part Number
Description
13.
1186211
Hex Nut, 5⁄16 "-24
14.
736-0147
External Tooth Lockwasher
15.
GW-9853
Hex Nut, #10-32
16.
GW-96510
Solenoid Cable
17.
GW-2557
Battery Bracket
18.
710-3022
HH Cap Screw, 3⁄8-16 x 2.75"
19.
GW-9265
Plastic Tie
20.
725-0157
Plastic Tie
21.
725-04346
Wire Harness
& Connecting Terminal Assembly
22.
1186389
Hex Locknut, 1⁄4"-20
23.
1901202
Ground Cable
24.
750-0748
Spacer
