PARTS INFORMATION

[email protected]

Page 9

TBC-255PF

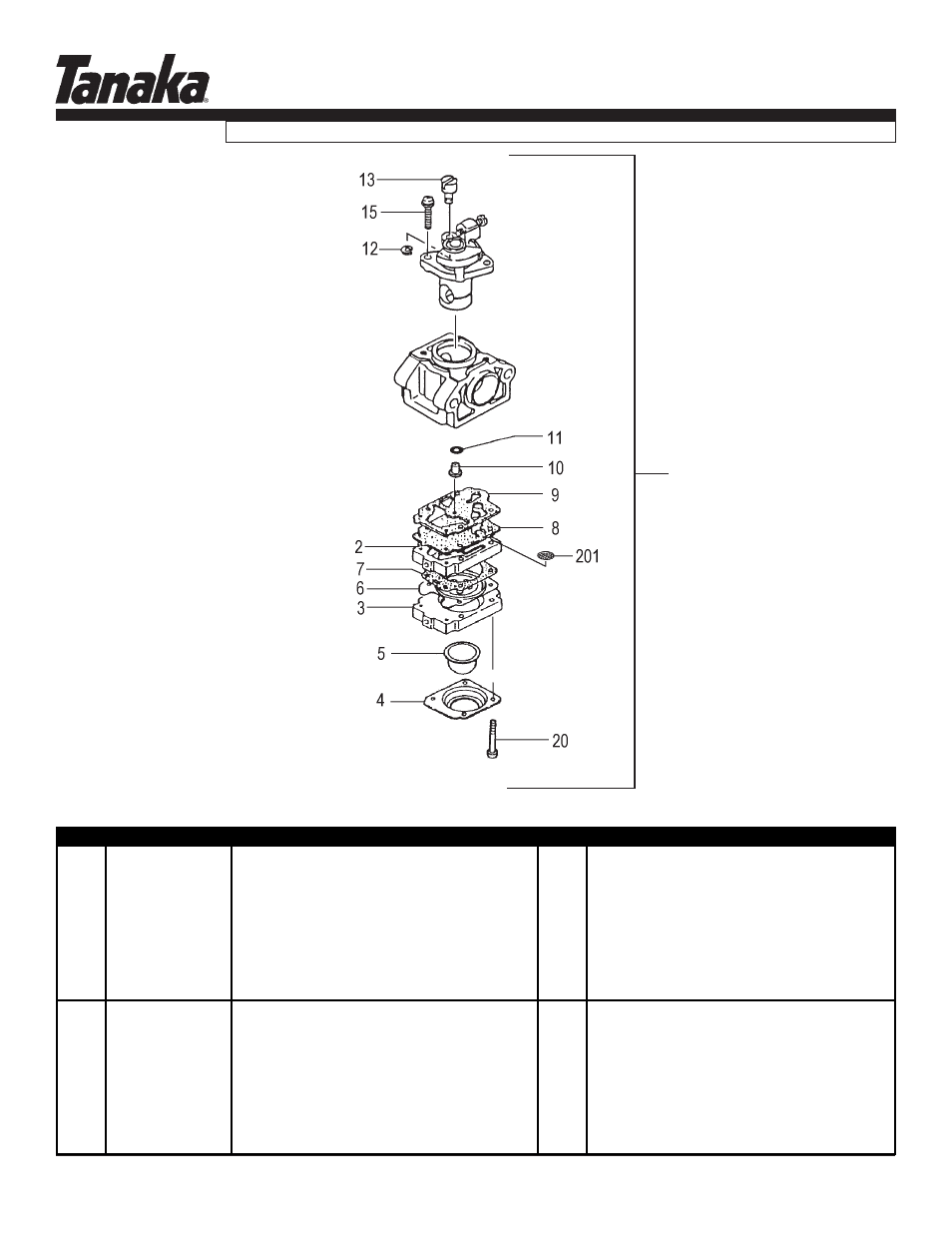

CARBURETOR • FIGURE 7

0

ITEM PART NUMBER

DESCRIPTION

QTY

COMMENTS

7-0

4550307090

CARBURETOR SET

1

Includes gasket

7-2

5752515380

BODY,PUMP

1

7-3

4422515180

PUMP,PRIMING

1

7-4

4762515120

COVER,DIAPHRAGM

1

7-5

44725108200

BULB,PRIMING

1

7-6

~ ~ ~

DIAPHRAGM,METERING

1

Included in Carb Kit #650.25140.90

7-7

~ ~ ~

GASKET,DIAPHRAGM

1

(items not available individually)

7-8

~ ~ ~

DIAPHRAGM,PUMP

1

7-9

~ ~ ~

GASKET,PUMP

1

7-10

599200BW33

MAIN JET,#33.5

1

7-11

55025100200

O-RING

1

7-12

48925100200

RING,STOP

1

7-13

53925120200

SWIVEL

1

7-15

54825140200

SCREW,THROTTLE SET

2

7-20

5482515120

SCREW,SET

4

7-201 57825007200

SCREEN,INLET

1
