8

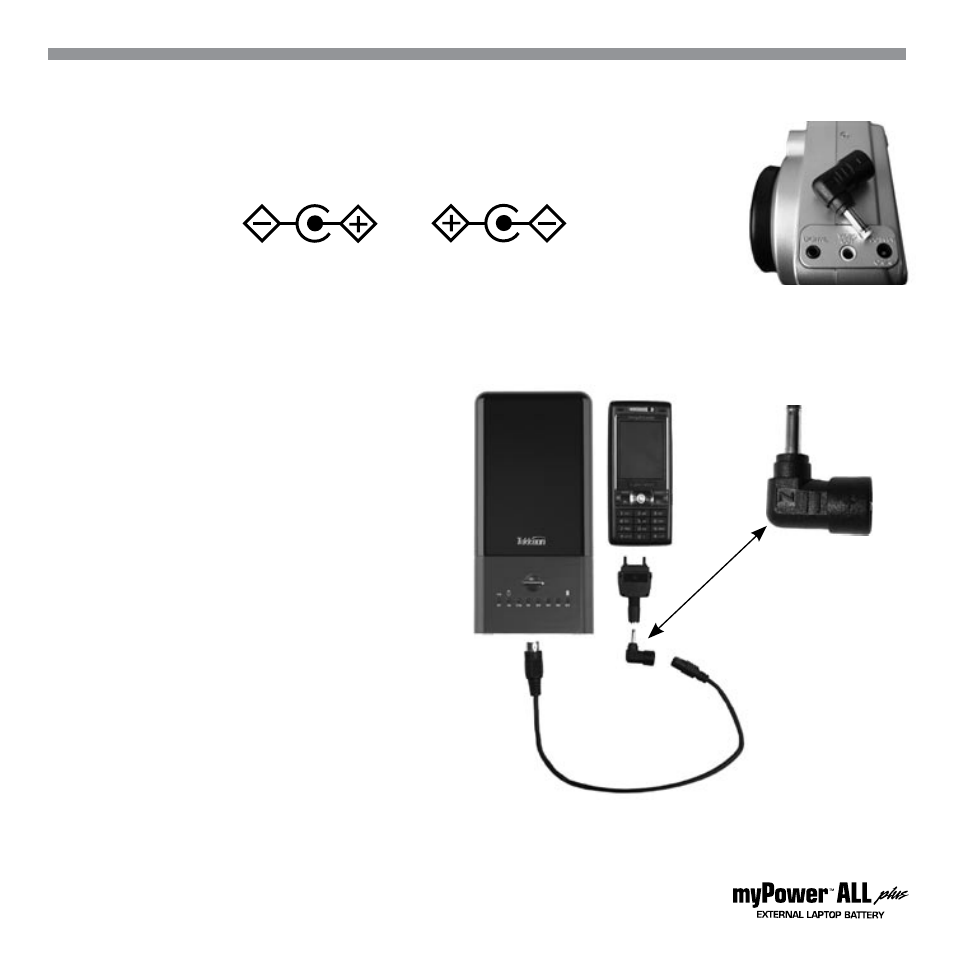

Select/Connect the Adapter Plug
1. Select the adapter plug that fits securely into the power jack on your portable device.
2. Locate the polarity symbol on your device in the area around the power connector jack:
WARNING: myPower ALL Plus supports Center Positive polarity only. If your device has a Center Negative
polarity, do not power the device with myPower ALL Plus; contact [email protected]
for assistance.
3. Connect the adapter plug to the power output
cord (but not the device).
If you are using a UA-xxx adapter (rather than
PA-xxx), you must insert the PA-L34 (“Z”)
adapter that came with your myPower ALL Plus
between the adapter cord and UA-xxx adapter
as shown.
NOTE: If you change the adapter plug while the
power adapter cord is connected to myPower
ALL Plus, the voltage setting will reset to the
lowest voltage, which is the default voltage
setting.
Center Negative Center Positive
PA-L34 (“Z”)
Adapter for
myPower ALL Plus
