T E C H N I C A L E N G I N E E R I N G S P E C I F I C A T I O N
A i r P u r i f i c a t i o n S y s t e m s

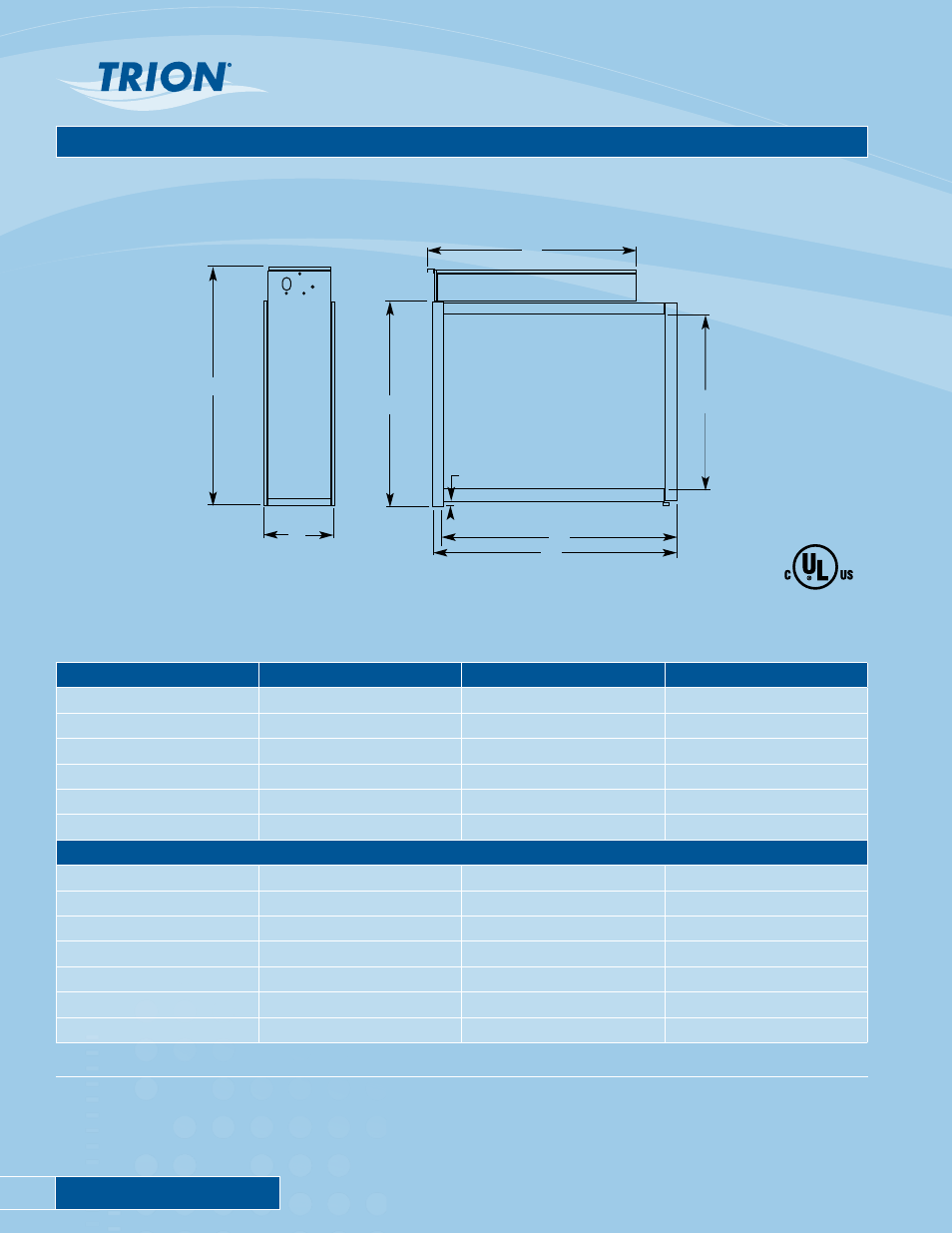

HE Plus 1400/200 Dimensions
HE Plus 1400/200 Product Information
Model
HE PLUS 1400—16x25
HE PLUS 1400—20x20
HE PLUS 2000—20x25
Part No.
455601-001
455603-001
455600-001
Max. Capacity
1400 CFM (2379 m
3
/hr)
1400 CFM (2379 m
3
/hr)
2000 CFM (3398 m
3
/hr)
Cell Weight
(2) 10 lbs. (4.5 kg) each
(2) 9 lbs. (4.1 kg) each
(2) 12 lbs. (5.4 kg) each
Unit Weight
34 lbs. (15.4 kg)
35 lbs. (15.9 kg)
40 lbs. (18.2 kg)
Electrical Input
120 V, 50 Hz / 60 Hz, 1 ph
120 V, 50 Hz / 60 Hz, 1 ph
120 V, 50 Hz / 60 Hz, 1 ph
Electrical Output
2.5 MADC
2.5 MADC
3.2 MADC
Dimensions — inches (mm)
A
20 1 /4 (514)
24 1/4 (616)
24 1/4 (616)
B
13 7/8 (352)
17 7/8 (454)
17 7/8 (454)
C
16 15/ 16 (430)
20 15/16 (532)
20 15/16 (532)
D
22 1/2 (572)
19 (483)
22 1/2 (572)
E
24 7/8 (632)
21 3/8 (543)
24 7/8 (632)
F
7 1/8 (181)
7 1/8 (181)
7 1/8 (181)
G
21 7/16 (545)
18 5 /8 (473)
21 7/16 (545)
A
B
C
D
E
F
G
9/16
