6
TANNOY iwsa500-D
4 . 3 R e a r P a n e l

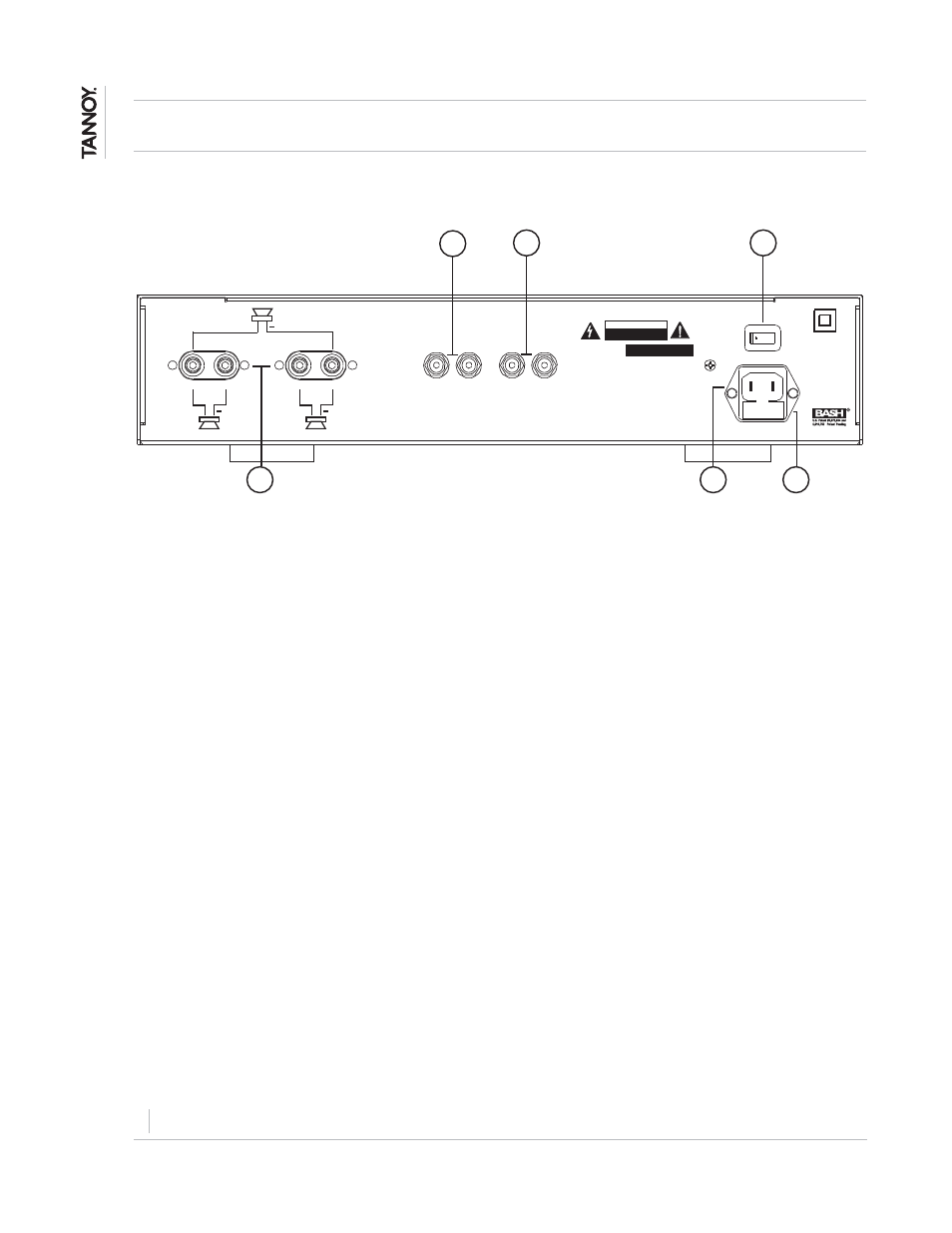

Figure 2: Rear Panel
OUTPUT 1 LINE IN LINE OUT
OFF ON
5A 120V~60HZ
T5AL 250V
CAUTION:
FOR CONTINUED PR OTECTION
AGAINST RISK OF FIRE, REPLACE
ONLY WITH SAME TYPE FUSE AND RATING .
ATTENTION:
UTILISER UN FUSIBLE DE RECHANGE
DE MEME TYPE ET CALIBRE.
OUTPUT 2
+ +
+
1
4 x Gold plated binding posts to allow the connection of speaker wires. A full description can be found on page 7.
1. Output / speaker connections
2 x RCA connectors for an unbalanced input signal.
2. Line in connectors
2 x RCA connectors for an unfiltered output signal.
3. Line out connectors
Turns mains power on or off.
4. Power switch
5. AC power connector
Pull out to remove fuse. Replace with same type and rating of fuse.
6. Fuse holder
2 3 4
5 6
CAUTION
ATTENTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
