10 Setup
Table 2.2: Physical specifications
Size 340 Ч 60 Ч 270 mm
Weight 3.4 kg
Operating temperature 0 to 45 °C
Storage relative humidity 5 to 90 %
2.3 Rear panel connections

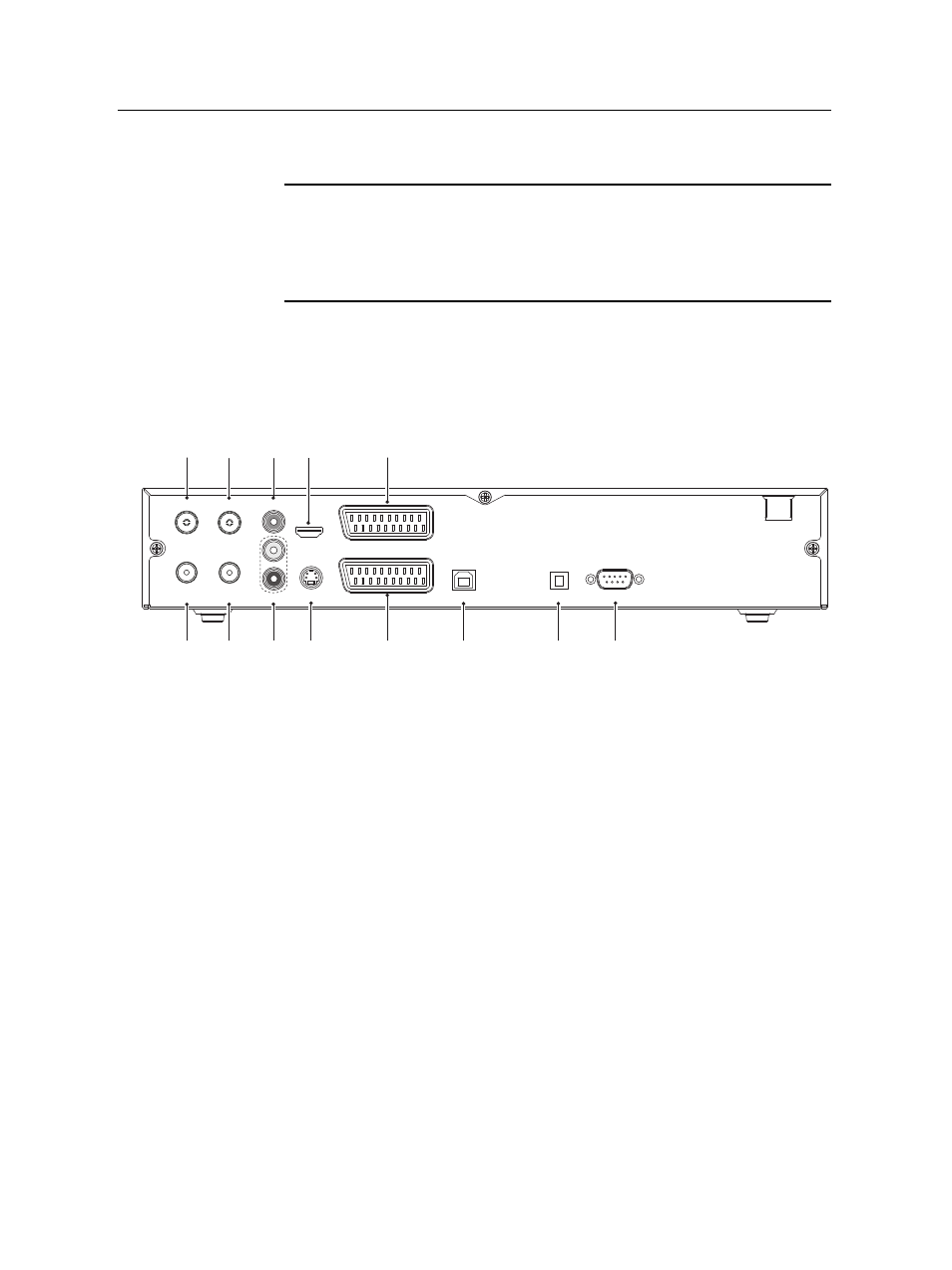

The TF 500 PVRc has a wide range of connections on the back.
RS-232 S/PDIF VCR USB
TV
RF LOOP
1 OUT
CABLE 1 IN CABLE 2 IN
RF LOOP
2 OUT
VIDEO
S-VIDEO AUDIO
HDMI
R
L
1
2
3
4
5
6
7
8
9
10 11 12 13
Check what connections your television set has in comparison
with the digital receiver.
1 CABLE 1 IN Cable broadcasting signal input socket for
the first tuner.
2 RF LOOP 1 OUT Cable broadcasting signal output
socket through the first tuner.
3 CABLE 2 IN Cable broadcasting signal input socket for
the second tuner.
4 RF LOOP 2 OUT Cable broadcasting signal output
socket through the second tuner.
5 VIDEO Composite video output socket for the television
set. (yellow)
6 AUDIO L/R Stereo audio output socket for the television
set or the audio system. (white/red)
