Remote Control & Panel Description

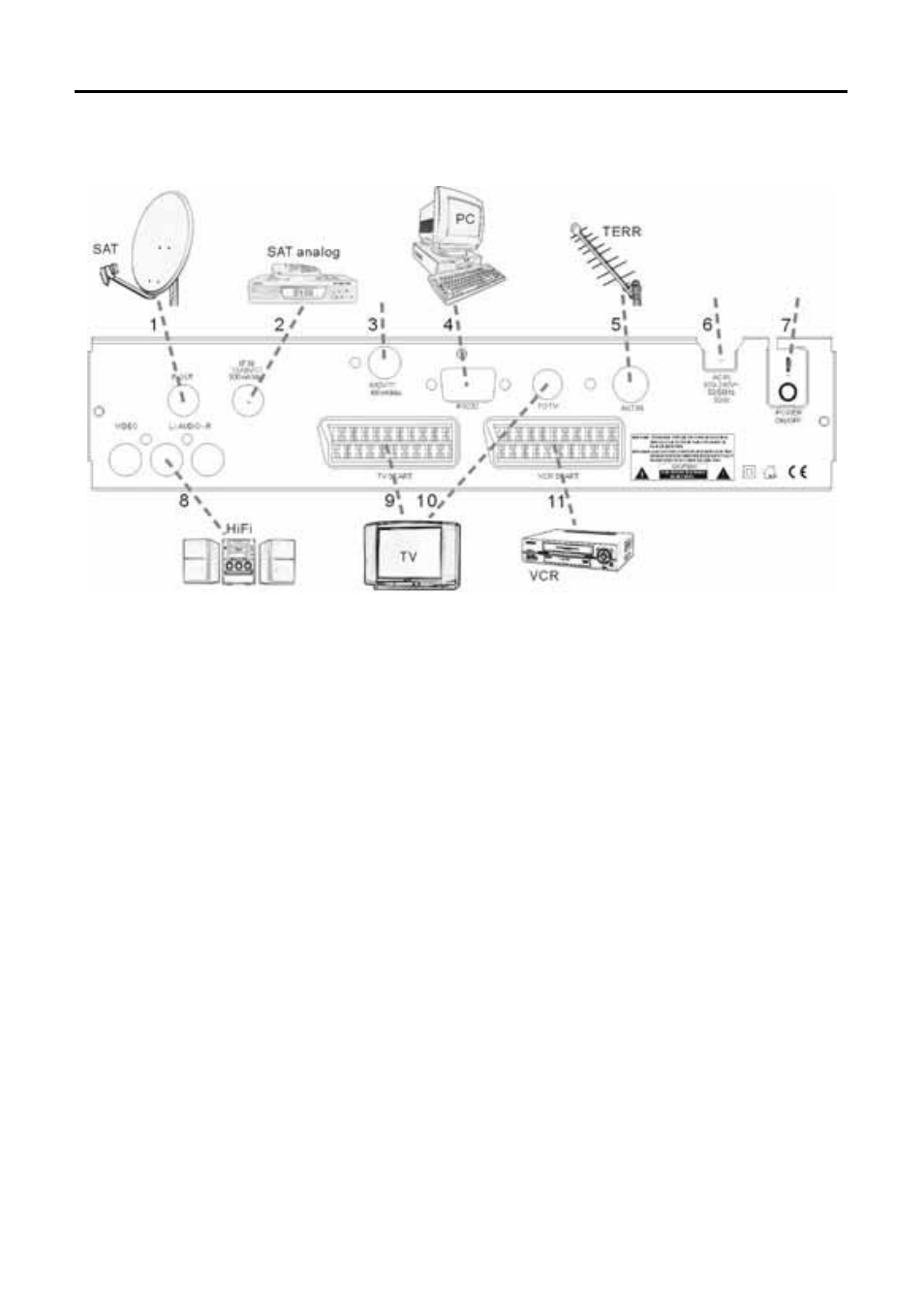

1.2 Rear Panel Description

1. IF OUT:

Satellite

output

for

cascading to other devices

Note:

The operation of another receiver at the same time is only possible
with limited channel selection.

2. IF IN:

Satellite

input.

3. RS-232:

Serial Port allowing software upgrades.

4. ANT IN:

Connect the antenna of TV to Aerial IN.

5. AC IN:

Mains

input

cable.

6. POWER ON/OFF:

Allows to completely switch off the receiver.

7. VIDEO / AUDIO:

HiFi outputs for stereo set or monitor.

8. TV SCART:

Output SCART for the connection to a TV set.

9. TO TV:

Output

TV.

10. VCR SCART:

Output SCART for the connection to a VCR set.
