Troy-Bilt J860 - Manual (Page 15)

15 s
ectiOn
6 — M
aintenance
& a
djustMents

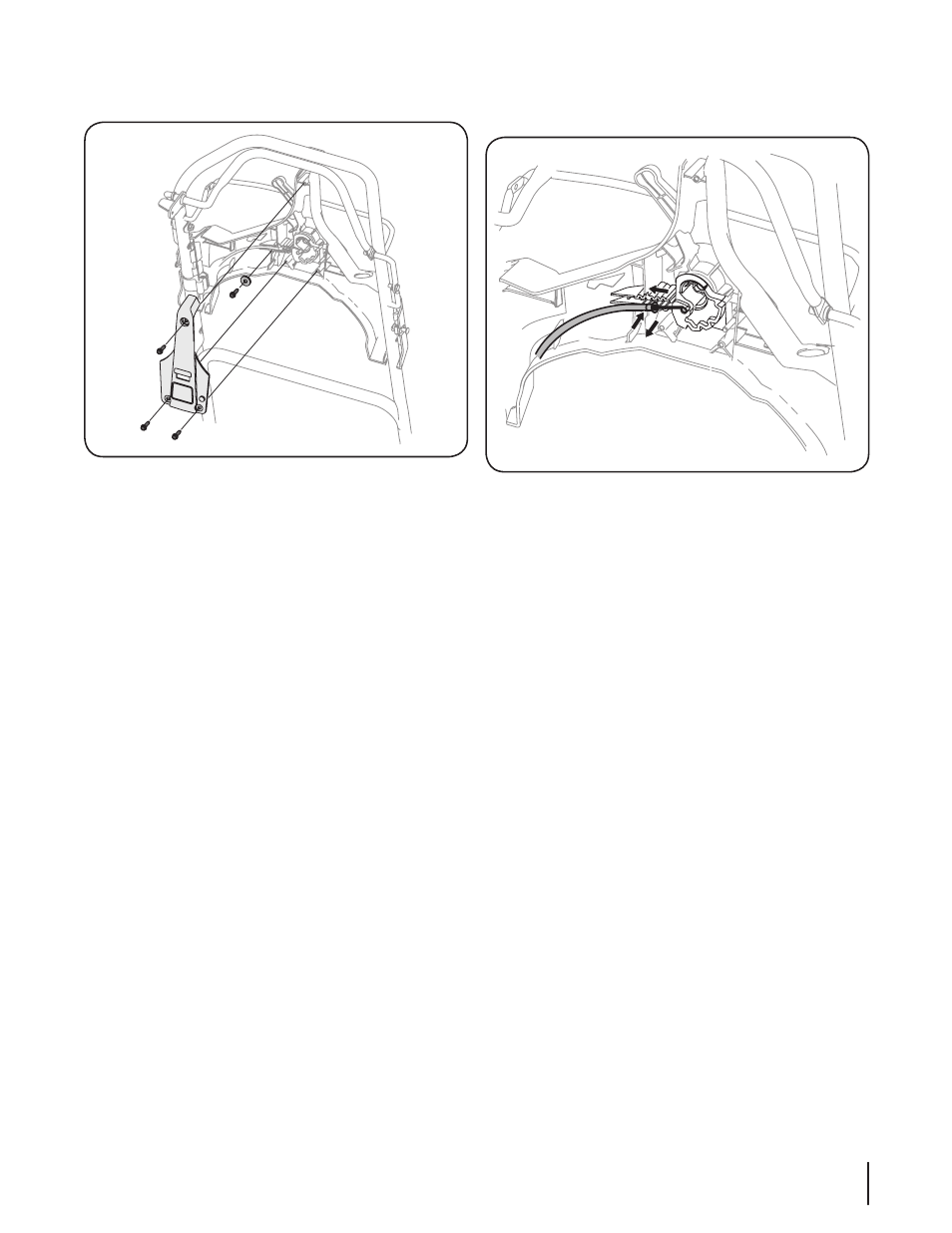

Remove back cover of speed control housing by removing 5.
the three screws securing it to the housing. See Fig. 6-4.
Remove screw and flat washer securing cable. See Fig. 6-4. 6.
NOTE: Make sure to take note of which slot in housing
cable is in.
Using a pair of needle nose pliers or similar tool, move 7.
eyelet in cable only one slot to the left in housing as shown
in Fig. 6-5.
NOTE: Moving eyelet to the left speeds unit up; moving it
to the right slows it down.
Replace screw and washer removed earlier. Reassemble
8.
back of housing. Reattach battery harness assembly to the
speed control housing, making sure to snap the tab on the
harness into the slot on the housing. See Fig. 6-3. Secure
with the three screws removed earlier.
Figure 6-5
Figure 6-4
