PARTS INFORMATION
[email protected] Page 2
TED-262HS

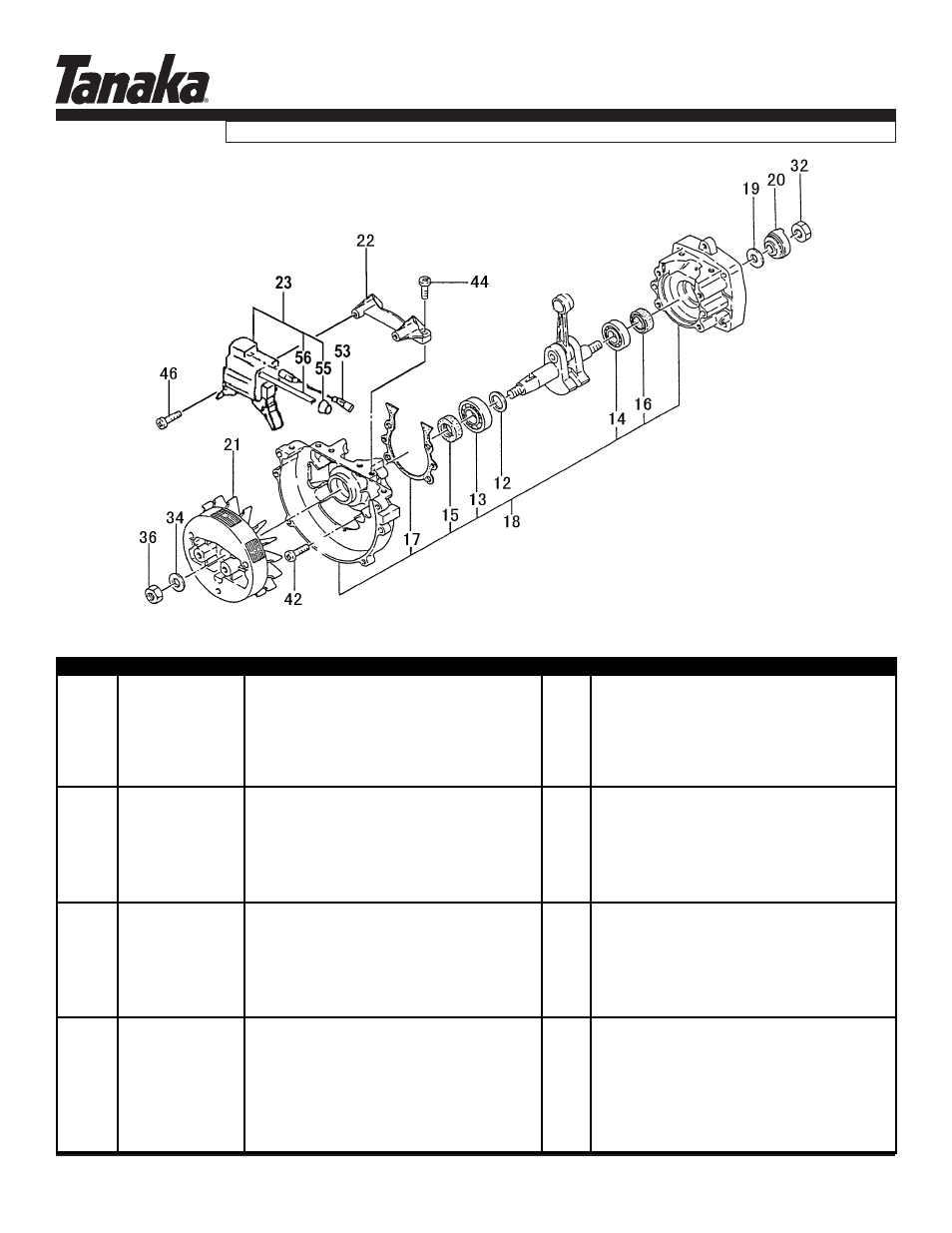

CRANKCASE, IGNITION COIL, FLYWHEEL • FIGURE 2
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
2-12 07102007200 SHIM,15.2X20X.05 1
2-12 07102007210 SHIM,15.2X20X.10 1
2-12 07102007220 SHIM,15.2X20X.15 1
2-12 07111600230 SHIM,16X21X.20 1
2-12 07111600240 SHIM,16X21X.30 1
2-13 99961600200 BEARING,BALL,#6002 1
2-14 99961600115 BEARING,BALL,6001 C3 1
2-15 99966152564 SEAL,OIL,UD15257 1
2-16 99966122240 SEAL,OIL,#12227 1
2-17 0900060120 GASKET,CRANKCASE 1
2-18 07201620900 CRANKCASE,ASS'Y 1 Includes bearings, seals and gasket
2-19 35910112203 WASHER,CLUTCH B 1
2-20 79801630200 PULLEY,STARTER 1
2-21 1552172080 ROTOR,MAGNETO 1
2-22 1650162V200 PLATE,COIL HOLDING 1
2-23 1672054790 COIL,IGNITION 1
2-32 99101080011 NUT,8 1
2-34 99200080011 WASHER,8 1
2-36 99101080011 NUT,8 1
2-42 99461050304 BOLT,HEX,5X30S 4
2-44 99414050161 SCREW,5X16/S 2
2-46 99416040186 SCREW,WS,4X18 2
2-53 1780160080 CORD 1
2-55 56020517200 CAP,RUBBER 1
2-56 1782054420 LEAD,HIGH TENSION 1
