Toastmaster E17UAC-20 - Manual (Page 2)

T
oastmaster E17UAC-20 Aluminum Full Size Non-Insulated Heater
/
Pr
oofer
Toastmaster ® 5600 13th Street, Menominee, MI 49858 • www.toastmastercorp.com
Toll Free: 1-800-338-9886 • Telephone: 1-906-863-4401 • Fax: 1-906-863-5889
INTENDED FOR COMMERCIAL USE ONLY. NOT FOR HOUSEHOLD USE.
Toastmaster, in line with its policy to continually improve its product,
reserves the right to change materials or specifications without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements,
additions, or replacements for previously purchased equipment.
SPECIFICATIONS:
SERVICE CONNECTIONS:
• Unit provided with 6 foot detachable cord and plug.
• Removable console consisting of blower,
three-way toggle switch, running lights to indicate
heater (holding) or proofing mode, stainless steel
water reservoir.
• Element controlled by 180 degrees thermostat.
1500 Watts in heating mode.
1500 Watts in proofing mode.
DOOR SWING:
• Door swings 270 degrees to the recessed side
of the cabinet
PACKING SIZE:
74” High, 28” Wide, 40” Deep
(1880 mm High, 711 mm Wide, 1016 mm Deep)
SHIPPING WEIGHT:
140 Pounds, FOB Menominee, MI 49858
DIMENSIONS:
Height Width Depth
Exterior 66- 1 / 2 ” 27- 5 / 8 ” 31- 5 / 8 ”
CAPACITY:
18”x26” Full Size 12”x20”x2- 1 /
2
”
Heater/ Sheet Pans Food Service Pans
Proofer
17 34
Spacing 3” 3”
Amp Draw 120/1 208/3 240/1 240/3
L1 14 n/a n/a n/a
ELECTRICAL:
INSTALLATION:
Allow four inches on each side and back of unit for
ventilation of heater/proofer.
• Also available in 15 amps.
Model # E17UAC-INS-15
12.5 amps - NEMA 5-15P
E17UAC-20
Aluminum Full Size Non-Insulated Heater / Proofer

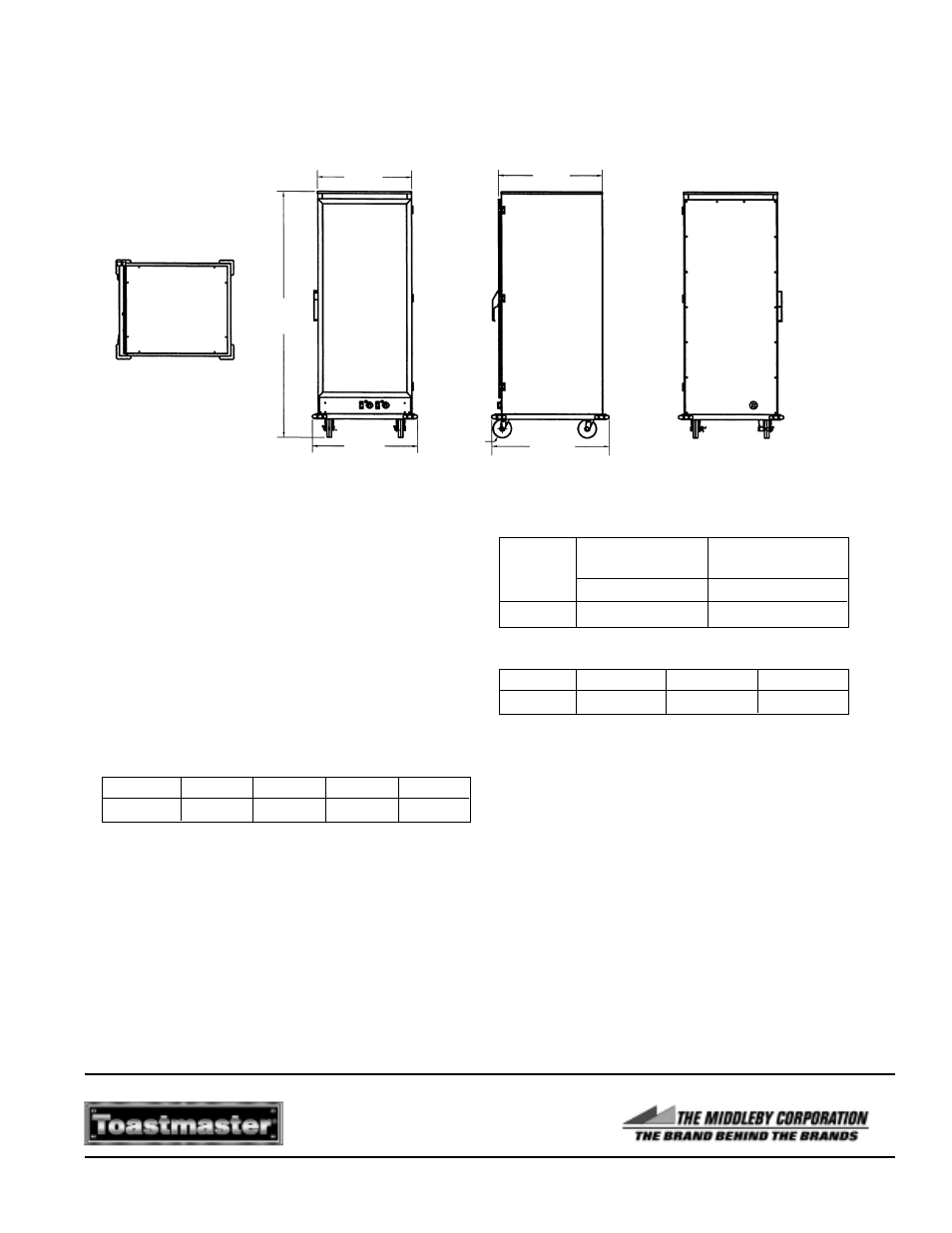

24 1 / 8 ” 27 7 / 8 ”
66 1 / 2 ”
27 5 /
8
” 31 5 / 8 ”
ø 5”
SIDE BACK FRONT TOP
