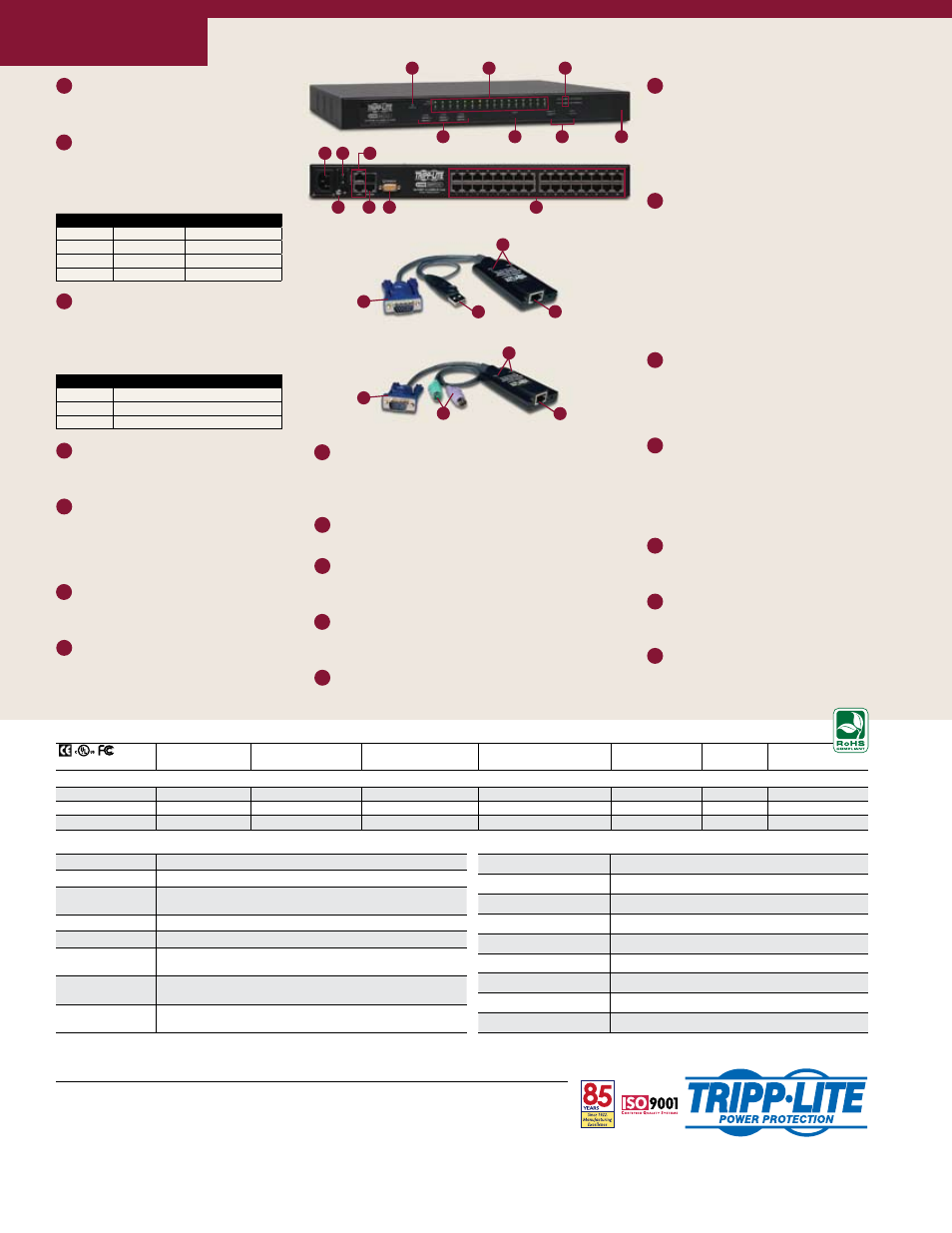

Feature Focus

200812152 95-3056

specifications

1111 W. 35th Street • Chicago, IL 60609 USA

(773) 869-1234 • www.tripplite.com

B064-032-02-IP (B064-032-04-IP is similar. B064-016-04-IP has 16 ports and LEDs.)

B054-001-USB Server Interface Module (SIM)

B054-001-PS2 Server Interface Module (SIM)

Distributed By:

Copyright © 2009 Tripp Lite. All trademarks are the sole property of their respective owners. Photos may differ slightly from final products. Tripp Lite follows a policy of continuous improvement. Specifications are subject to change without notice.

model

server

Ports

maximum

servers

(A)

simultaneous

Users

keyboard/mouse

interface

(B)

iP Access

On-screen

Display

Form Factor

NetDirector Cat5 IP KVM Switches

B064-016-04-iP

16

128

5 (4 remote)

USB & PS/2

Built-In

Yes

1U Rackmount

B064-032-02-iP

32

256

3 (2 remote)

USB & PS/2

Built-In

Yes

1U Rackmount

B064-032-04-iP

32

256

5 (4 remote)

USB & PS/2

Built-In

Yes

1U Rackmount

Accessories

Cables

A

Power LED

This blue LED illuminates when the

KVM is powered on.

B

Server Port LEDs

These tricolor LEDs indicate (1) whether

the server port is selected as the focus

of the KVM and (2) whether a server is

connected to the port and powered on:

M

Local Console Port

This port connects to the included

console cable kit. The cable kit supports

USB and PS/2 keyboards and mice in any

combination. The cable kit also includes

a VGA (HD15) video connector that

supports resolutions up to 1600 x 1200.

N

Server Ports

Each port can be connected to a server

interface module (SIM) up to 130 feet

(40 m) away via Cat5/5e/6 cable.

One SIM is required for each server

connected to the KVM. The server ports

also support cascading additional

B007-008 KVMs to connect up to 128

or 256 servers per B064-series KVM,

depending on model.

O

SIM Power and Link LEDs

The amber power LED illuminates

when the SIM is on. The green link

LED illuminates when the SIM is

connected to the KVM.

P

SIM KVM Connection Port

This RJ45 port connects to Cat5/5e/6

cable to transfer keyboard, video and

mouse signals between the SIM and

the KVM. The SIM can be placed up to

130 feet (40 m) away from the KVM.

Q

SIM Video Connector

This VGA (HD15) connector connects to

the server’s video output.

R

SIM USB Connector

This connector plugs into a USB port

on the server.

S

SIM PS/2 Connectors

These connectors plug into PS/2

keyboard and mouse ports on the server.

H

AC Power Inlet

This C14 inlet connects to the included power cord

(5-15P plug) or a user-supplied power cord with an

alternate plug. The KVM supports 100-240V AC input.

I

Power Switch

This rocker switch turns the KVM on or off.

J

LAN Ports

These ports provide the primary and secondary LAN

connections for redundant or dual-IP operation.

K

Grounding Terminal

This terminal and the included ground wire connect the

KVM to the nearest available grounding point.

L

Dial-up Modem Port

This port provides optional dial-up remote access

(user-supplied modem required).

D

USB Ports

These ports allow additional USB devices

to be connected to the KVM.

E

Reset Switch

This recessed switch has several functions.

It can reset the KVM, restore it to factory-

default settings or restore it to

factory-installed firmware.

F

Port Selection Buttons

These buttons select the current focus

of the KVM.

G

1U Rackmount Case

This compact and durable 1U metal case

includes hardware for rackmount

installation. It also supports desktop and

stacking applications.

LED Color

Port Status

Server Status

Off

Not Selected

Disconnected or Off

Red

Selected

Disconnected or Off

Green

Not Selected

Connected and On

Orange

Selected

Connected and On

LED Color

Nominal LAN Connection Speed

Red

Up to 10 Mbps

Orange

Up to 100 Mbps

Green

Up to 1000 Mbps

C

Link LEDs

These tricolor LEDs indicate the nominal

speed (selected via auto-negotiation) of

the primary and secondary 10/100/1000

Ethernet LAN connections:

B054-001-Ps2

PS/2 server interface module (SIM) with VGA (HD15) video connector.

B054-001-UsB

USB server interface module (SIM) with VGA (HD15) video connector.

B007-008

1U rackmount KVM switch. A single B064-series server port can connect

up to 8 servers by cascading a B007-008 KVM switch.

(C)

B021-000-17

1U rackmount console with keyboard, touch pad and 17 in. LCD monitor.

B021-000-19

1U rackmount console with keyboard, touch pad and 19 in. LCD monitor.

B021-000-19-sh

1U shallow-depth rackmount console with keyboard, touch pad and

19 in. LCD monitor.

P120-000

VGA (HD15) female to DVI-A male adapter. Use this adapter to connect a

B054-series server interface module to a DVI video card.

P126-000

VGA (HD15) male to DVI-I female adapter. Use this adapter to connect

a B064-series KVM’s console cable kit to a DVI monitor.

(A)

Requires cascading additional B007-008 KVM switches, sold separately.

(B)

The included console cable kit supports both USB and PS/2 keyboards and mice. Server interface compatibility depends on the server interface

module (SIM), sold separately. One SIM is required for each server connected to the KVM.

(C)

Cascading requires a B054-001-PS2 server interface module for each B007-008 KVM connected and a P753-series cable kit for each

server connected. Each USB server also requires a B015-000 adapter.

N001-003-GY

3 ft. Gray Cat5e Snagless Molded Patch Cable

N001-005-GY

5 ft. Gray Cat5e Snagless Molded Patch Cable

N001-007-GY

7 ft. Gray Cat5e Snagless Molded Patch Cable

N001-015-GY

15 ft. Gray Cat5e Snagless Molded Patch Cable

N001-025-GY

25 ft. Gray Cat5e Snagless Molded Patch Cable

N001-050-GY

50 ft. Gray Cat5e Snagless Molded Patch Cable

N001-075-GY

75 ft. Gray Cat5e Snagless Molded Patch Cable

N001-100-GY

100 ft. Gray Cat5e Snagless Molded Patch Cable

N001-125-GY

125 ft. Gray Cat5e Snagless Molded Patch Cable

A

B

C

D

H I

J

N

E

F

G

Q

Q

S

R

P

P

K

L

M

O

O
