PARTS INFORMATION

[email protected]

Page 9

TBC-420PF

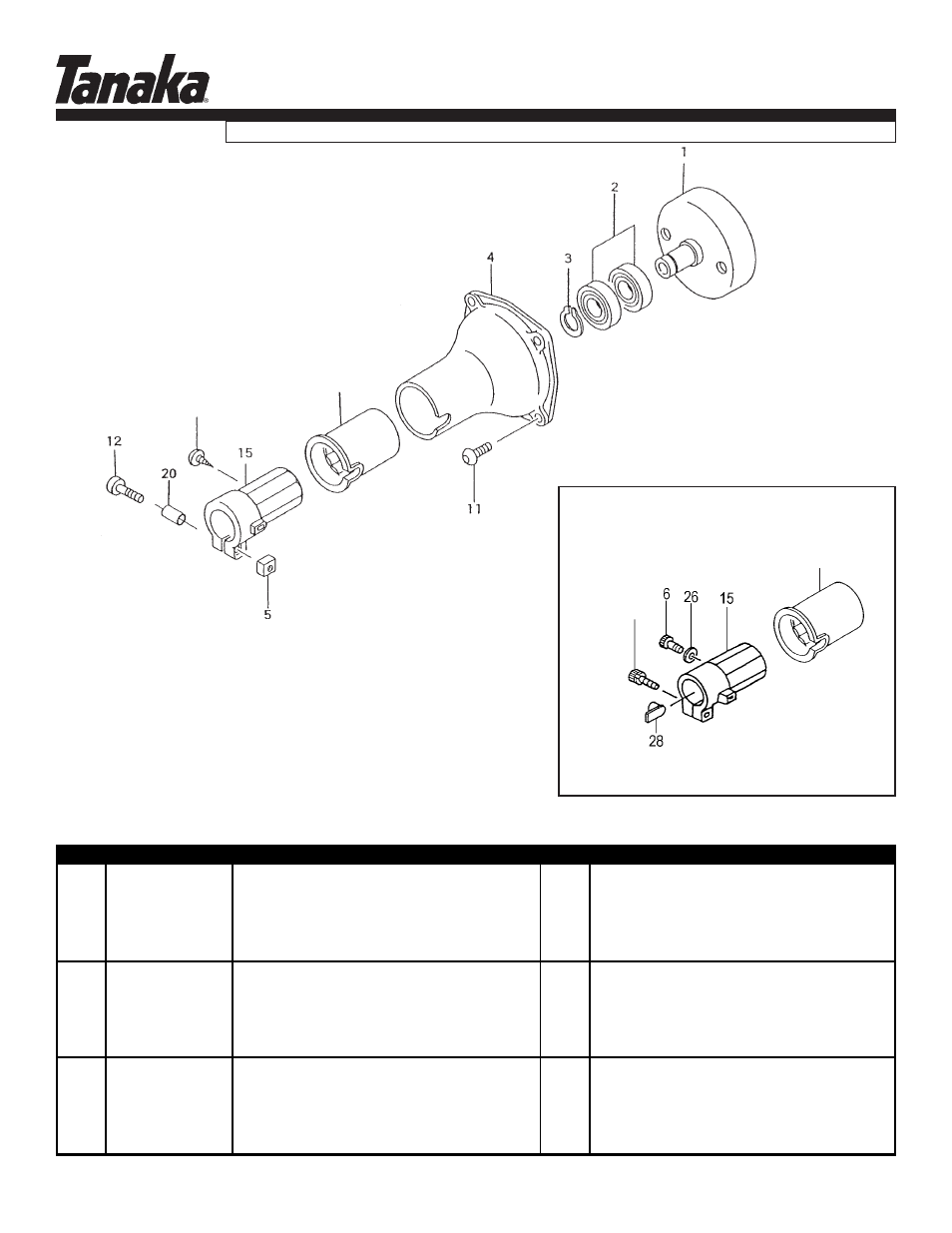

CLUTCH CASE • FIGURE 7

Units after S/N W032375

9

6

9

12

ITEM PART NUMBER

DESCRIPTION

QTY

COMMENTS

7-1

2890430080

SHAFT,CLUTCH

1

7-2

99961620202

BEARING,BALL,#6202Z

2

7-3

99350015002

RING,STOP,C-15 EX

1

7-4

3310430020

CASE,CLUTCH

1

7-5

99191050001

NUT,5

1

~W032374

7-6

1

~W032374

7-6

99051050163

BOLT,HEX,5X16

1

W032375~

7-11

99053060203

BOLT,HEX,6X20

4

7-12

99054050253

BOLT,HEX 5x25

1

7-15-1 3600430020

HOLDER,PIPE

1

~W032374

7-15

3600430021

HOLDER,PIPE

1

W032375~

7-20

0960430020

COLLAR 6.3x18

1

~W032374

7-26

99201050061

WASHER,5

1

W032375~

7-28

3610099020 METAL FITTING 1 W032375~

99074045164

SCREW,TAPPING 4.5x16

7-9

5990430020

RUBBER,CUSHION

1
