C-CC764/C-CC714

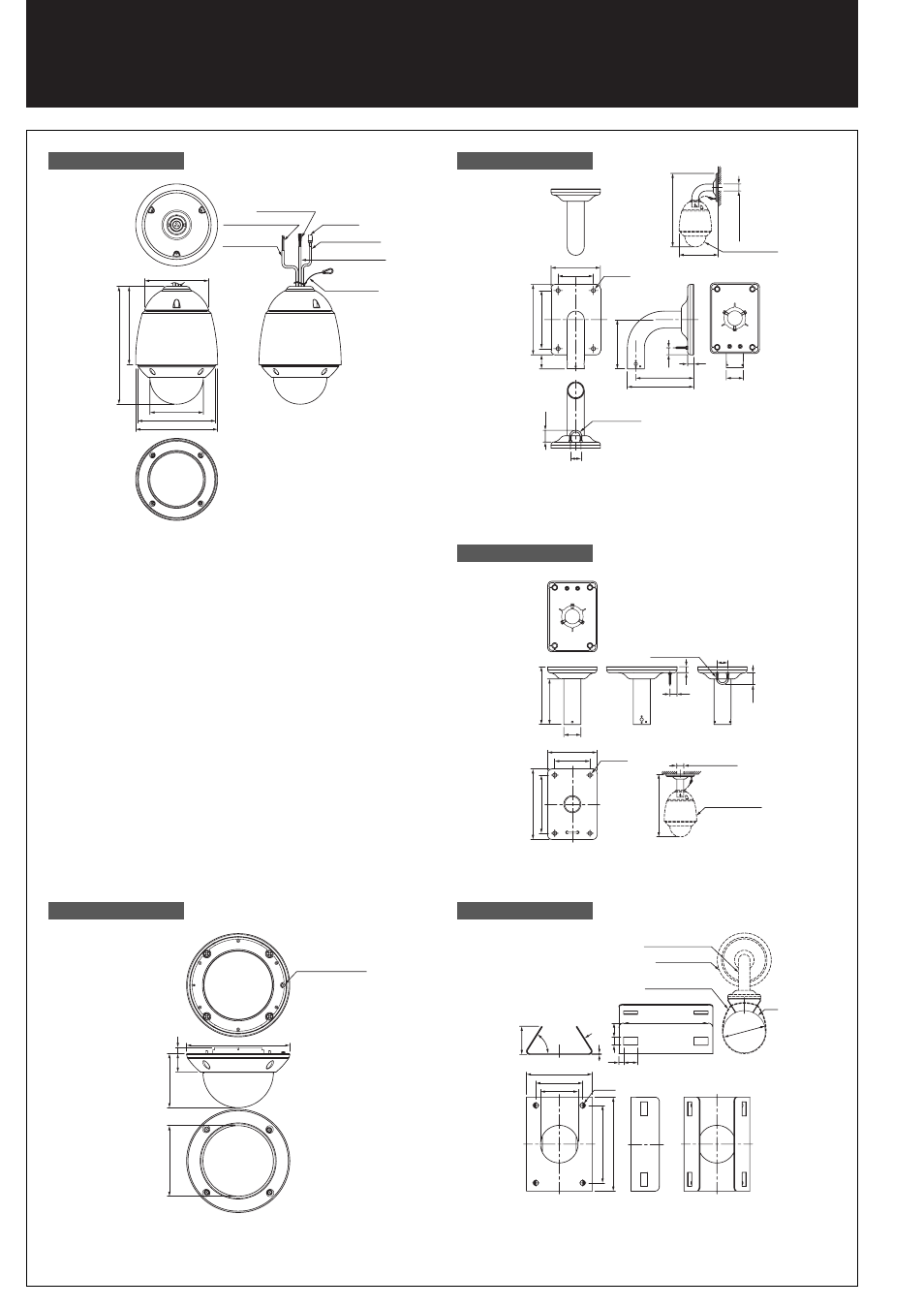

APPEARANCE AND DIMENSIONAL DIAGRAM
ш179.9
ш150
ш218.5
ш230
330.5
219.5
Multi-pair cable 8 P,
loose end
Power cord length
Approx. 1.8 m
Cable end: 2 P loose end BNC-R jack
Coaxial cable length
Approx. 1.8 m
Multi-pair cable length
Approx. 1.8 m
Safety wire length
Approx. 20 cm
521
279
140
200
140
20
165
40
33.5
4–ø11.4 100
164
30
17
Hook to connect
safety wire
188.1
ø48.3
Applicable camera
(option)
Cable entry hole on a wall ø50
Wall mounting example
Safety wire fixing screw
ш219.8 13
38.9
115
ш150
164
200 445 165
129
ш48.3
17
33.5
20
4–ш11.4
140
100
30
Hook to connect
safety wire
Cable entry hole
on a ceiling ø50
Ceiling mounting example
Applicable camera
(option)
Figure as viewed from point A
Wall mounting bracket
C-BC711W (option)
Mounting example
Pole
ш90–
ш340
Pole mounting bracket
YS-60B (option)
Applicable camera
(option)
30
140
100
ш80
4–ш11
57.6˚ 30
60 17
165 200
2
10
A
Unit: mm
C-CC764/C-CC714 C-BC711W
C-A711DM
C-BC711P
C-BC711PM
