1

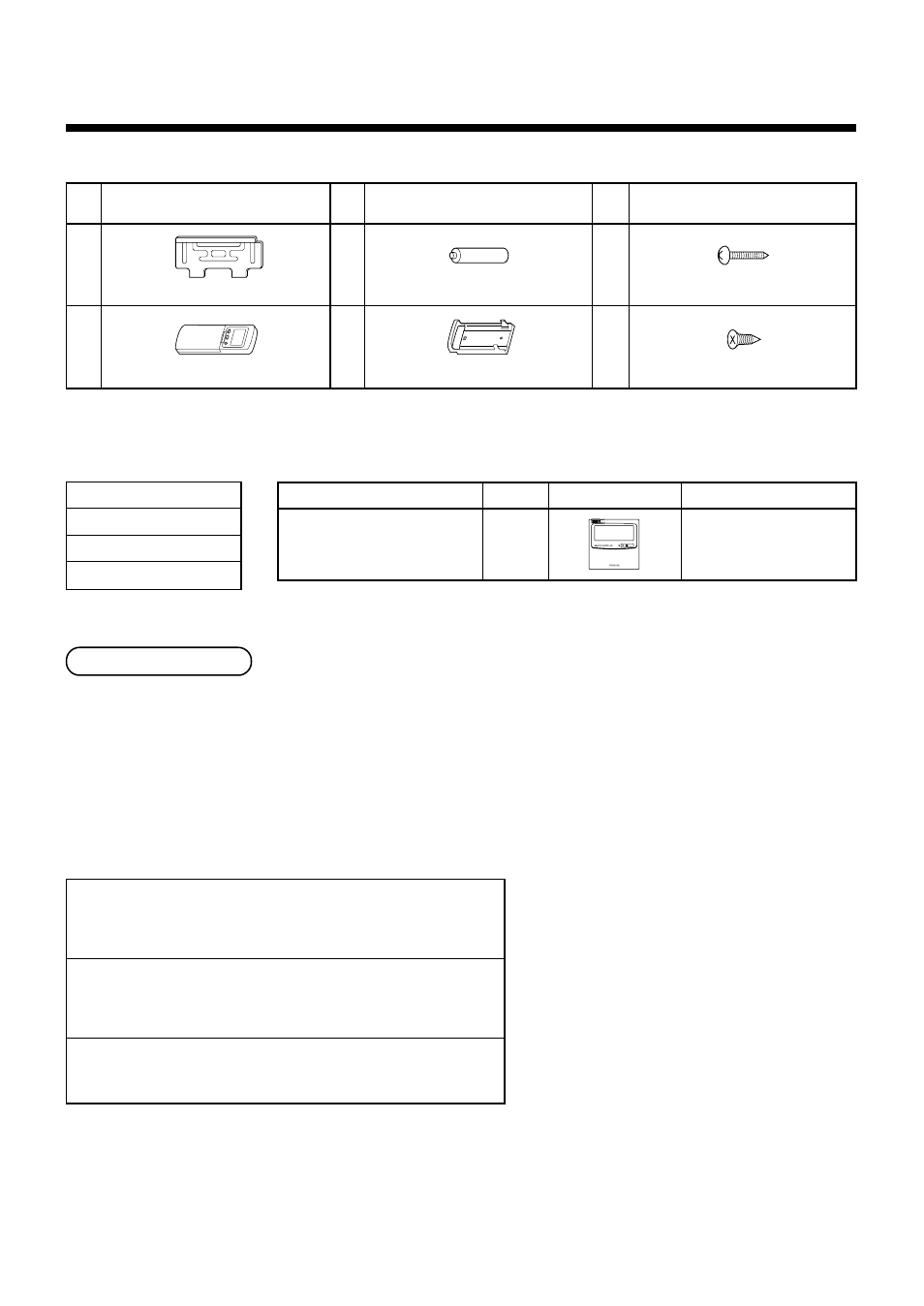

Accessory parts and parts to be procured locally
H
Accessory parts
H
Parts to be procured locally
Connecting pipe (Liquid side)
(6.4mm (diam.), Nominal (diam.) 1/4” thick 0.8mm)
MMK-AP0072H to MMK-AP0122H
Connecting pipe (Gas side)
(9.5mm (diam.), Nominal (diam.) 3/8” thick 0.8mm)
MMK-AP0072H to MMK-AP0122H
Power supply cord
Cable 3-core 2.5mm
2 , in conformity with Design 60245 IEC57
Part name
Standard wired remote controller
Q’ty
1
Shape Usage
Model : RBC-AMT21E
Part
No.
1
2
Part name (Q'ty)
Installation plate × 1
Wireless remote controller × 1
Part
No.
3
4
Part name (Q'ty)
Battery × 2
Remote controller holder × 1
Part
No.
5
6
Part name (Q'ty)
Mounting screw Ш4 Ч 25 l x 6
Pan head wood screw Ш3.1 Ч 16 l × 2
Name
Owner’ s manual
Installation manual
Paper pattern
Refrigerant piping
• Piping material used for the conventional refrigerant cannot be used.
• Use copper pipe with 0.8 mm or more thickness for Ш6.4, Ш9.5.
• Flare nut and flare works are also different from those of the conventional refrigerant. Take out the flare nut
attached to the indoor unit of the air conditioner, and use it.
