SX4e TDMA 800 • SX4e Tri-Mode 8 Technical Manual
LED 1 – Power Status Indicator
LED Color LED Activity Description
GREEN Continuous FWT Power ON
ORANGE Continuous Low-Voltage Detection
NONE (Dark) None No FWT Power
LED 2 – Cellular Status Indicator
LED Color LED Activity Description
GREEN Continuous Good Cellular Signal
Strength
GREEN Flashing Poor Cellular Signal
Strength
RED Continuous No Cellular Service*
LED 3 – FWT Status Indicator
LED Color LED Activity Description
GREEN Continuous Normal Operation
GREEN Flashing Normal Operation - Analog
Fax Call
GREEN/RED Alternating Programming Mode
RED Continuous FWT Failure**
RED Flashing Phone or Fax Interface Failure
Check Wiring to Telephone
*Contact your service provider to verify that cellular service is activated.
PHONECELL SX4e OPERATION
How to Use the LED Status Indicators
••
Plug in the power supply.
••
Wait for the unit to initialize.
••
The three LED indicators on the front of your Phonecell
will turn ON. The Tables below describe the modes and
operation of the three indicators - see Figures 9 and 10.
LED 3

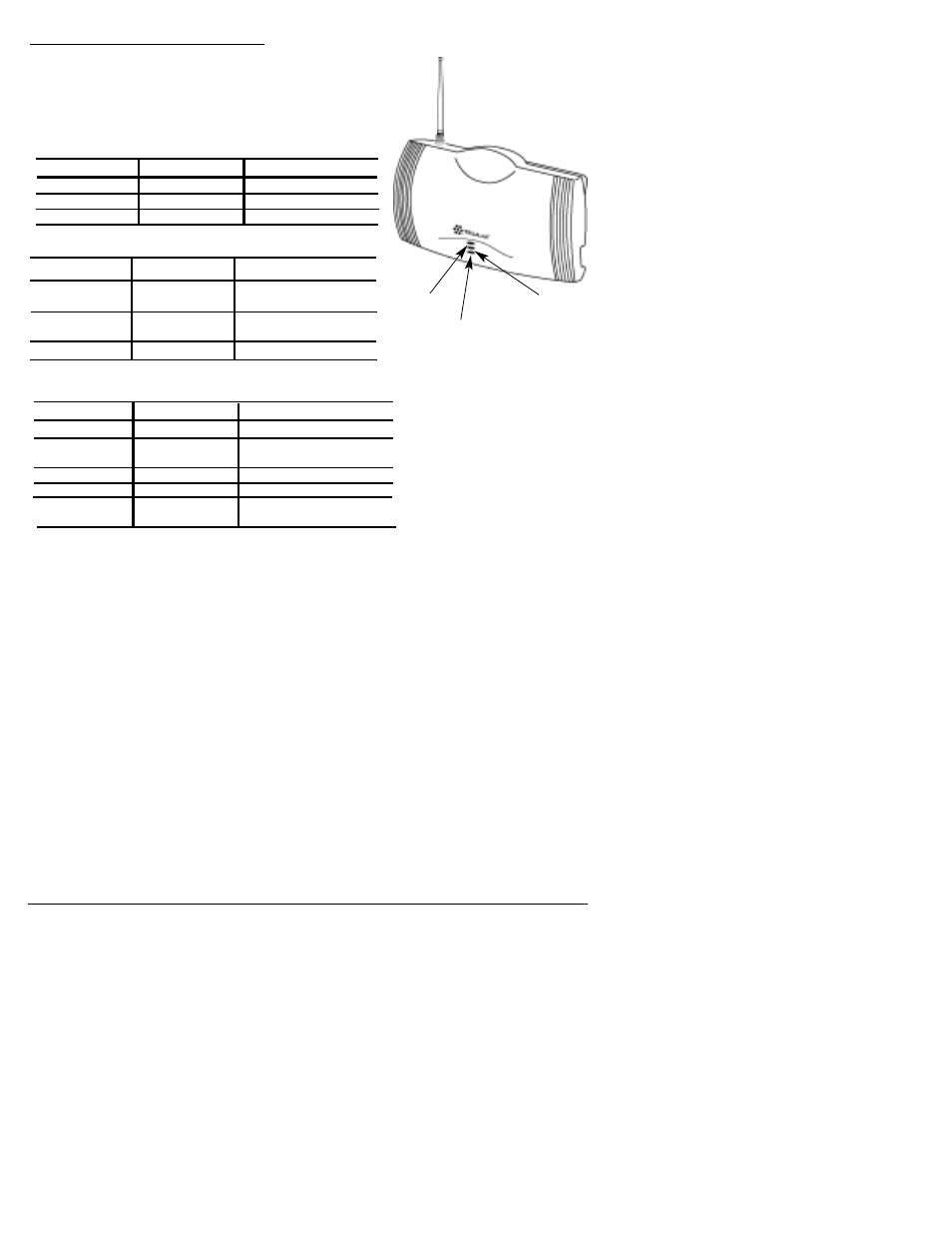

Figure 9 - LED status indicators.
How to Place a Call
1) Pick up your telephone handset (your phone is now “off-hook”).
2) Listen for dial tone (If service is not available, a No-Service tone is produced. Hang up the phone
and try again. If the No-Service tone continues, contact your service provider to make sure cellu-
lar service is activated.).
3) Dial the phone number.
How to Receive a Call
When your telephone rings, pick up the handset and begin talking.
How to End a Call
Hang-up the phone (place the handset back onto the telephone cradle).
The Hookflash Function
When you initiate the Hookflash function, it automatically lets you:
• Speed up the connection after you dial a phone number.
• Answer an incoming call that occurs when you’re dialing a phone number.
• Use special (supplementary) cellular services which may be available in your cellular service area.
How to Use the Hookflash Function
Depending upon your phone, there are two ways to initiate the Hookflash function:
• Press the dedicated “HOOKFLASH” or “FLASH” key on your telephone.
• Press the hang-up or switch-hook mechanism on your phone once quickly (approximately
1/2-second).
**Contact your Authorized Telular Service Representative
LED 1
LED 2
