10
Introduction

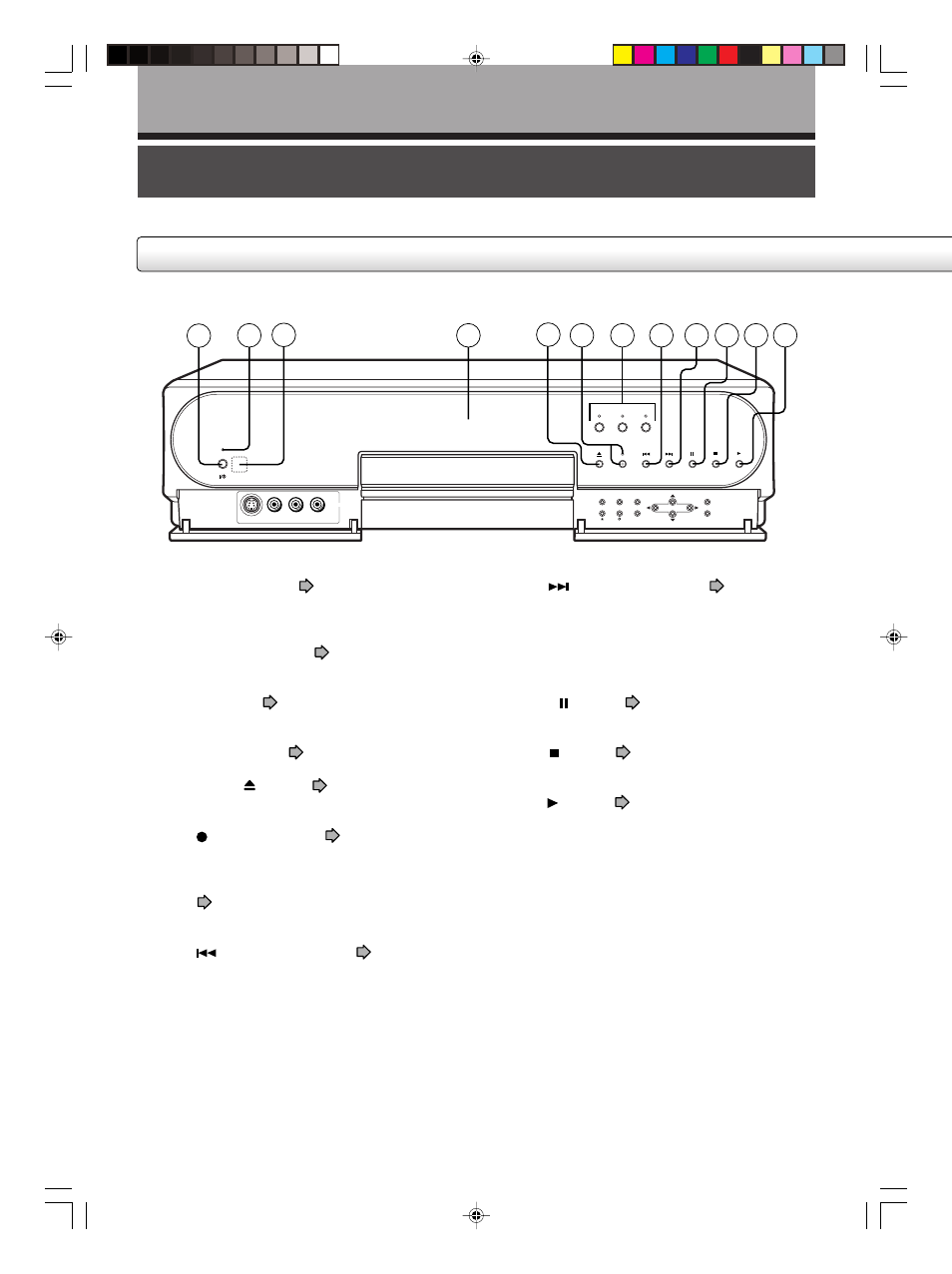

Index to Parts and Controls
See pages with arrows for details.
Front panel
1 ON/STANDBY button pages 18, 19
Turns the power on/restores the unit in the
standby mode.
2 ON/STANDBY indicator page 18, 19
Displays the operational state of the recorder.
3 Remote sensor page 12 in “INSTALLATION
GUIDE”
4 Front panel display page 16
5 Open/Close ( ) button page 18, 19
Opens and closes the disc tray.
6 REC ( ) button/indicator page 69
Starts recording.
7 Three mode button/indicator (HDD, TIMESLIP,
DVD)
page 28, 30, 67
Selects recording/playback media.
8 Skip ( )/Fast reverse button page 46, 47
Press briefly to skip, or press down for more than
1 second for fast reverse.
• Skip
: Plays the previous title, chapter, or
track.
• Fast reverse : Scans the picture backwards.
* The above illustration displays the front panel with the cover open. See the following page on how to open or close the cover.
9 Skip ( )/Fast forward button page 46, 47
Press briefly to skip, or press down for more than
1 second for fast forward.
• Skip
: Plays the next title, chapter, or
track.
• Fast forward : Scans the picture forward.
! Pause ( ) button page 28, 38
Stops playback or recording momentarily.
" Stop ( ) button page 28, 38
Stops playback or recording.
# Play ( ) button page 28
Starts playback.
HDD
REC MENU
QUICK MENU
REC MODE INPUT SELECT CONTENT MENU
ENTER
TIMESLIP DVD
CHANNEL +
ON/STANDBY
S-VIDEO VIDEO L R
INPUT 2
1 2 3 4 5 7 8 9 10 11 12 6
–
