No. MIIXR0002EAC
2 Implementation
Model

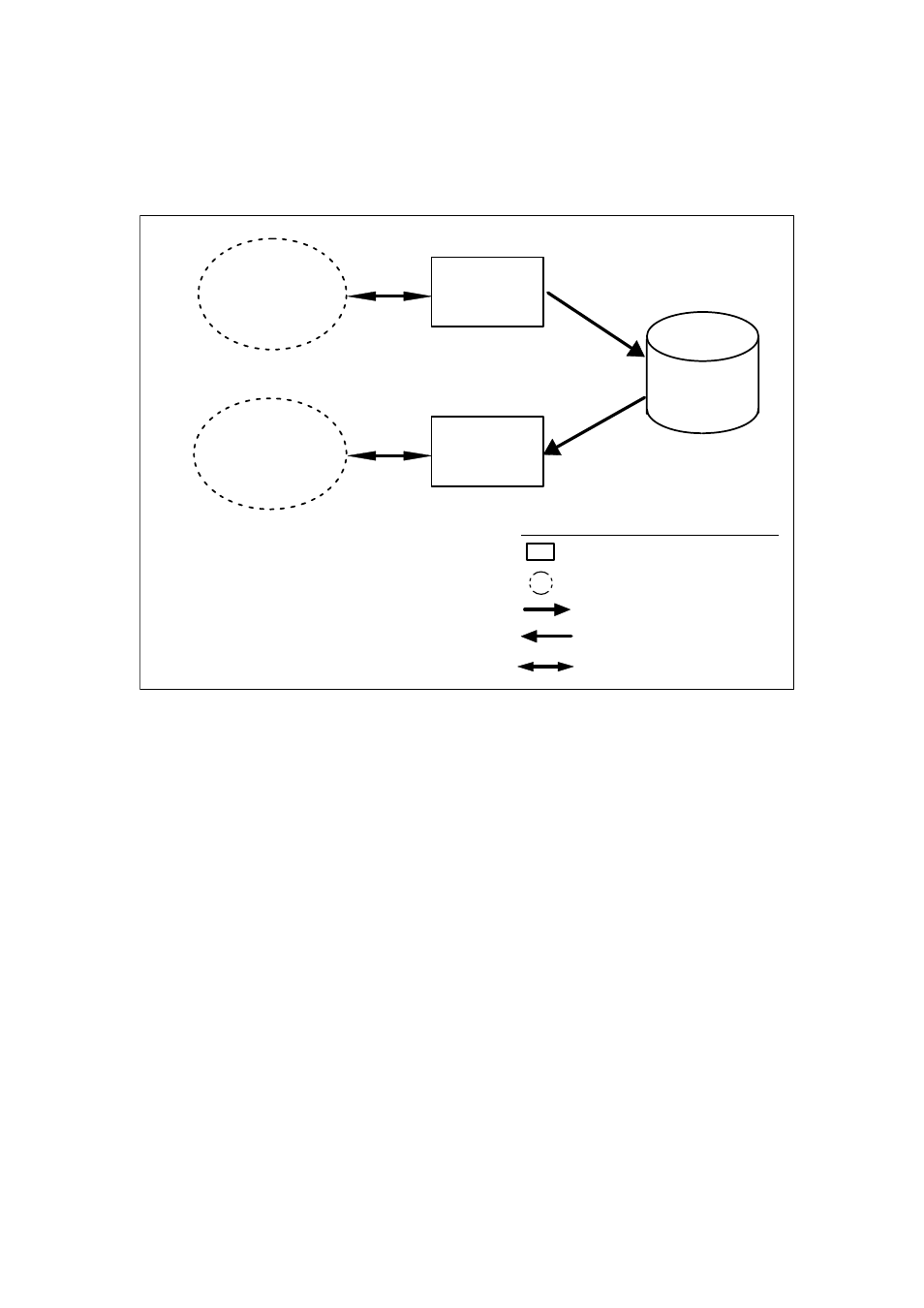

2.1 Application Data Flow Diagram
Transfer of
X-ray
Examination
DICOM
Recording
CD-R
Medium
Review of
X-ray
Examination
DICOM
Reader
Legend
Application Entity
Local Real-World Activity
File-set Creator (FSC)
File-set Reader (FSR)
Local Relationship
Figure 1
2.2 Functional Definitions of AE's
2.2.1 DICOM
Recording
The DICOM Recording supports the following tasks:
• Builds DICOM XA Information Objects.
• Creates a DICOMDIR file that represents the contents of DICOM XA Information
Objects to be recorded.
• Records DICOM XA Information Objects and DICOMDIR from the local storage to
the CD-R media.
• Duplicates the File-set of the CD-R media or the local storage onto the blank CD-R
media.
