PARTS INFORMATION

[email protected]

Page 6

TED-210

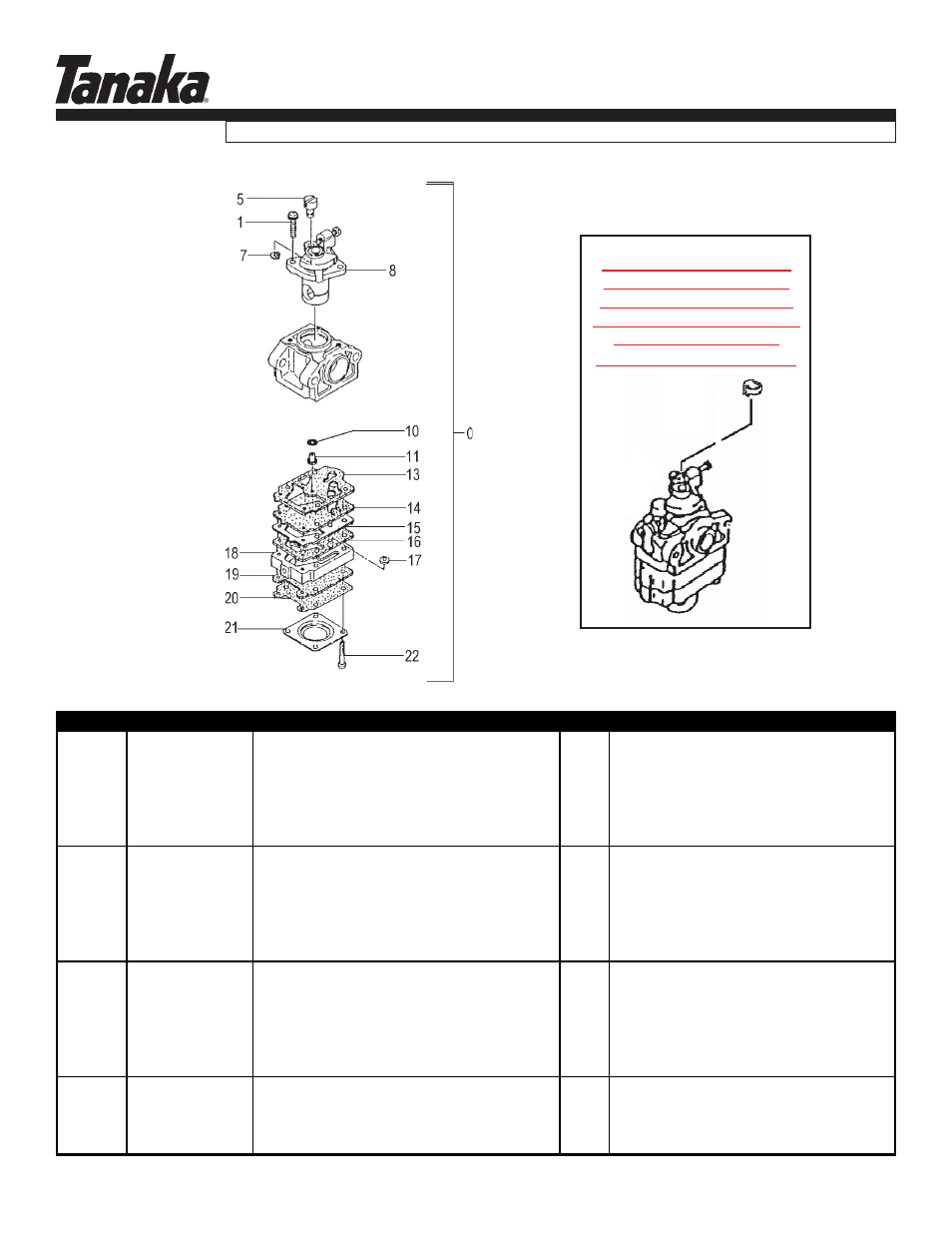

CARBURETOR • FIGURE 5

ITEM

PART NUMBER

DESCRIPTION

QTY

COMMENTS

5-0

4552518290

CARBURETOR,ASS'Y

1

~Z333900 Includes gasket

5-1

54825140200

SCREW,THROTTLE SET

2

5-5

53925120200

SWIVEL

1

5-7

48925100200

RING,STOP

1

5-8

48825145800

VALVE,THROTTLE

1

~S259000

5-10

55025100200

O-RING

1

5-11

5992000W410

JET,MAIN,#41

1

~S259000

5-11

5992000W35

JET,MAIN,#35

1

~Z333900

5-11

599200BW34

JET,MAIN,LONG,#34.5

1

Z333901~

5-13

~ ~ ~

GASKET,PUMP

1

5-14

~ ~ ~

DIAPHRAGM,PUMP

1

5-15

52325100201

PLATE,PUMP

1

~S259000

5-16

52225100200

PLATE,CIRCUIT

1

~S259000

5-17

57825007200

SCREEN,INLET

1

5-18

57525140800

BODY,PUMP

1

~S259000

5-18

5752518280

BODY,PUMP

1

~Z333900

5-18

5752514780

BODY,PUMP ASS'Y

1

Z333901~

5-19

~ ~ ~

GASKET,DIAPHRAGM

1

~ Contained in Carb Repair Kit

5-19

~ ~ ~

GASKET,DIAPHRAGM

1

P/N 650-25140-900

5-20

~ ~ ~

DIAPHRAGM,METERING

1

(not available individually)

5-21

47625004200

COVER,DIAPHRAGM

1

5-22

54825101200

SCREW,SET

4

A small retainer (560-07120-

20), has been added to this

model after serial # A099801

to prevent the barrel end of the

throttle wire from coming

detached from the carburetor.
