Introduction

Thank you for choosing the LP20 or LP40 Spectra Precision

Laser from the Trimble

family of precision hand-held lasers. This

simple-to-use tool allows you to transfer points between the floor
and ceiling and to establish 90° points for laying out wall lines
and putting up wall partitions. You can also use the laser for
other applications where true plumb, square, and level setups
are required.

Before using the laser, be sure to read this operator’s manual
carefully. Included in it is information about setting up, using,
and maintaining the laser. Also included in this manual are
CAUTIONS and Notes. Each of these words represents a level
or danger or concern. A CAUTION indicates a hazard or unsafe
practice that could result in minor injury or property damage.
A Note indicates important information unrelated to safety.

Your comments and suggestions are welcome; please contact us at:

Trimble Construction Division
5475 Kellenburger Road
Dayton, Ohio 45424-1099 U.S.A.
Phone: (937)

245-5600

(800)

538-7800

FAX: (937)

233-9004

Internet: www.trimble.com

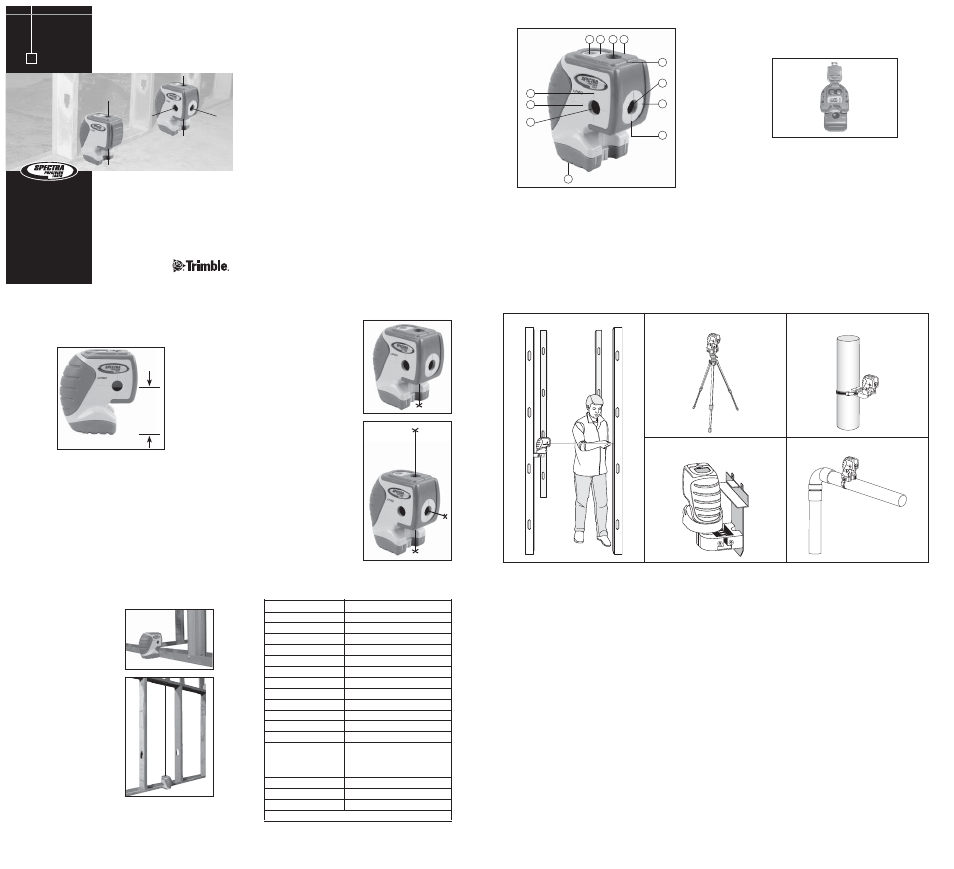

Features

1. Power Button

2. Power-Status LED

3. Lens

4. Level Offset Mark

5. Plumb Offset Mark

6. Battery Housing

Installing/Removing the Batteries

CAUTION: The batteries should be removed when storing the
laser more than 30 days.

1. Release the battery door using your fingers. Open the door.

2. Install/remove the 4 AA batteries.

Note: When installing the batteries, be sure to note the positive

(+) and negative (–) diagrams molded on the battery housing.

3. Close the battery door and latch it shut.

Setting Up the Laser and Transferring a Point

Setups attempted through glass or other material will affect the
accuracy of the laser.

1. Press the power button. The green power-status LED lights to

show that the laser is on.

CAUTION: Never look directly into the laser beam.

2. Place the laser on a flat surface. The laser must be within ±4° of

being level for it to self-level.

3. Adjust the position of the

laser so that the down beam
is on the control point.

4. Locate the position of the

up beam and level beam.
Make a mark on the ceiling
and wall respectively.

0002-8210 Universal Accessory

Plumbing a Wall

1. Place the laser so that the

bottom feet are on the front
edge of the bottom track.

2. Press the power button.

3. Adjust the top of the

partition until the up
beam is on the front edge
of the top track.

Specifications

Up Beam Accuracy*

+/ – 6 mm @ 21 m (+/–

in. @ 70 ft)

Down Beam Accuracy*

+/– 1 mm @ 0.5 m (+/–

in. @ 2.5 ft)

Level Beam Accuracy*–LP40

+/– 6 mm @ 30 m (+/–

in. @ 100 ft)

Square Beam Accuracy*–LP40 +/– 6 mm @ 30 m (+/–

in. @ 100 ft)

Self-Leveling Range

±4° from level

Out-of-Level Indicator

Beam flashes

Working Range*

20–30 m (65–100 ft)

Laser Class

Laser Type

LP40–635 nm; LP20–650 nm

Beam Shape

Round

Battery Type

4 AA alkaline

Battery Life

40 hours (alkaline)

Low Battery Indicator

LED Blinking

Auto-Shutoff

1 hour (on/off selectable)

(Holding the power button

down for 3 seconds
enables auto-shutoff.)

Operating Temperature Range –10 °C to 45 °C (14 °F to 113 °F)
Size

12.0 x 11.0 x 6.5 cm (4.7 x 4.4 x 2.6 in.)

Weight

0.4 kg (0.9 lb)

*When operated within specified temperature range

Maintenance and Care

You will get years of service from your laser by following the
maintenance and care recommendations in this manual. However
well the product is designed, mishaps do occur and the most
common problems associated with these are covered in the
following areas. Any damage to the laser caused by improper
maintenance and care voids the warranty.

Handling Precautions

When transferring the laser from a very low temperature to a
warmer environment or visa versa, always allow time for the laser
to reach the new temperature before using. Allowing this time is
especially important when transferring the laser from an extremely
heated/cold vehicle to the job site.

System Cleaning

For maximum performance and accuracy always keep the lenses
clean. When cleaning, apply very light pressure and use only a
good quality glass cleaner on a soft cloth to clean the exterior of
the laser and its lenses.

CAUTION: A dry cloth or abrasive organic cleaner could scratch
or damage these surfaces.

CAUTION: Do not submerge the laser.

Storage

When you’re not using the laser, store it in its pouch/carrying case.

CAUTION: Do not store the laser in a wet pouch/carrying case.
If the pouch/carrying case gets wet, let it dry before storing the
laser in it.

CAUTION: The batteries should be removed when storing the
laser more than 30 days.

Battery Disposal

Some states and local areas have regulations regarding the disposal
of batteries. Be sure to dispose of discharged batteries properly.

1 M (4 Ft) Marks

Elevations with

–20

Columns with Strap or

Tripod Mount

Bungee Cord

Ceiling

with

0002-1106

Pipes/Conduit

Ceiling Mount

72 mm
2
