EN
Getting Started
2
Unpacking the system:
You should have the following:
•
one main unit (with 2 main speakers);
• one remote control;
• one AM loop antenna;
•
one FM antenna wire
• one user’s guide;
• One Thomson Warranty Card

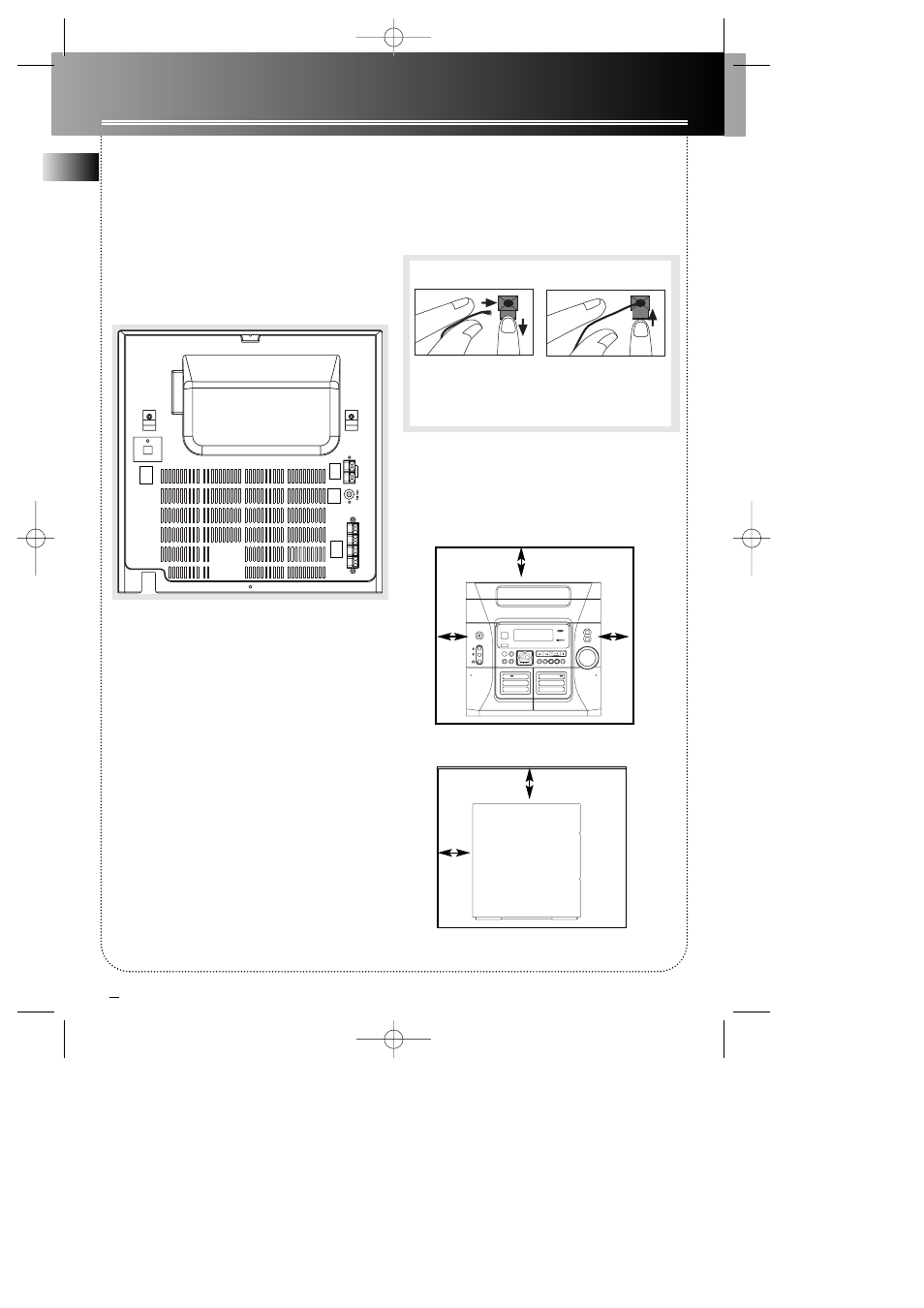

Back View
1. AM Loop Antenna Jacks
2. FM Antenna Connector
3. Main Speaker Jacks
4. Optical Out Connector
Using the FM and AM Antennas
Before you use your audio system, you’ll want to
make sure both the FM and AM antennas are posi-
tioned properly. Connect the FM antenna to the FM
connector on the back of the unit. Uncoil it, making
sure it is fully extended. (you may even want to tape
it to the wall behind the unit if possible. The higher
the better.)
You’ll also need to connect the AM antenna loop to
the back of the unit if you listen to AM stations.
Rotate the AM loop antenna for better reception.
Connecting the Speakers
Match the red wire (on the left speaker) to red termi-
nal for the left speaker (L) on the back of the unit and
the black wire (on the left speaker ) to the black ter-
minal for left speaker (L). Follow the same procedure
to connect the right (R) speaker.
Installation
To ensure sufficient ventilation, keep the spacings
shown below free from other surfaces:
Release tab to lock wire in
the terminal.
NOTE: Make sure the insulation is completely removed from the
ends of the Antenna and speaker wires at all connection
points.
Antenna and Speaker Wire Connection
Push terminal tab down to
insert wire.
PUSH PUSH
VOLU ME CONT RO L
DIGITAL TUNING PRESET EQ
RECORD PROG•SET
SOURCE
CLOCK
TUNER•PRESET TIMER
BAND DIMMER
DISC SKIP
GAME •mp3•
CD-R / RW COMPATIBLE
S I M U L T A N E O U S P L A Y A N D L O A D S Y S T E M 5 DISC CHANGER
R
L
O PE N • CLOSE
ECO
IR SENSOR
DEMO
DECK PLAYBACK/ RECORD PLAYBACK
AUTOMATIC REC LEVEL • AUTO STOP MECHANISM ONE TOUCH RECORDING CONTINUOUS PLAY 2 > 1 TAPE DUBBING 2 > 1
DECK 1 2
AUTO PROG/ DECK 1•2 B. BOOST X-SURR.
ON
ECO
RDS
10 cm
10 cm 10 cm
10 cm
5 cm
Front View
Side View
MAIN SPEAKERS 6
Ω
~
+
_
_
+
AM LOOP
L R
OPTICAL OUT
1
2
3
4
