5
SECTION 2: ASSEMBLING YOUR LOG SPLITTER
Unpacking from Crate
• Pry top, sides, and ends off the crate. Set panels
aside to avoid tire puncture or personal injury.
• Remove and discard plastic bag that covers unit.
• Remove any loose parts if included with unit (i.e.,
operator’s manual, etc.)
• Cut and remove straps which secure parts to
bottom of crate. Unbolt any remaining parts which
may be bolted to the bottom of the crate.
Loose Parts
1. Reservoir Tank and Engine-Pump Assembly
2. Engine-Pump Assembly Hardware
3. Wedge, Beam and Cylinder Assembly
4. Tongue Assembly
5. Wheels
6. Hitch Assembly
7. Beam Support/Latch Bracket
8. Log Cradle Brackets and Hardware
9. Fenders
10. Adjustable Jack Stand Assembly
11. Tail Light Kit
12. Hub Cap (2)

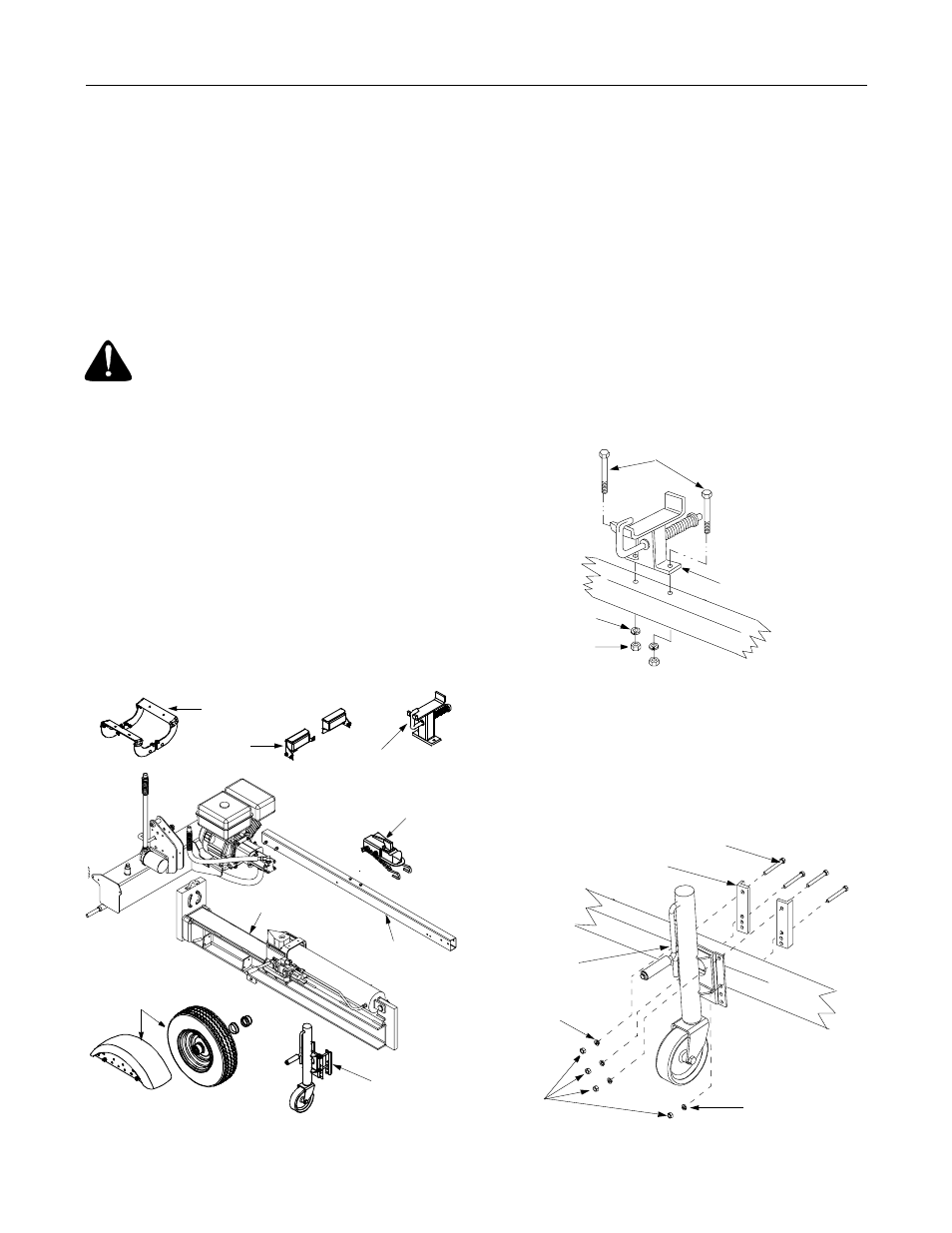

Figure 1
Before Assembling
• Disconnect spark plug wire and ground against the
engine to prevent unintended starting of the log
splitter. To locate the spark plug, please refer to the
engine manual, shipped seperately with the unit.
Attaching Beam Support/Latch Bracket
The beam support is already attached to the tongue
before shipping. If not, follow instructions below:
• Remove two hex bolts, lock washers, and hex nuts
from the tongue. See Figure 2.
• Place the beam support/latch bracket on the
tongue and secure with the hardware just removed.
Tighten securely.
Figure 2
Attaching Jack Stand
• Remove four hex bolts, lock washers, and hex nuts
that secure jack stand mounting brackets to the
jack stand. See Figure 3.
• Place the jack stand halfway between beam
support/latch bracket and end of tongue.
Figure 3
WARNING: Use extreme caution while
unpacking this machine. Some components
are very heavy and will require extra people or
mechanical handling equipment to move.
Log Cradle
Tail Light
Kit
Beam Support/
Latch Bracket
Hitch Assembly
Tongue
Assembly
Jack Stand
Wheel & Fender
Assembly
Wedge, Beam
& Cylinder Assembly
Hex Bolts
Lock
Washer
Tong
ue
Hex Nut
Beam Support/
Latch Bracket
Hex Bolts
Mounting
Brackets
Jack Stand
Lock Washer
Hex
Nuts
Tong
ue Lock
Washer
