Page 15

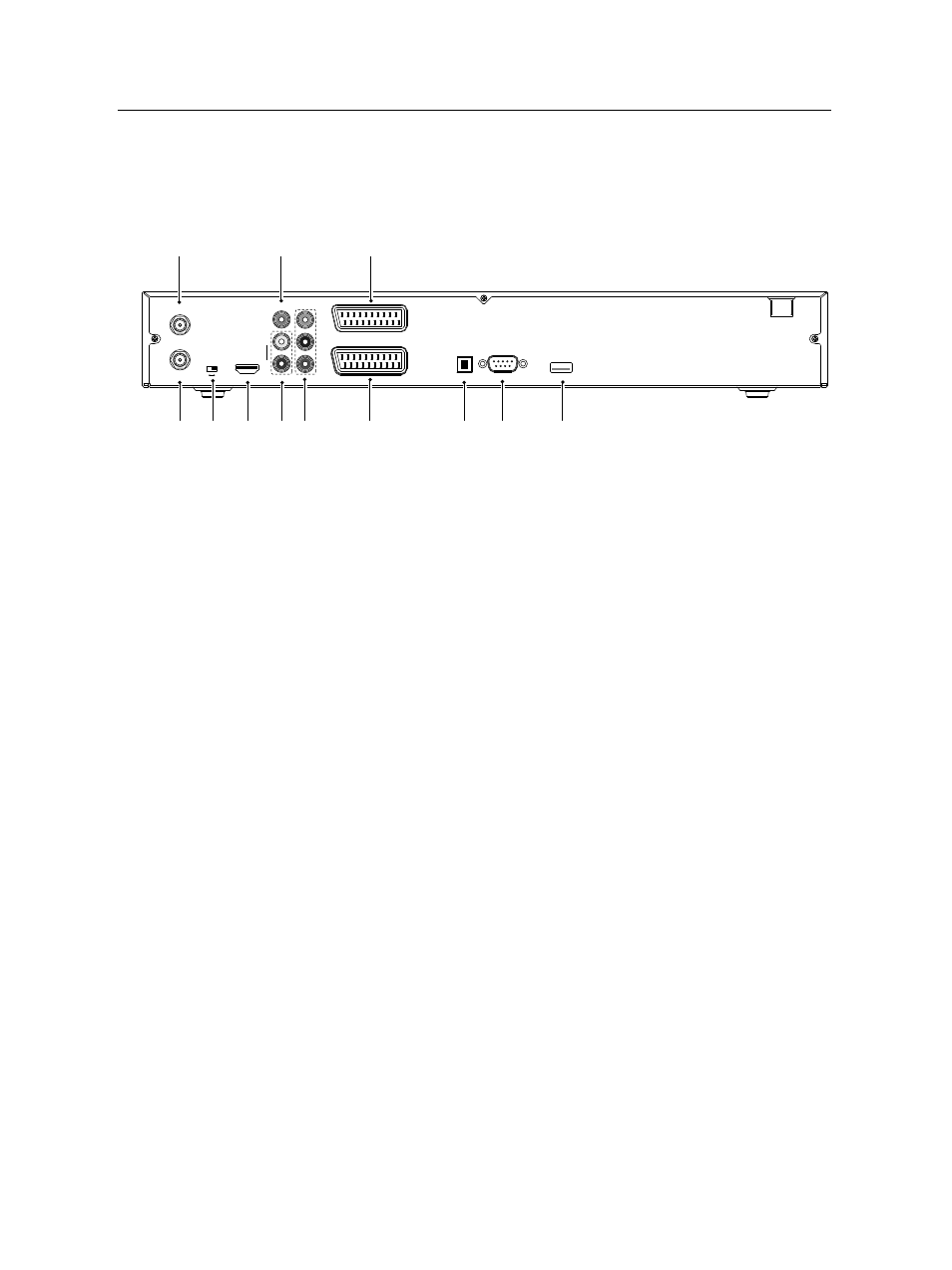

2.3 Rear panel connections
9
2.3
Rear panel connections
The TF 7700 HSCI has some connections on the back panel.
YPbPr
SCART
AUDIO
HDMI
VCR
TV
RS-232
S/PDIF
USB
VIDEO
Y
Pb
Pr
L
R
LNB IN
LNB OUT
1
2
3
4
5
6
7
8
9
10
11
12
Check what connections your television set has in comparison
with the digital receiver.
1
LNB IN
Satellite broadcasting signal input socket.
2
LNB OUT
Satellite broadcasting signal output socket
through the LNB IN socket for another digital re-
ceiver.
3
YPbPr ↔ SCART
Video output selection switch. See
§
for for more details.
4
HDMI
Audio and video output socket for the high defi-
nition television set.
5
VIDEO
Composite video output socket for the television
set. (yellow)
6
AUDIO L/R
Stereo audio output socket for the television
set or audio system. (white/red)
7
Y/Pb/Pr
Component video output socket for the televi-
sion set. (green/blue/red)
8
TV
Audio and video output socket for the television set.
9
VCR
Audio and video input/output socket for the
video cassette recorder or suchlike.
