positioning of the loudspeaker. The point at which the scaffold clamp is attached to the flybar
determines the vertical angle of the loudspeaker as shown in the table following.
The following table gives the predicted downward angle of the enclosure using the various
attachment points on the FB-12 flybar assembly.
Attachment position Vertical angle (negative angle denotes upwards)
Hole number 1 (front of cabinet)
-29 °
Hole number 2
-23 °
Hole number 3 -17 °
Hole number 4 -10 °
Hole number 5 -3 °
Hole number 6 4 °
Hole number 7 11 °
Hole number 8
18 °
Hole number 9
24 °
Hole number 10 30 °
Hole number 11 35 °
Hole number 12 (rear of cabinet) 40 °

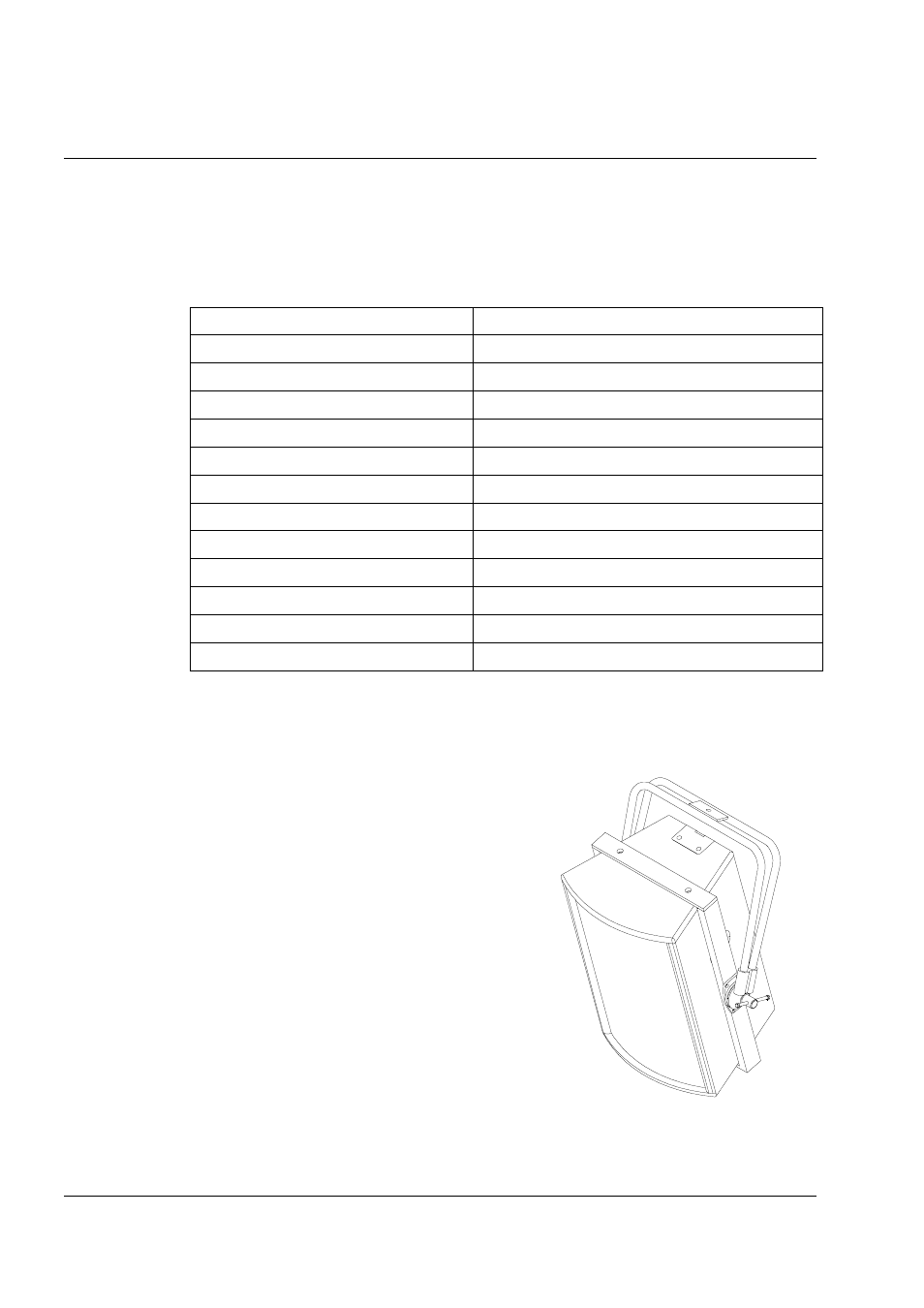

The FH The FH The FH The FH----440 440 440 440 is a complete flying frame and harness
which enables the TQ-440SP to be installed with
the maximum of security. It provides unlimited
variation of horizontal and vertical inclination, and
is very easy to re-position and angle once rigged.
