25

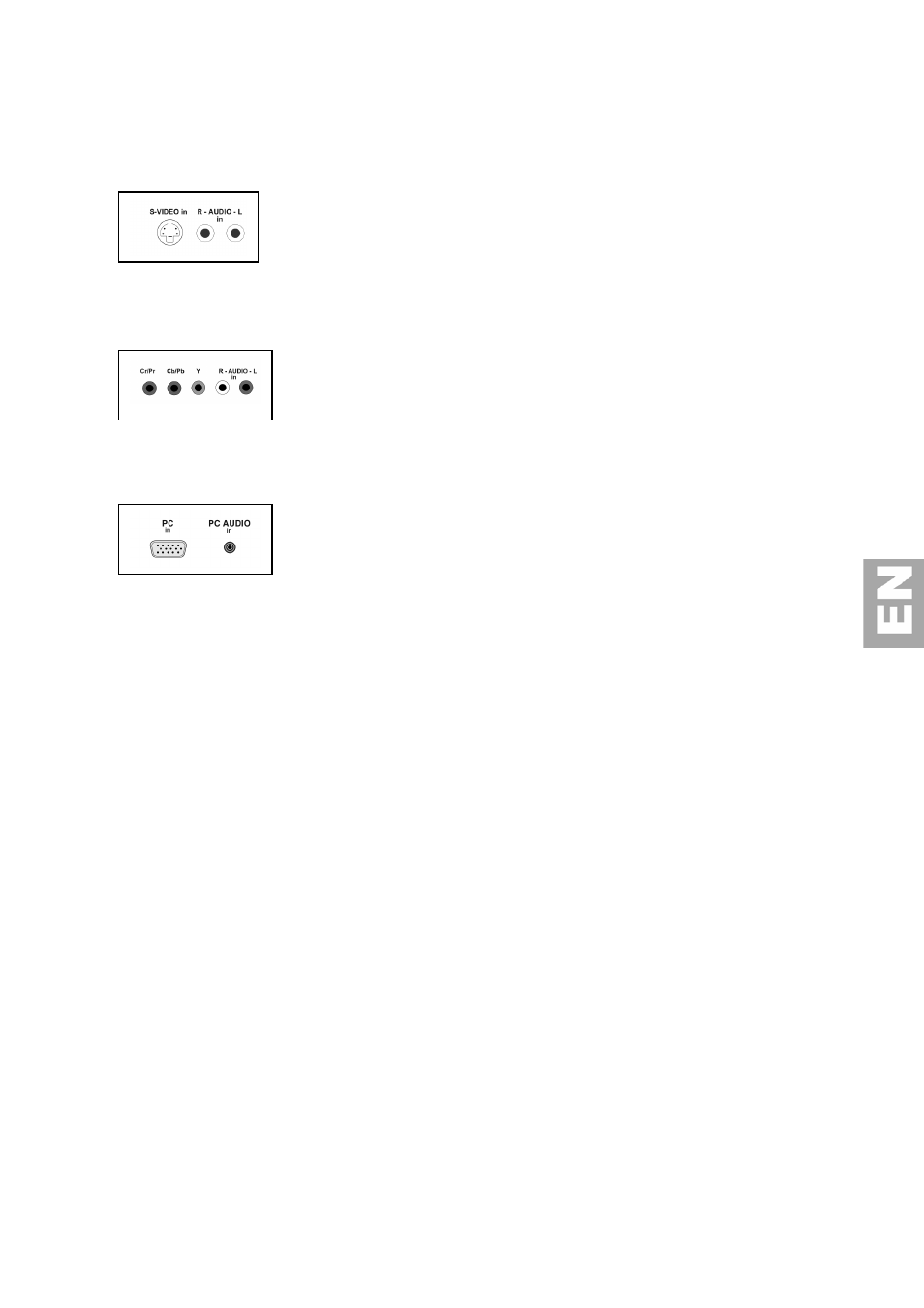

S-video socket AV3 and Audio (R/L) (input)
These can mainly be used to connect camcorders (S-VHS or Hi 8 format).
To display images from the connected appliance, select AV3 using AV button on the remote
control
CVBS and S-Video share the same L/R audio input.
YCrCb/YPrPb component and Audio (R/L) (input)
YCrCb/YPrPb is for interlacing signal and mainly beused to connect DVD player.
To display images from the connected appliance, select YCrYb/YPrPb using AV button on
the remote control.
D-Sub (for PC) and Audio (input)
LCD TV uses D-Sub (15 pin) connector for PC input.
Connect the stereo sound input jack on the back of the LCD TV (near the D-sub
connector) to the audio output terminal of equipment.
To display images from the connected appliance, select VGA using AV button on the remote
control.
Connecting active speakers or an amplifier (using a jack / CINCH cable not provided).
The audio stereo jack socket located on the back of the LCD TV set can be used to connect active speakers (with
a built-in amplifier) or an amplifier.
Connect the left and the right speaker to the stereo jack socket using a jack / CINCH cable (not provided).
To connect an amplifier, you should connect the LCD TV set’s stereo jack socket to the amplifier’s L and R inputs
using a jack / CINCH cable (not provided).
Connecting headphones
Use the relevant socket on the right side of the LCD TV set to connect headphones or stereo earphones.
