PARTS INFORMATION
TBC-230

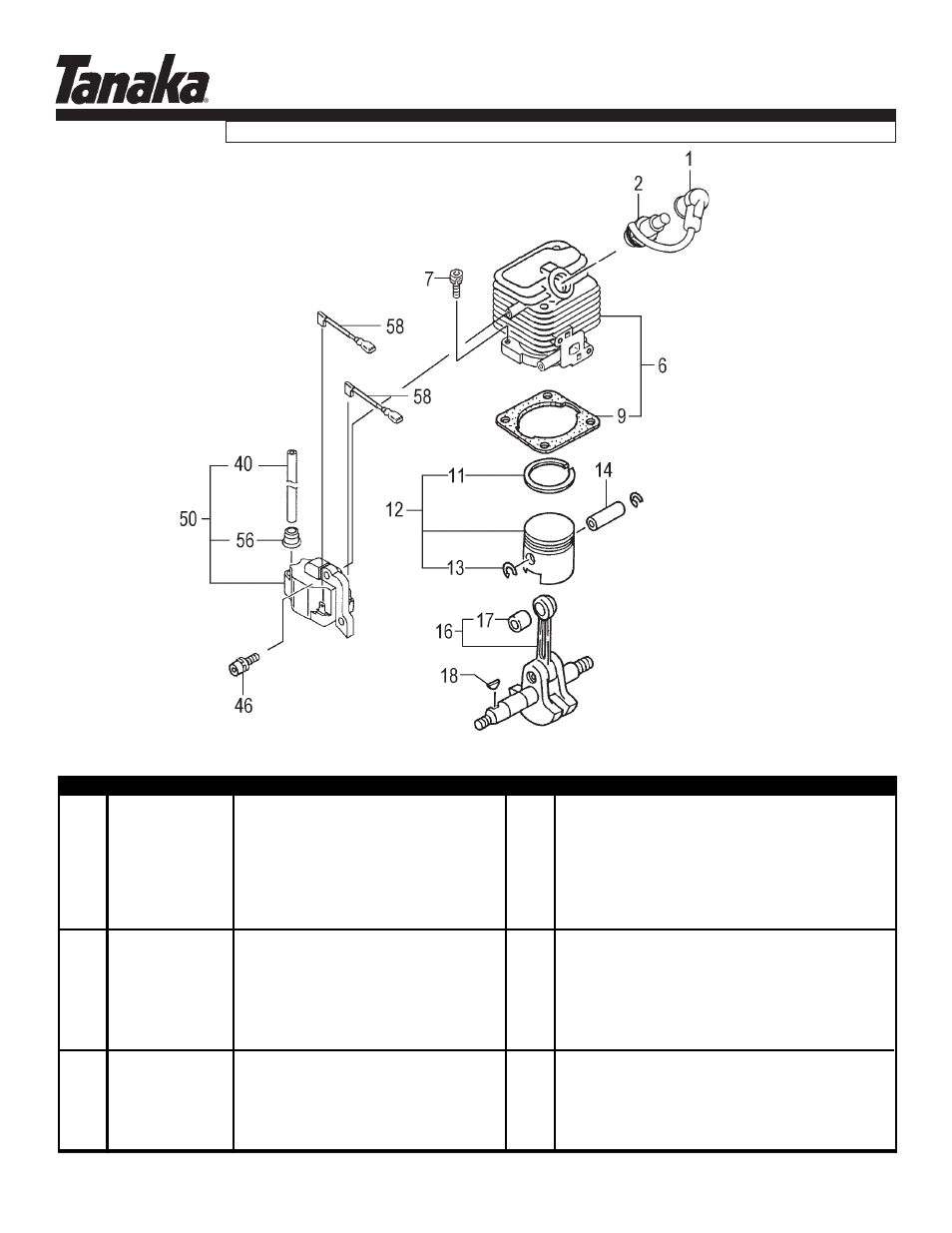

CYLINDER, PISTON, CRANKSHAFT • FIGURE 1
ITEM PART NUMBER
DESCRIPTION
QTY
COMMENTS
1-1
15701570900
CAP,SPARK PLUG,ASSEMBLY
1
1-2
0181166021
PLUG,SPARK
1
1-6
0010713091
CYLINDER SET
1
Includes gasket
1-7
99461050184
BOLT,HEX,5X18,S
2
1-9
0170631A200
GASKET,CYLINDER
1
1-11 04100601210
RING,PISTON
1
1-12 0300007090
SET,PISTON
1
Includes piston rings & circlips
1-13 03901620200
CIRCLIP,PISTON PIN
2
1-14 03706500200
PIN,PISTON
1
1-16 0460713081
CRANKSHAFT
1
~B063250
1-16 0460713580
CRANKSHAFT
1
B063251~
1-17 99962081225
BEARING,NEEDLE,F-810
1
1-18 06810100200
KEY,WOODRUFF,3X13X4.5
1
~B063250
1-40 1782054620
CORD B
1
1-46 99463040154
BOLT,HEX,4X15,PS
2
1-50 1672054691
COIL,IGNITION
1
1-56 56020517200
CAP,RUBBER
1
1-58 1780136M800
CORD,STOP
2
