2. Single Station Installation

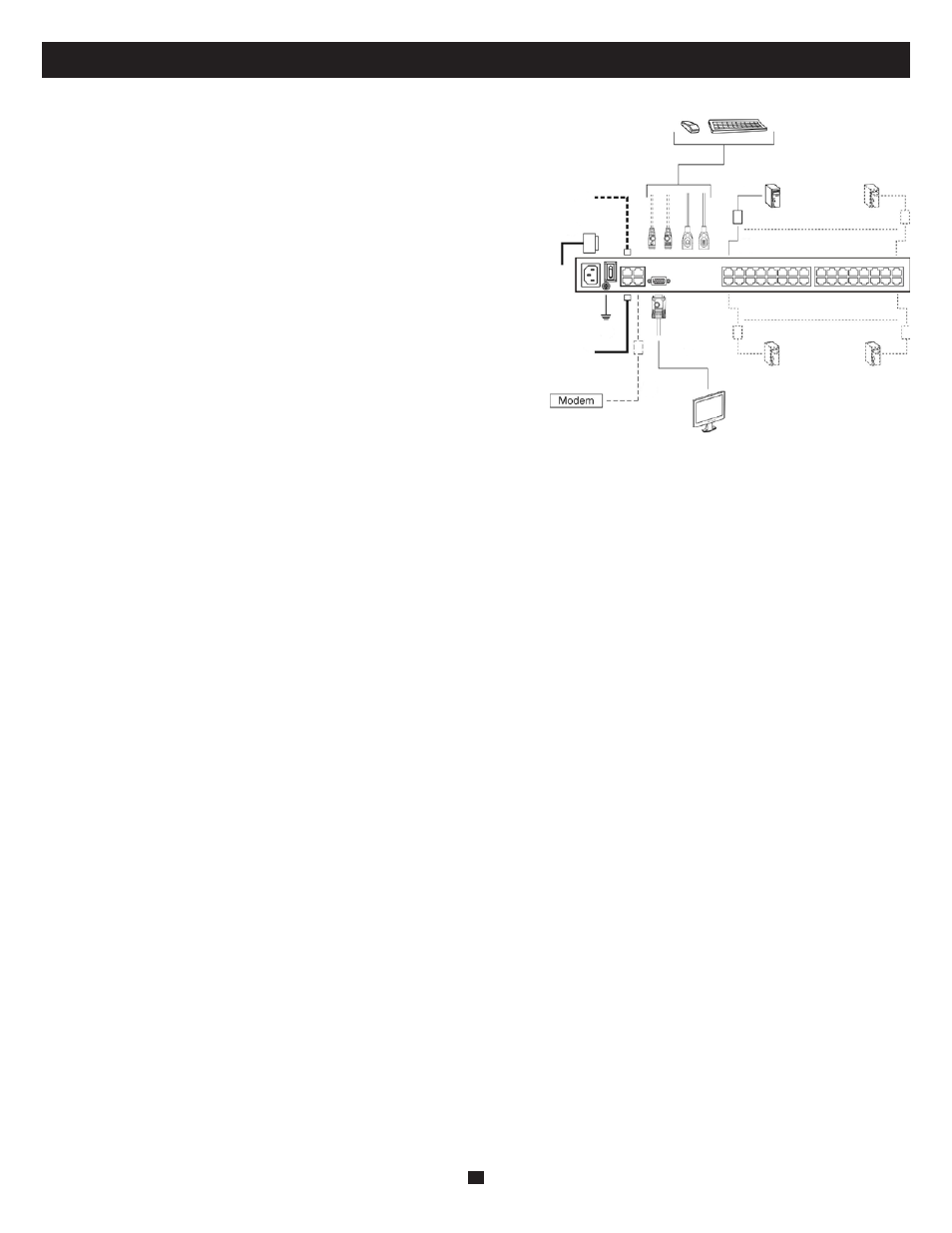

In a Single Stage installation, there are no additional KVM switches cascaded
and/or daisy-chained from the B064-Series KVM. To set up a single stage
installation, refer to the following instructions and the corresponding
installation diagrams.
Make sure that power to all the devices you will be connecting, including 1.
all pre-existing devices on the installation, have been turned off.
Optional:
2. Plug your Local Console’s keyboard, monitor, and mouse into
the KVM’s Local Console Ports. You will need to connect the included
USB – PS/2 Console Cable Kit to the console port on the back of the unit.
Note: You can use any combination of keyboard and mouse connections.
For example, you can use a PS/2 keyboard with a USB mouse. USB
keyboards and mice can plug into the USB ports on the front panel,
as well as the ports on the USB – PS/2 Console Cable Kit. The
B064-Series KVM Switch does not support distances above 65 ft.
between the KVM and the local monitor.
Use Cat5e cable to connect any available KVM port to a B054-001-PS2 3.
(for PS/2 Servers) or B054-001-USB (for USB Servers) Server Interface
Unit.
Note: The distance between the B064-Series KVM and the Server Interface
Unit must not exceed 130 ft.
Connect the Server Interface Unit to the computer/server. 4.
Connect a Cat5e cable from the network into the KVM switch’s primary network port (LAN 1). 5.
Optional: 6. Connect a second Cat5e cable from the network into the KVM switch’s backup (secondary) network port (LAN 2).
Optional Dial-In Modem Connection: 7. Use Cat5e cable to connect the KVM switch’s modem port to a RJ45 to DB9 Adapter
(included), and connect the adapter’s DB9 connector to the modem’s DB9 port.
Use the included grounding wire to ground the unit. Connect one end of the wire to the grounding terminal, and the other end of the
8.
wire to a suitable grounded object.
Plug the included power cord into the KVM switch’s Power Socket, and then into a Tripp Lite Surge Suppressor, Uninterruptible
9.
Power Supply (UPS) or PDU.
Turn on the power to the KVM switch. Once it is powered up, turn on the power to the connected computers.
10.
