TD-8841

External ADSL2+ Router User Guide

31

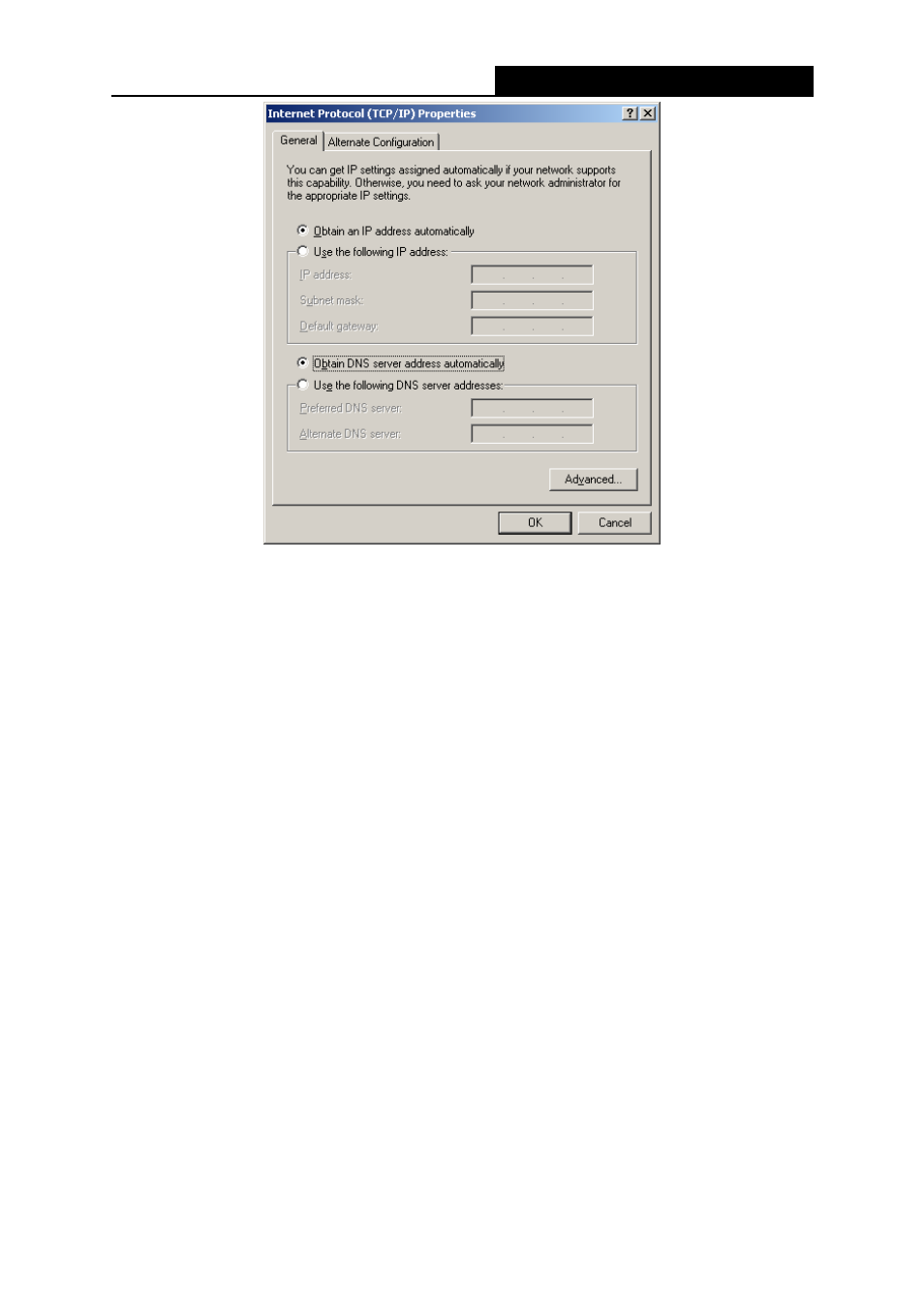

Figure B-3

¾ Setting IP address manually

1 Select

Use the following IP address radio button. And the following items available

2

If the router's LAN IP address is 192.168.1.1, type IP address is 192.168.1.x (x is from 2 to

254), and Subnet mask is 255.255.255.0.

3

Type the router’s LAN IP address (the default IP is 192.168.1.1) into the Default gateway

field.

4 Select

Use the following DNS server addresses radio button. In the Preferred DNS

Server field you can type the DNS server IP address, which has been provided by your ISP.
