Euro-AV socket connections
Euro-AV socket connections

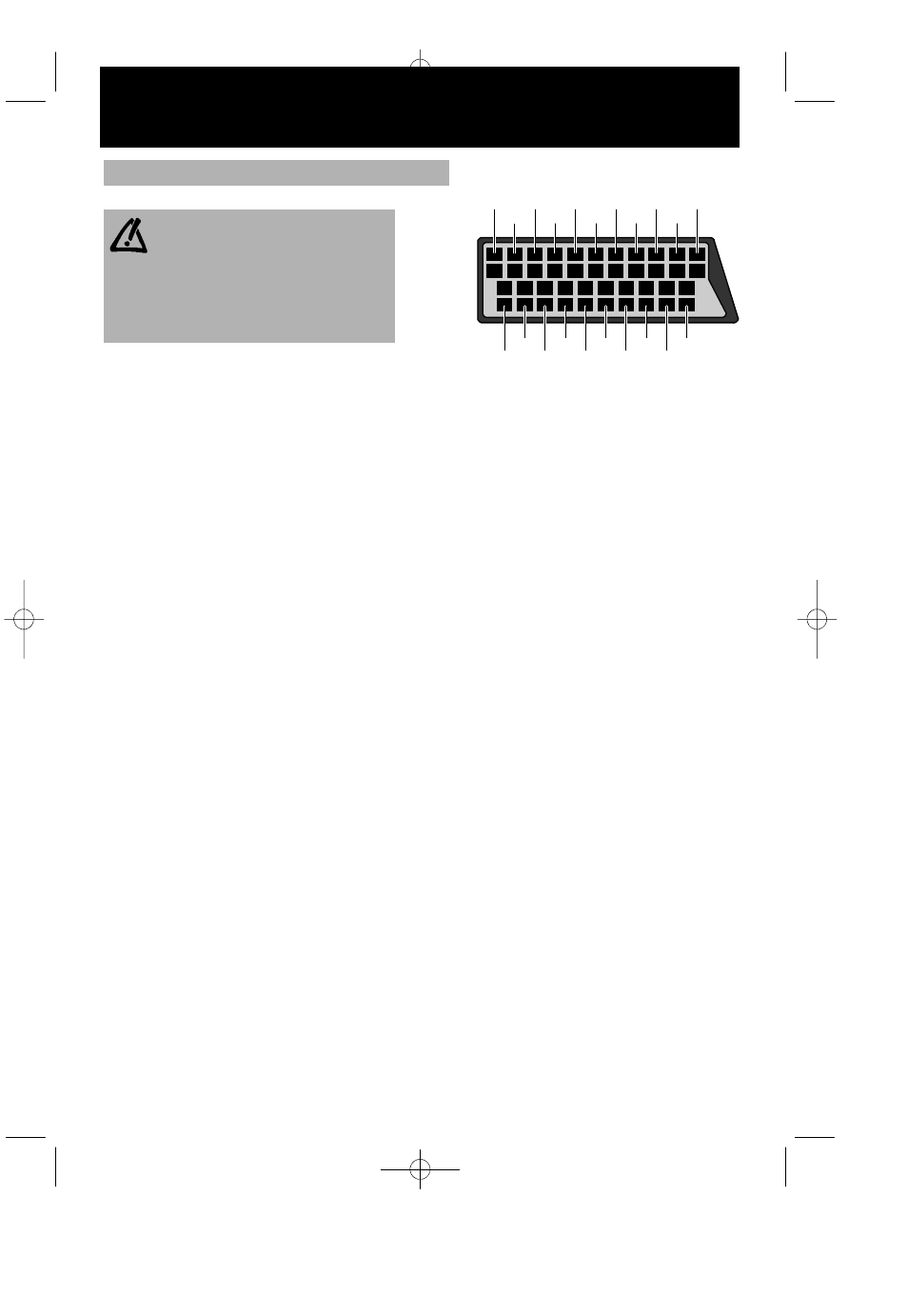

The socket is shown as viewed from the rear of the TV.
NOTE : If an unsynchronised TV
picture results after viewing
an external source (with a
fast blanking signal)
connected to AV, this
voltage must be removed to
return to TV mode.
VIDEO INPUTS
Composite video or sync: Pin 20 (pin 17 return).
RGB:
Red Pin 15 (pin 13 return).
Green Pin 11 (pin 9 return).
Blue Pin 7 (pin 5 return).
VIDEO OUTPUT
Composite video: Pin 19 (pin 17 return).
AUDIO INPUTS
A: Pin 6 (pin 4 return).
B: Pin 2 (pin 4 return).
AUDIO OUTPUTS
A: Pin 3 (pin 4 return).
B: Pin 1 (pin 4 return).
FAST BLANKING (INPUT)
Pin 16, + 1 V to + 3 V for fast blanking switching,
75 W.
SIGNAL SELECTION
Facilities are provided for automatic switching when
the equipment connected provides switching voltages
as follows:
Pin 8: + 9.5 V to + 12 V
Auto switching to auxiliary O/AUX channel.
+ 4.5 V. to 7 V. 16/9 display
Pin 16: + 1 V. to + 3 V. Auto switching to RGB.
SIGNAL LEVEL
Composite video: 1 Vp - p á 3 dB
(in/out) positive going, 75 W.
Sync: 0.3 Vp - p - 3 dB +
10 dB, negative
going, 75 W.
RGB (input): 0.7 Vp - p á 3 dB,
positive going, 75 W.
Audio (in/out): 0.5 V r.m.s.
(nominal)
Input impedance: . 10 kW.
(20 Hz - 20 kHz)
Output impedance: 3 1 kW.
(20 Hz - 20 kHz)
