TPA6102A2 Audio Power Amplifier Evaluation Module Parts List
2-6
Quick Start
2.4.2
TPA6102A2 Audio Power Amplifier Evaluation Module Parts List
Table 2–2. TPA6102A2 EVM Parts List
Ref.
Description
Size
Qty.
Manufacturer/
Part Number
Vendor/Number
C1, C2,
C4
Capacitor, 0.1
µ
F,
±
10%,
Nonpolarized, SMD
0603
1
Murata
GRM39X7R104K16
Arrow
GRM39X7R104K16
C3
Capacitor, 1
µ
F,
±
10%,
Nonpolarized, SMD
0603
1
Murata
GRM39Y5V105Z010
Arrow
GRM39Y5V105Z010
C5
Capacitor, 10
µ
F, 6.3 V,
SMD
A
1
Panasonic
ECS–TOJY106R
Digi-Key
PCS1106CT-ND
R1
Resistor, 100 k
Ω
, 1/16 W,
5%, SMD
0603
4
Panasonic
ERJ-3GSYJ104
Digi-Key
P100KGTR-ND
S1
(SHUT-
DOWN)
Switch, momentary, SMD
1
Panasonic
EVQ–PJS04K
Digi-Key
P8048SCT-ND
U1
IC, TPA6102A2DGK APA,
50 mW, 2 channel
MSOP-8
1
TI
TPA6102A2DGK
PnP Pins
Terminal post headers
11
Sullins
Digi-Key
S1022-36-ND
2.4.3
TPA6102A2 EVM PCB Layers

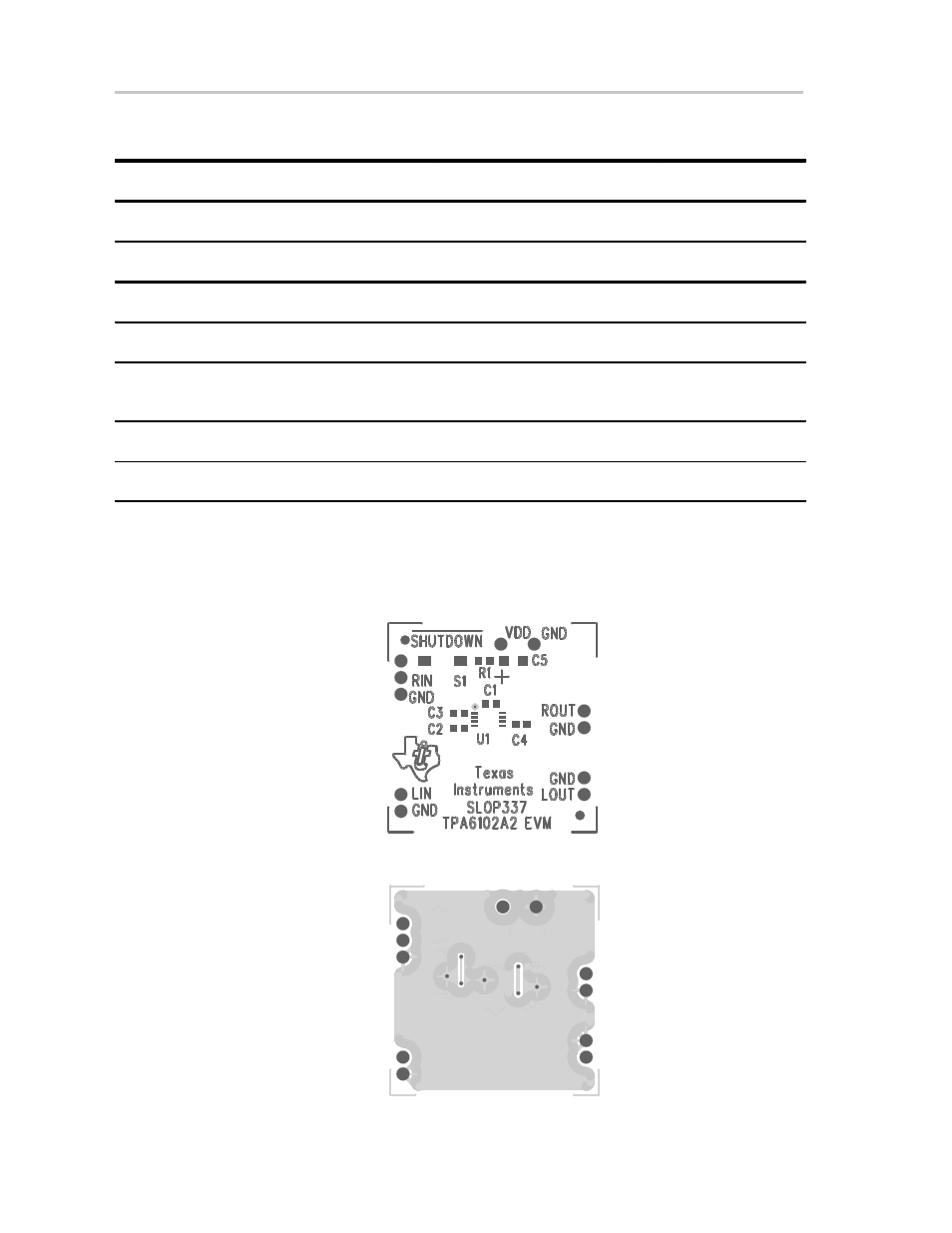

The following illustrations depict the TPA6102A2 PCB layers. These drawings
are not to scale. Gerber plots can be obtained from any TI sales office.
Figure 2–4. TPA6102A2 EVM Top Layer
Figure 2–5. TPA6102A2 EVM Bottom Layer
