High Efficiency Propeller Fan Gas Unit Heater •
GHND-SVX01A-EN
Operation

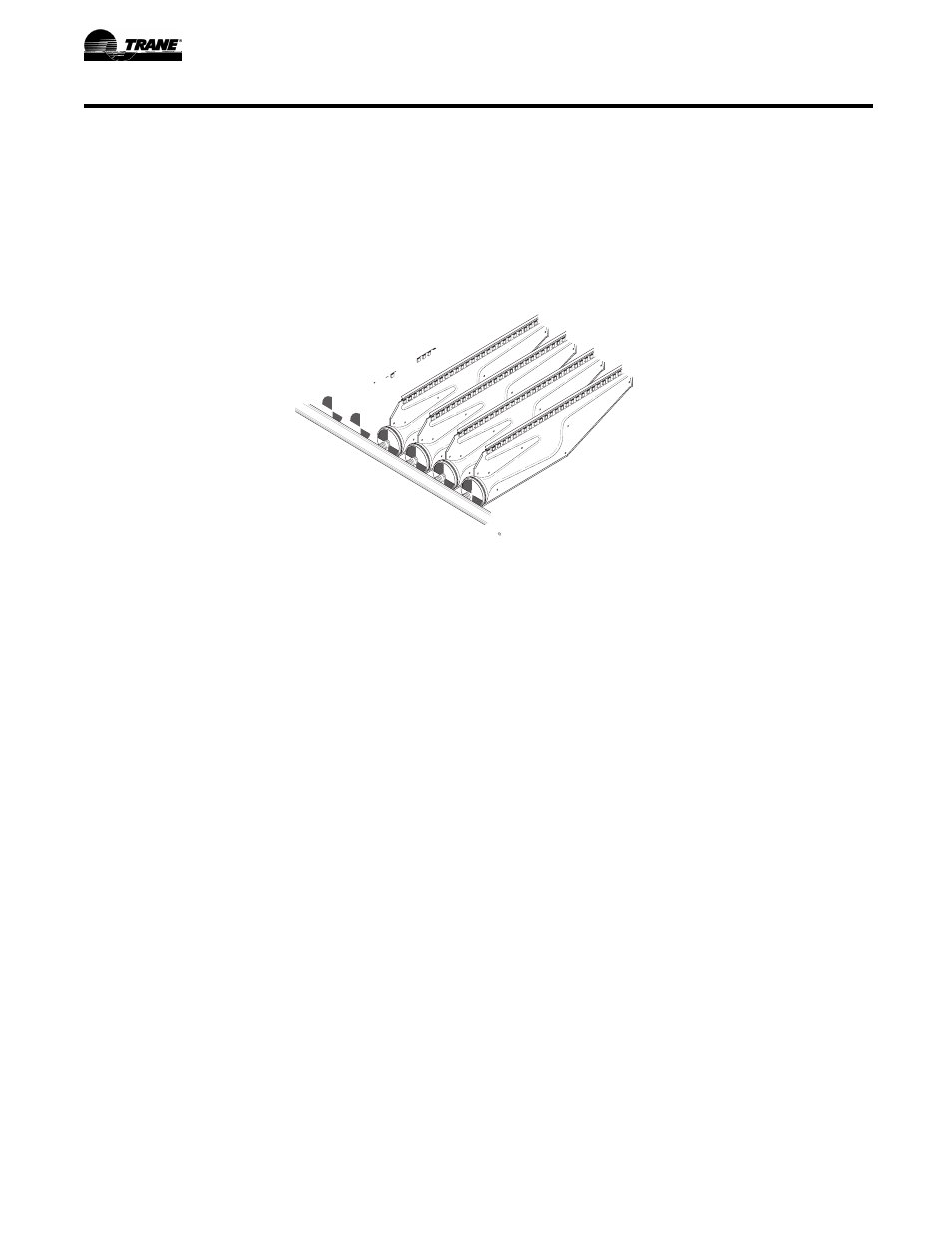

Figure 18. Burner components
BURNER DRAWER COMMON PARTS
CONTROLS:
1 Main Burners
8. Main Gas Valve (Honeywell)
2 Burner Manifold
8B. Main Gas Valve (White Rodgers)
3 Air Shutters
9 Ignitor
4 Burner Springs
10 Pilot Burner
5 Main Burner Orifice
11 High Limit, this safety device is located on the rear header
plate of the heat exchanger (air inlet side).
6 Transformer
12 Blocked Vent (Spill) Switch, this safety device is located in
the upper right corner of the right jacket panel.
7 Pilot Tubing
