Therma-Stor Products Group 200 MAX - Manual (Page 9)

9 www.thermastor.com • [email protected] Toll-Free 1-800-533-7533
Item Part No. Qty. Description
4022254 Accumulator
402475 Air Filter, Pleated, 2” x 6” x 20”
65% Merv-
2 4024682 Air Filter, Pleated, 2” x 6” x 20”
57% MERV-8 (optional)
4022489 Air Filter, Pleated, 4” x 6” x 20”
95% Mini-Pleat MERV-4 (optional)
3 4022037 Blower
4 402589 2 Capillary Tubes,
.050” ID x .4” OD x 28” long
5 4023390 Compressor Kit, Carlyle
(P/N EAA090A)
4022476 Overload, Carlyle Cprsr
(included with compressor kit)
6 402483 Cord
7 4023080 Coupling Insert, .38 Tube
8 402470 Defrost Thermostat
402648 Defrost Thermostat Mounting Clip
9 402395 Evaporator Coil
0 4020955 Filter/Drier
4024073 2 Foot
2 4026094 Handle Assembly
3 402597 Hour Meter
4 402498 Instruction Label
5 402229 Low Pressure Control
6 402796 Pump Purge Switch
7 402822 Power Switch
8 4024903 Top
Item Part No. Qty. Description
9 ***** Wheel/Axle Assembly
4026304 2 Wheel, 2”
4024904 Axle
4025454 2 E-Ring
20 4024078 Wire Duct Collar (Exhaust)
2 4025043 Skid Panel
Items listed below are not shown
22
4023649 Condensate Pump
23 402396 Condenser Coil
24 402490 Coupling Body, .25 Tube
25 402823 Defrost Timer
26 402496 Drain Hose (.25 ID x 33’ long)
27 09600 Front Panel Screw, /4-20 x
28 205473 Front Panel Retaining Nut, /4 –20
3 97000 Relay
32 402492 Run Capacitor, 35 MFD, 370 Vac
6 Service Parts
18
2
1
9
7
8
10
4
5
3
20
6
15
19
11
14
17
13 16
12

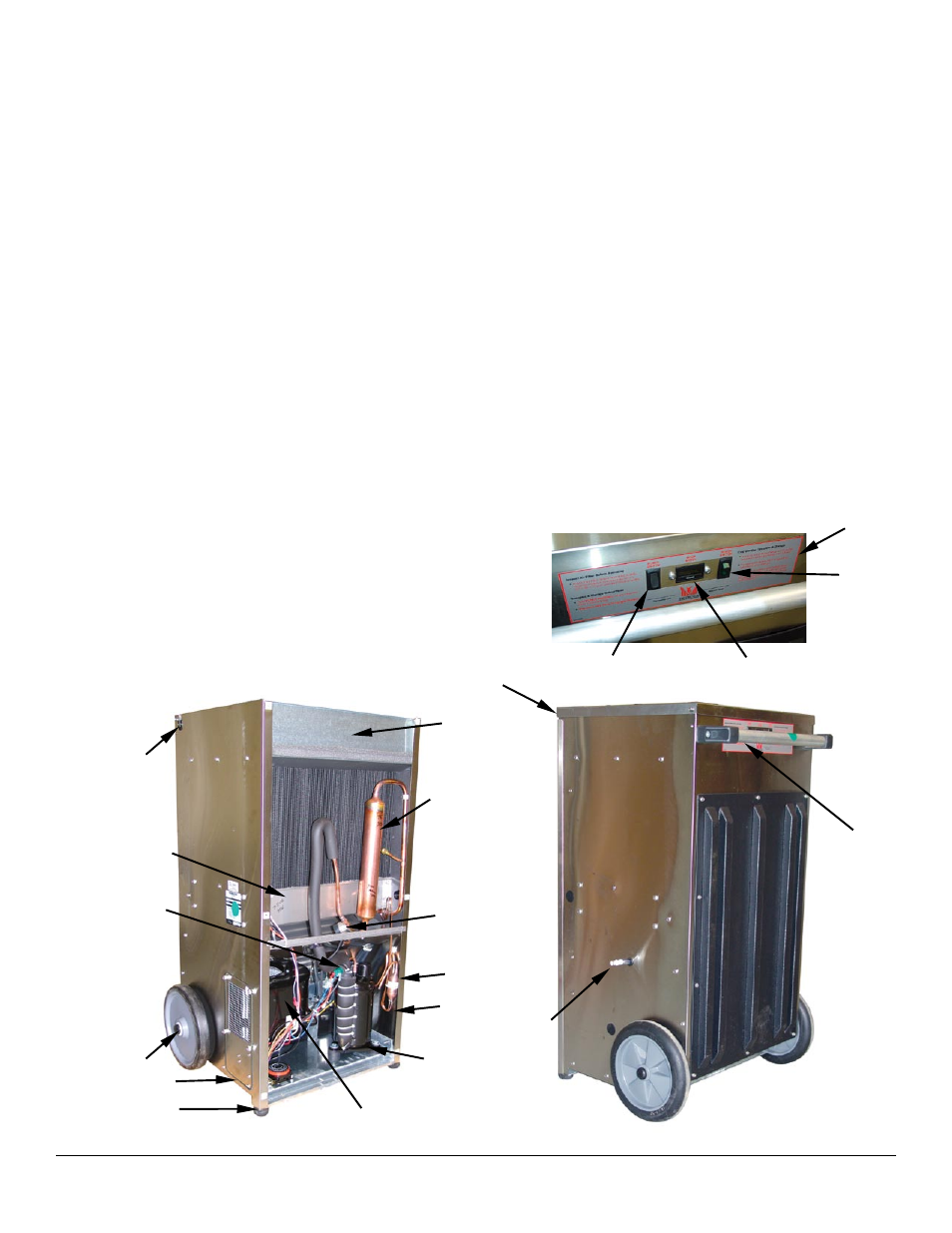

Figure 4
Specifications subject to change without notice.
