HARDWARE INSTALLATION 5
TS-ABX31
Transcend
D I M M 1 ( 6 4 / 7 2 b i t 1 6 8 p i n S D R A M M o d u l e )
D I M M 2 ( 6 4 / 7 2 b i t 1 6 8 p i n S D R A M M o d u l e )
D I M M 2 ( 6 4 / 7 2 b i t 1 6 8 p i n S D R A M M o d u l e )
COM1
AGP
PCI Slot1 (PCI1) PCI Slot4 (PCI4) PCI Slot2 (PCI2) PCI Slot3 (PCI3)
ISA Slot1 (ISA1) ISA Slot2 (ISA2)
Intel443ZX AGP Set
IntelPIIX4ChipSet
CR2032 3VLithium Cell
P r i m a r y I D E C o n n e c t o r
S e c o n d I D E C o n n e c t o r
F l o p p y C o n n e c t o r
2 M b i t F l a s h ( B I O S )
Multi-I/O
& KeyboardController
F r e q u e n c y D I P S w i t c h
PANEL
P a n e l S w i t c h
IDE1
IDE2
CASE-FAN
CPU-FAN
FDC
PCI1 PCI2 PCI3 PCI4
ISA1 ISA2
IrDA
I n f r a r e d P o r t
WOL
Wake On LAN
AGP
COMA
CMOS_CLR
HardwareMonitor
2.3 CPU Installation
The motherboard provides a ZIF Socket 370. The CPU that you bought must have a fan attached
to it to prevent overheating. If there is no fan on it, please purchase a fan before you turn on your
system.
WARNING! Be sure that sufficient air circulation is available across the processor’s pas-
sive heatsink. Without sufficient circulation, the processor could overheat and damage
both the processor and the motherboard. You may install an auxiliary fan, if necessary.

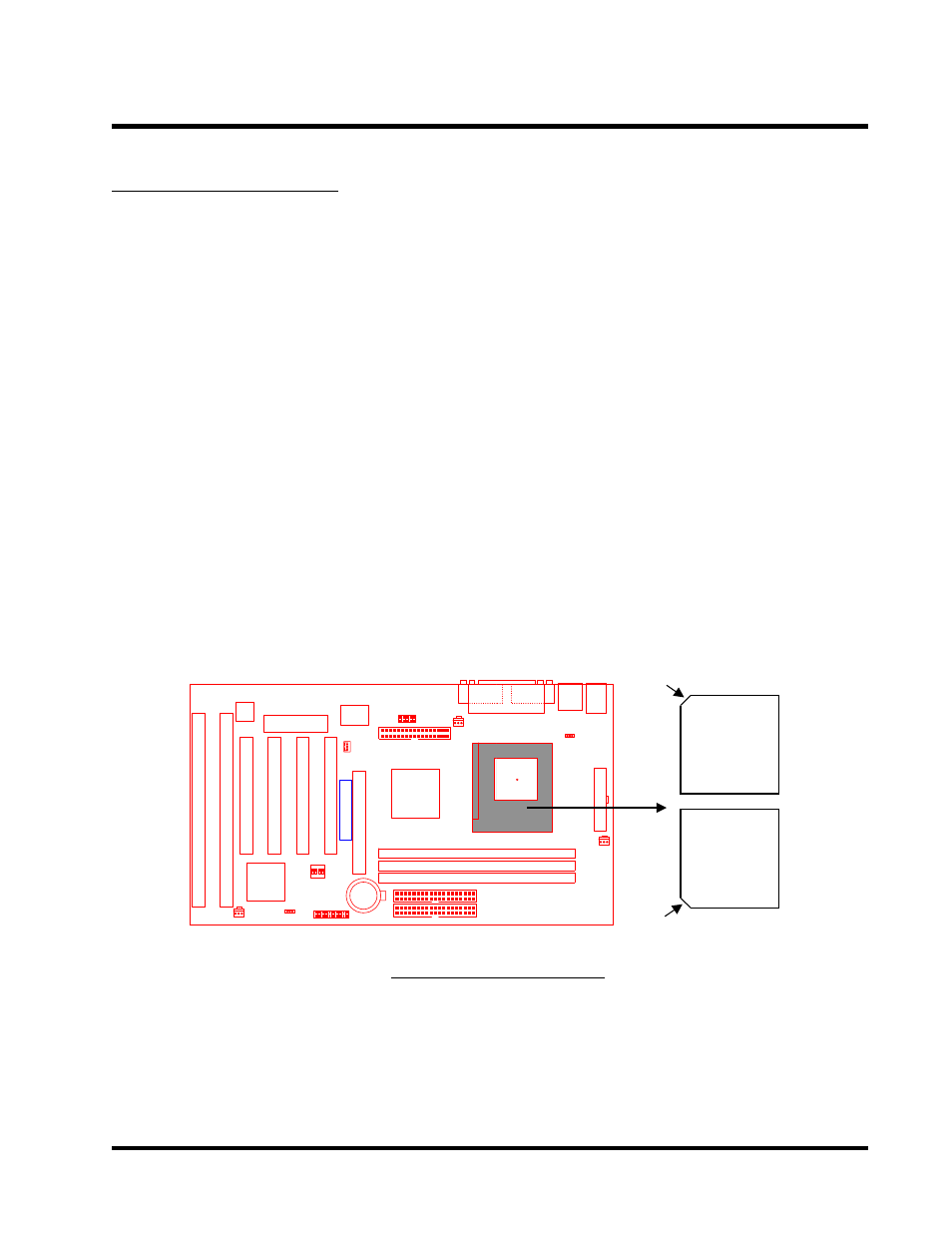

To install a CPU, first turn off your system and remove its cover. Locate the ZIF socket and open
it by first pulling the lever sideways away from the socket then upwards to a 90-degree right
angle. Insert the CPU with the correct orientation as shown below. The picture below is for refer-
ence only. You should have a CPU fan to cover the face of the CPU. With the added weight of the
CPU fan, no force is required to insert the CPU. Once completely inserted, close the socket / s
lever while holding down the CPU.
Socket 370
PS/2
T:Mouse B:Keyboard
USB
T:Port 1 B:Port 2
COM2
Printer
P a r a l l e l P o r t
ATX Power Connector
POWER-FAN
PWR-CONN
KB MOUSE USB
COMB
Thermal Sensor
KB-AWK
S o c k e t
3 7 0 C P U
(Bottom)
Notch
S o c k e t
3 7 0 C P U
(Top)
Notch
