12
Introduction
Index to parts and controls
See pages with arrows for details.

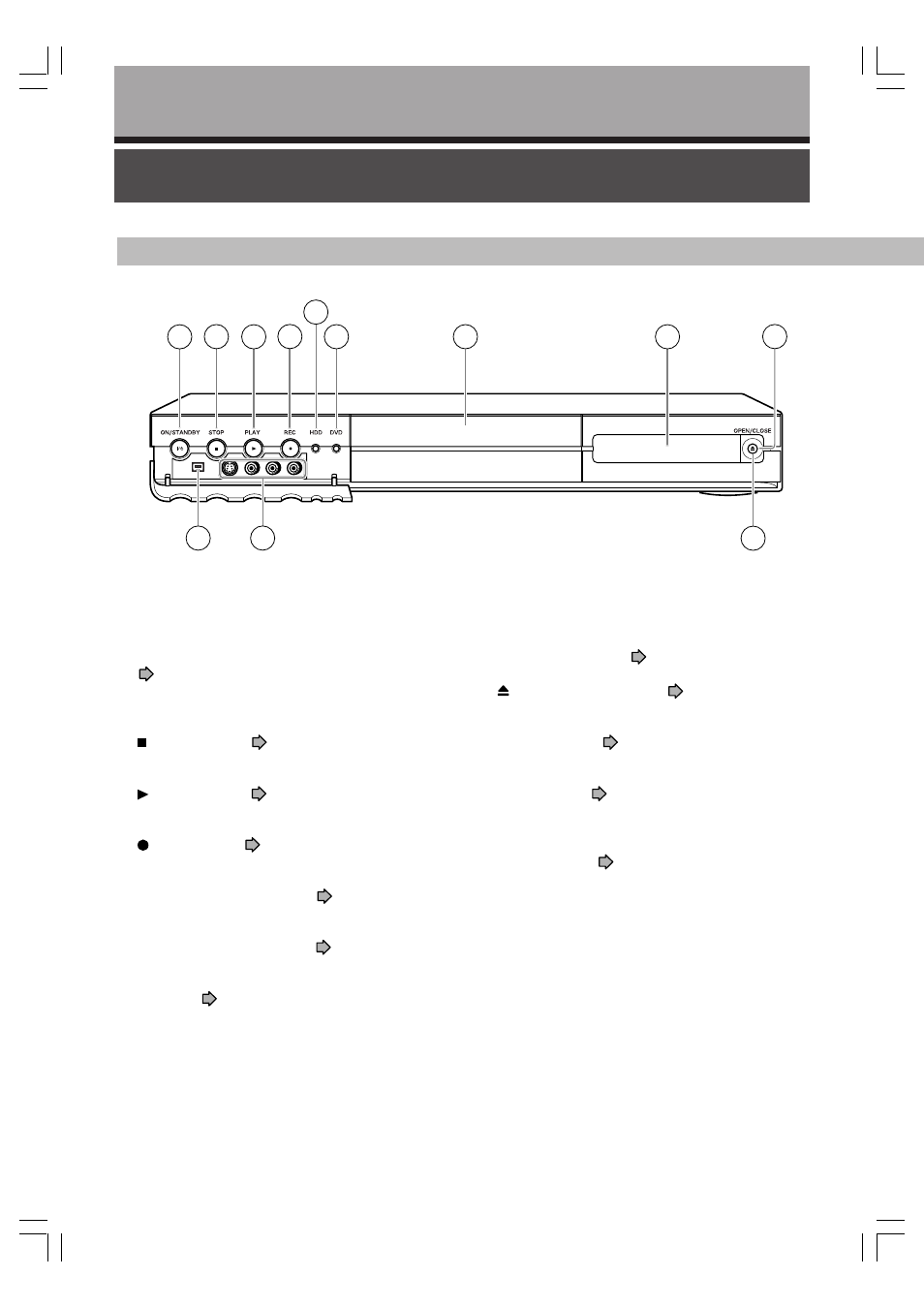

Front panel
1 2 6 4 3
5
7
10 11
8
12
9
q ON/STANDBY button / ON/STANDBY indicator
page 20
Turns the power on/restores the unit in the
standby mode.
w (STOP) button page 50, 61
Stops playback or recording.
e (PLAY) button page 66
Starts playback.
r (REC) button page 46
Starts recording.
t HDD button/HDD indicator page 45, 50
Press this to operate the HDD.
y DVD button/DVD indicator page 45, 66
Press this to operate a disc inside the disc tray.
u Disc tray page 20
Loads a disc into the disc drive.
* The above illustration displays the front panel with the cover open. See the following page on how to open or close the cover.
i Front panel display page 18
o (OPEN/CLOSE) button page 20
Opens and closes the disc tray.
!0 Remote sensor page 18 in “INSTALLATION
GUIDE”
!1 INPUT2 jacks page 49
Use this when recording from other input source
such as a VCR or a camcorder.
!2 DV IN terminal page 52
Use this when recording from a digital video
device such as a digital video camera.
