Installation:
1. Assembly the two pieces of reflector symmetrically.

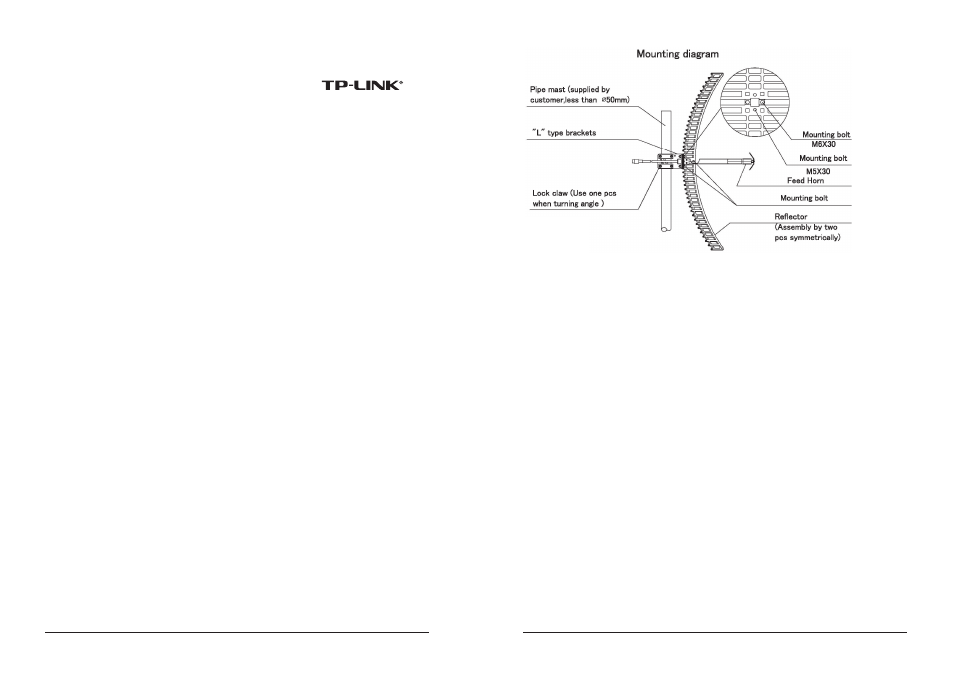

2. Mount the feed horn on the reflector according to the Mounting
diagram. Make sure the feed dipoles parallel with most bars of the grid
reflector. When the feed dipoles and most grid bars are vertical to the
ground, the antenna is vertical polarized. When the feed dipole and
most grid bars are horizontal to the ground, the antenna is horizontal
polarized.
3. Mount the “L” type bracket at the back of the reflector, then mount the
antenna on the mast supplied by customer according to the Mounting
diagram.
4. Test the antenna with equipment to make sure the antenna receive
the best signal by turning the azimuth and pitching angle, then lock all
the screws and seal the connector between antenna and cable.
