Tannoy Sensys R User Manual
Page 12
LINKS REMOVED
ON AMPLIFIER (OPTIONAL)
TO 'GROUND' OR
'EARTH' CONNECTION
POWER AMPLIFIER
L
+
-
R
+
-
SPEAKER
TO RIGHT
12

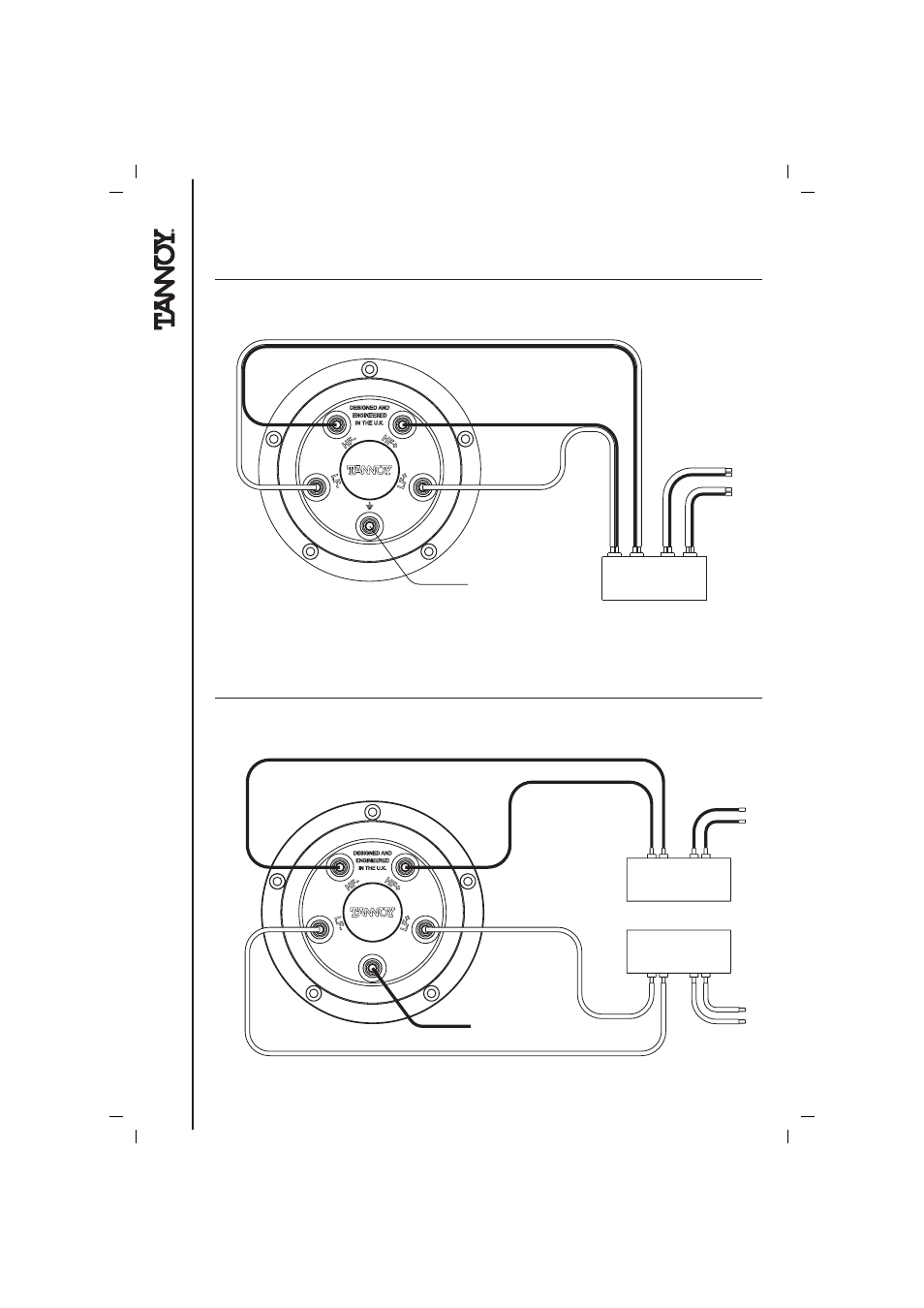

Fig 8: Bi-Wire Mode - Sensys DC Models
Fig 9: Bi-Amp Mode - Sensys DC Models
TO 'GROUND' OR
ON AMPLIFIER (OPTIONAL)
'EARTH' CONNECTION
SPEAKER
TO RIGHT
TO RIGHT
SPEAKER
POWER AMPLIFIER
LOW FREQUENCY
+ -
L
-
+
R
POWER AMPLIFIER
HIGH FREQUENCY
-
+
L
+ -
R
LINKS REMOVED
