Page 2: Figure 1 front and rear view front view rear view
System Configuration
Figure 2 illustrates the typical system configura-
tion using the UAD4.
Figure 3 illustrates an arrangement where two
splitters have been cascaded. By connecting one
of the outputs of the first splitter to the antenna
inputs of the second splitter, three additional re-
ceivers may be driven by a single pair of anten-
nas.
SPECIAL NOTE: In any system, unused split
-
ter outputs should be terminated with a 50 ohm
“dummy load”. See the accessories listing at the
end of this manual.
-2-
INPUT A
OUTPUT A
1
2
3
4
OUTPUT B
1
2
3
4
INPUT B
POWER
90-260 VAC 50-60 Hz
POWER OUT
1
2
3
4
15 VDC
POWER
Telex
UAD4
ANTENNA
SPLITTER

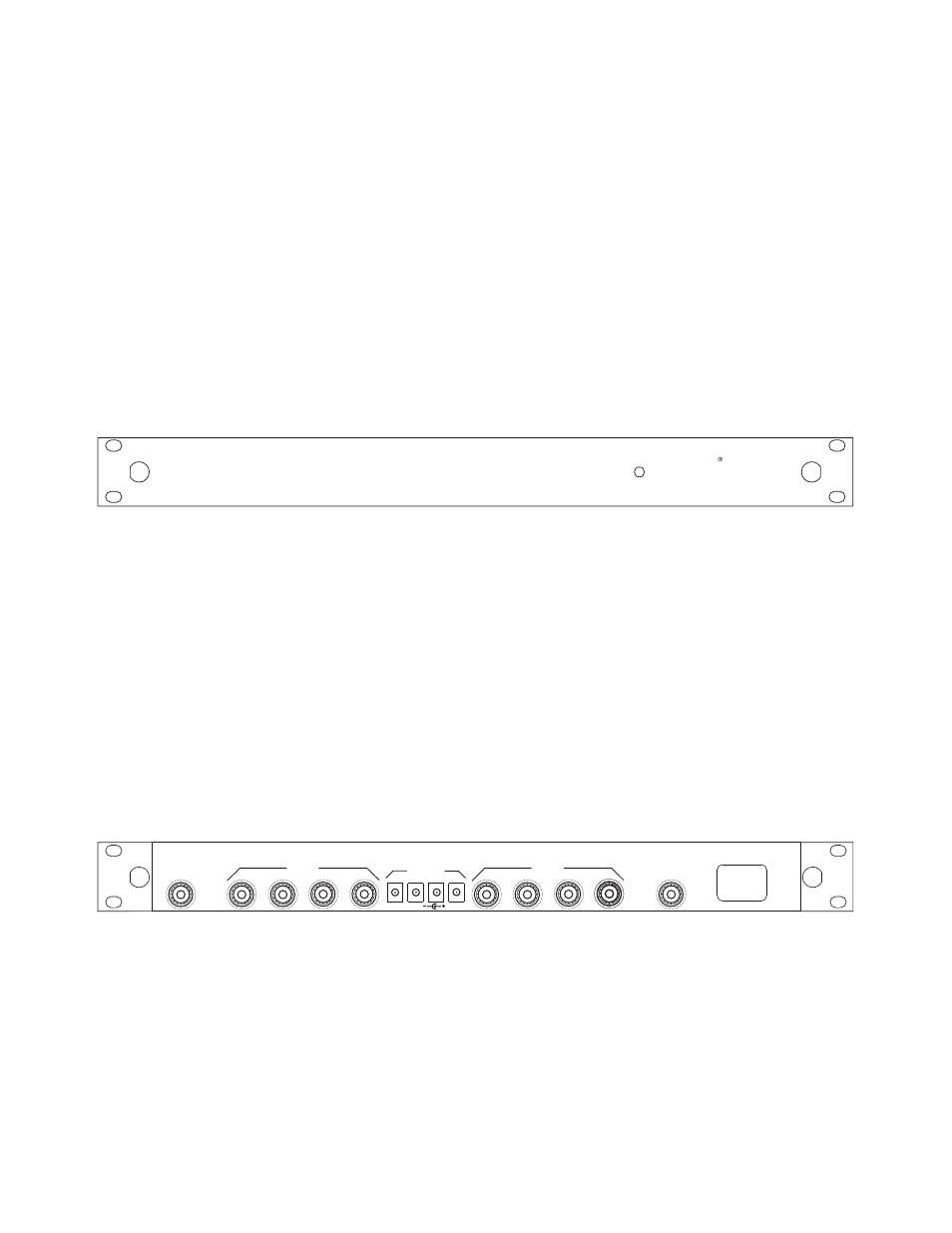

Figure 1
Front and Rear View
Front View
Rear View
