Owner’s Manual AST-210,AST-5000

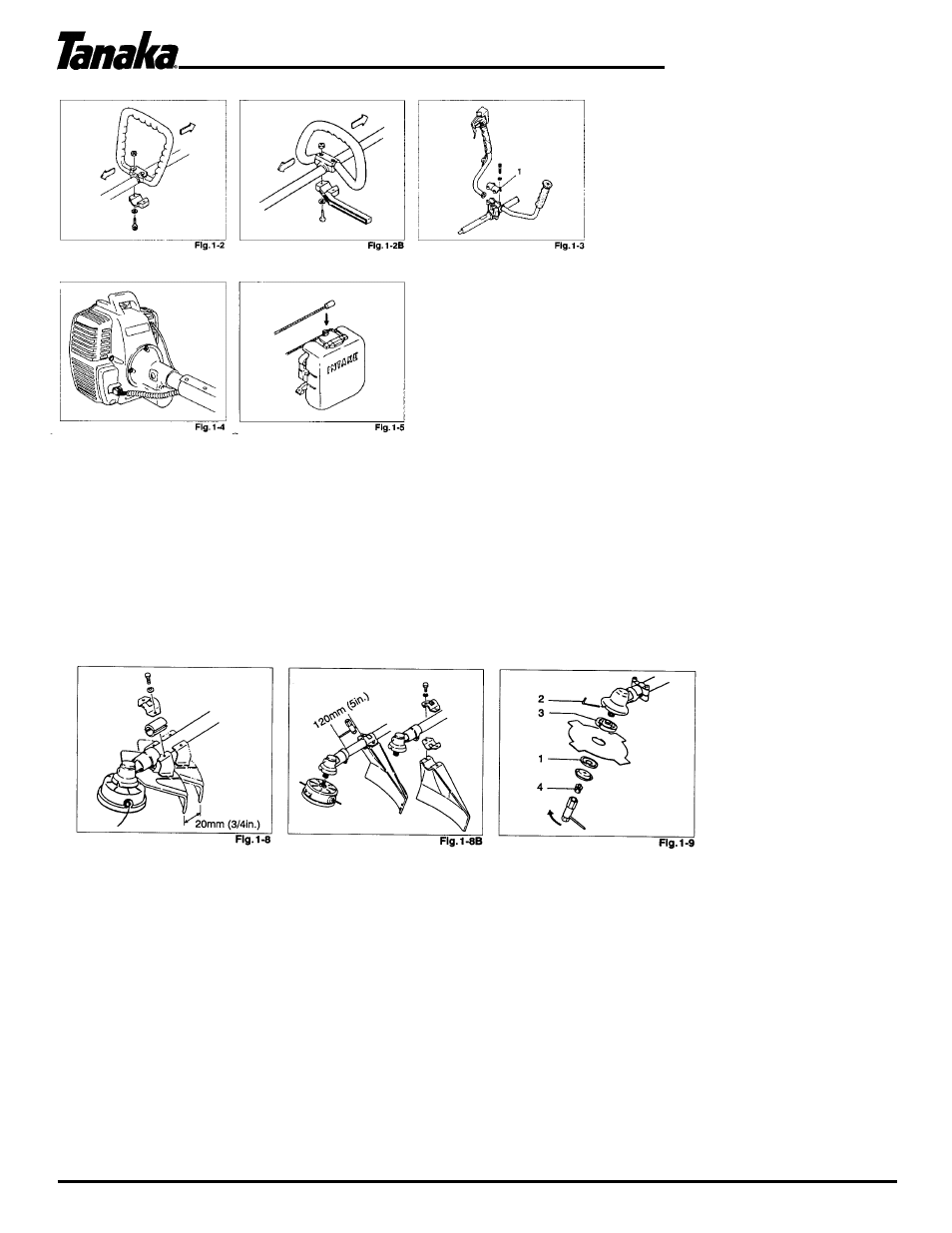

Throttle wire/stop cord (AST-210)
Connect stop cord connectors. (Fig. 1-4)
Connect throttle wire end to carburetor. (Fig. 1-5)
Installation of handle (Fig. 1-2, 2B)
Attach the handle to the drive shaft tube with the angle
towards the engine.
Adjust the location to the most comfortable position before
operation.
Remove the handle bracket (1) from the assembly. (Fig. 1 -3)
Place the handles and attach the handle bracket with four bolts lightly. Adjust to appropriate position. Then fix it
firmly with the bolts.
CAUTION!
Some blade guards are equipped with sharp line limiters. Be careful when handling it.
Installation of blade guard (Fig. 1-6, 6B, 6C)
Install the blade guard on the drive shaft tube against the gear case.
Tighten the guard bracket firmly so that the blade guard does not swing or move down during operation.
CAUTION!
Do not attempt to install metal blade on AST-5000, curved shaft trimmer. It is very dangerous.
