Troy-Bilt YM1500 - Manual (Page 2)

Issued 12/02

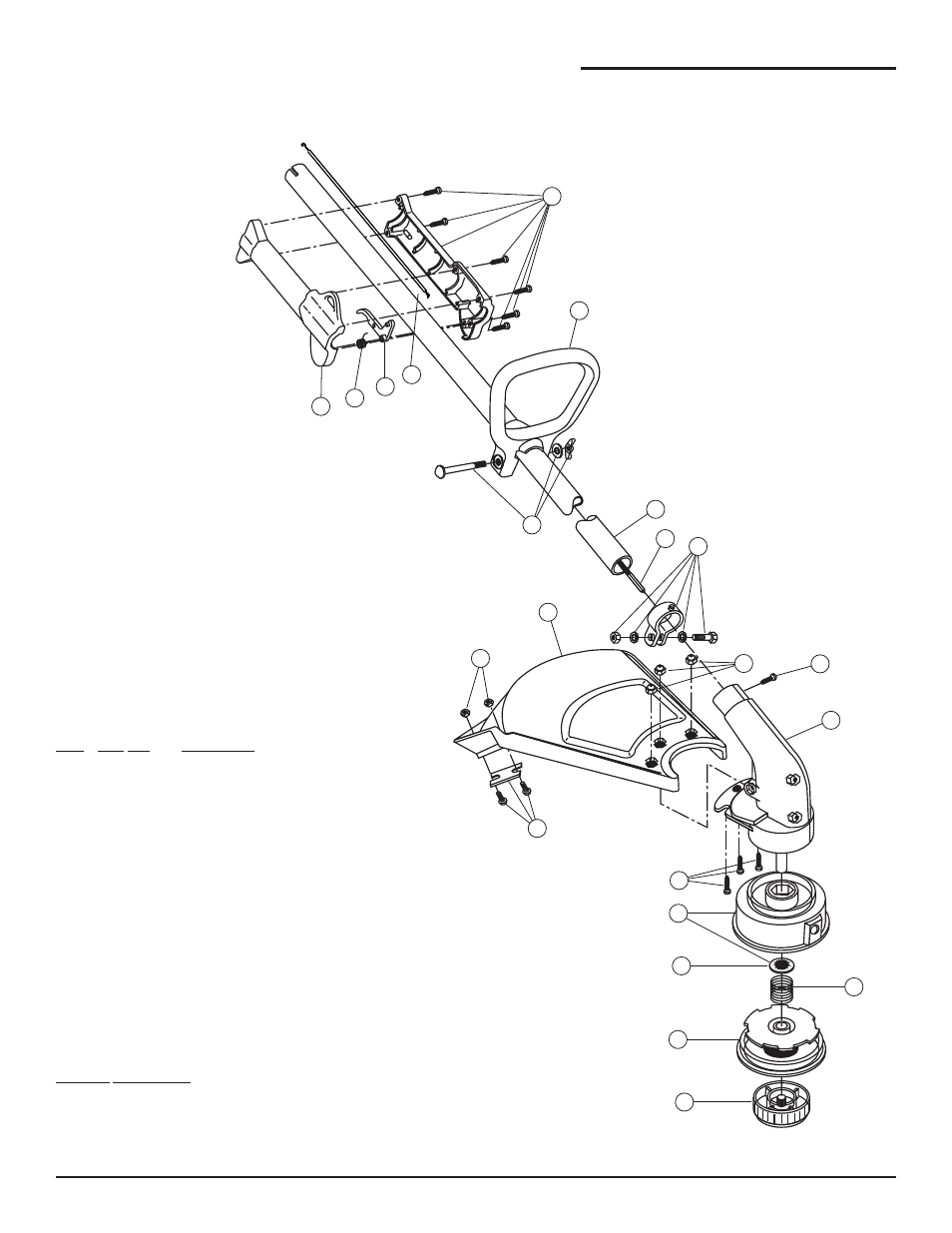

BOOM AND TRIMMER PARTS - MODEL YM1500
2-CYCLE GAS TRIMMER
PPN 41BDY15G401
Item Part No. Description
1 753-04294 Throttle Housing & Trigger Assembly
(includes 2 & 3)
2 791-610314 Throttle Trigger Spring
3 753-04295 Throttle Trigger
4 791-182068 Throttle Cable Assembly
5 791-153064 D-Handle (includes 6)
6 791-153317 D-Handle Hardware
7 753-04330 Drive Shaft Housing Assembly
8 791-182839 Flexible Drive Shaft
9 791-153597 Lower Clamp Assembly (includes 13)
10 791-180547 Guard Mounting Screw Assembly
11 791-180548 Guard and Blade Assembly (includes 12)
12 791-180553 Blade Assembly
13 791-145569 Anti-Rotation Screw
14 791-180549 Gearbox Assembly (includes 15)
15 791-153619 Outer Spool and Eyelet Assembly
16 791-610660 Retainer
17 791-610317 Spring
18 791-610318 Inner Reel
19 791-153066 Bump Head Knob Assembly
Optional Accessories
* 791-610375 Cutting Line (50 ft)
* 791-153577 Spool and Line (25 ft) Assembly
* 791-682075 Shoulder Strap Assembly
* not shown
1
1
2
3
4
5
6
7
8
9
12
11
10 13
14
12
10
15
16
17
18
19
