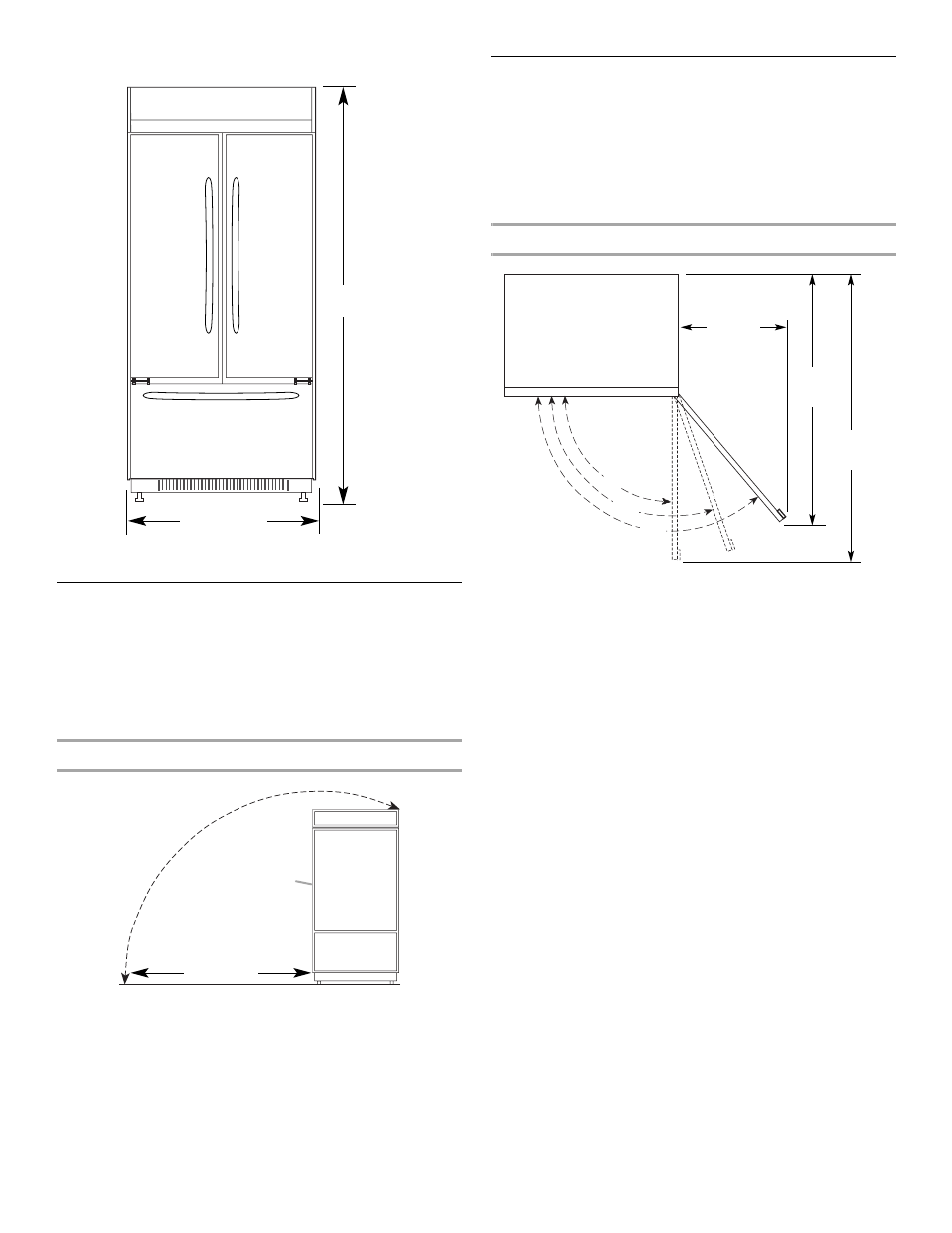

42" (106.7 cm) Models
*When leveling legs are fully extended to 1
¹⁄₄" (3.2 cm) below
rollers, add 1
¹⁄₈" (2.9 cm) to the height dimensions.
T i p p i n g R a d i u s
Be sure there is adequate ceiling height to stand the refrigerator
upright when it is moved into place.
■
The dolly wheel height must be added to the tipping radius
when a dolly is used.
■
If needed, the tipping radius can be reduced. See “Reduce
Tipping Radius.”
Side Tipping Radius
D o o r S w i n g D i m e n s i o n s
The location must permit the door to open to a minimum of 90°.
Allow 4
¹⁄₂" (11.4 cm) minimum space between the side of the
refrigerator and a corner wall.
NOTE: More clearance may be required if you are using overlay
panels, custom handles, or extended handles on a Classic
model.
To adjust the door swing, see “Adjust Doors.”
36" (91.4 cm) Models
A. Tip this side only
42
¹⁄₄
" (107.3 cm)
*83
³⁄₈
"
(211.8 cm)
90
¹⁄₂
"
(229.9 cm)
A
110˚
90˚
23"
(58 cm)
51"
(130 cm)
59"
(150 cm)
130˚
